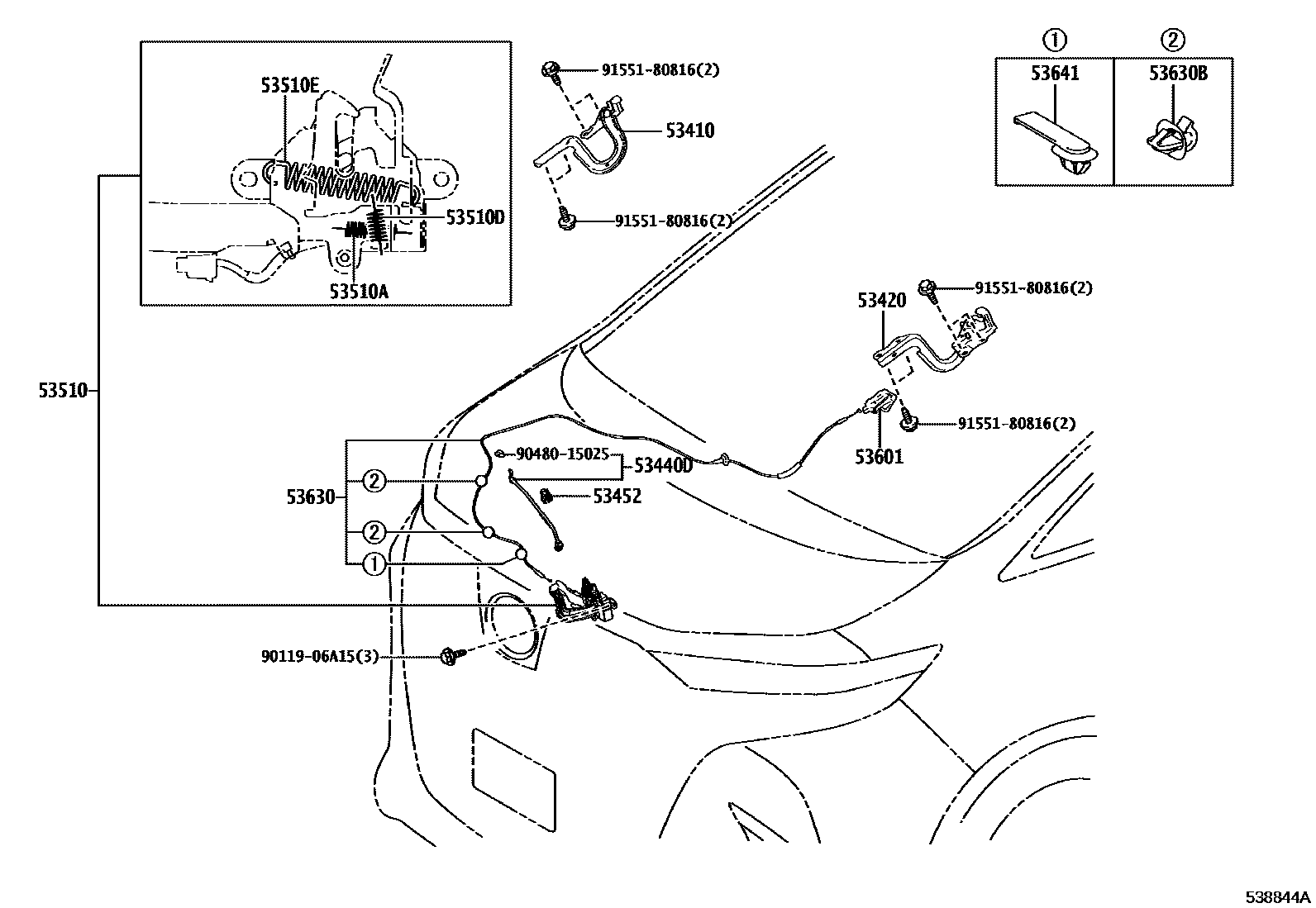

Toyota ALPHARD/VELLFIRE — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-V2020iAAHH4#,AAHP45,AGH4#,TAHA4#¥1,700202306

53420HINGE ASSY, HOOD, LH

main53420-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥1,700202306

53440DSUPPORT ASSY, HOOD

main53440-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥820202306

53452HOLDER, HOOD STAY

main53452-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥350202306

53510LOCK ASSY, HOOD

main53510-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,930202306

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAAHH4#,AAHP45,AGH4#,TAHA4#¥90202306

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAAHH4#,AAHP45,AGH4#,TAHA4#¥90202306

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAAHH4#,AAHP45,AGH4#,TAHA4#¥90202306

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main53601-30100-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#,4#

main53601-30100-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main53601-30100-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS,Z)202501

BLACK,TRIM2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥990202306

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iAAHH4#,AAHP45,AGH4#,TAHA4#¥80202306

53641CLAMP, HOOD LOCK CONTROL WIRE

main82711-12A80iAAHH4#,AAHP45,AGH4#,TAHA4#¥70202306

9011906A15

main90119-06A15¥60

9048015025

main90480-15025¥220

9155180816

main91551-80816¥80

15 parts on this diagram · 1 diagram in section
