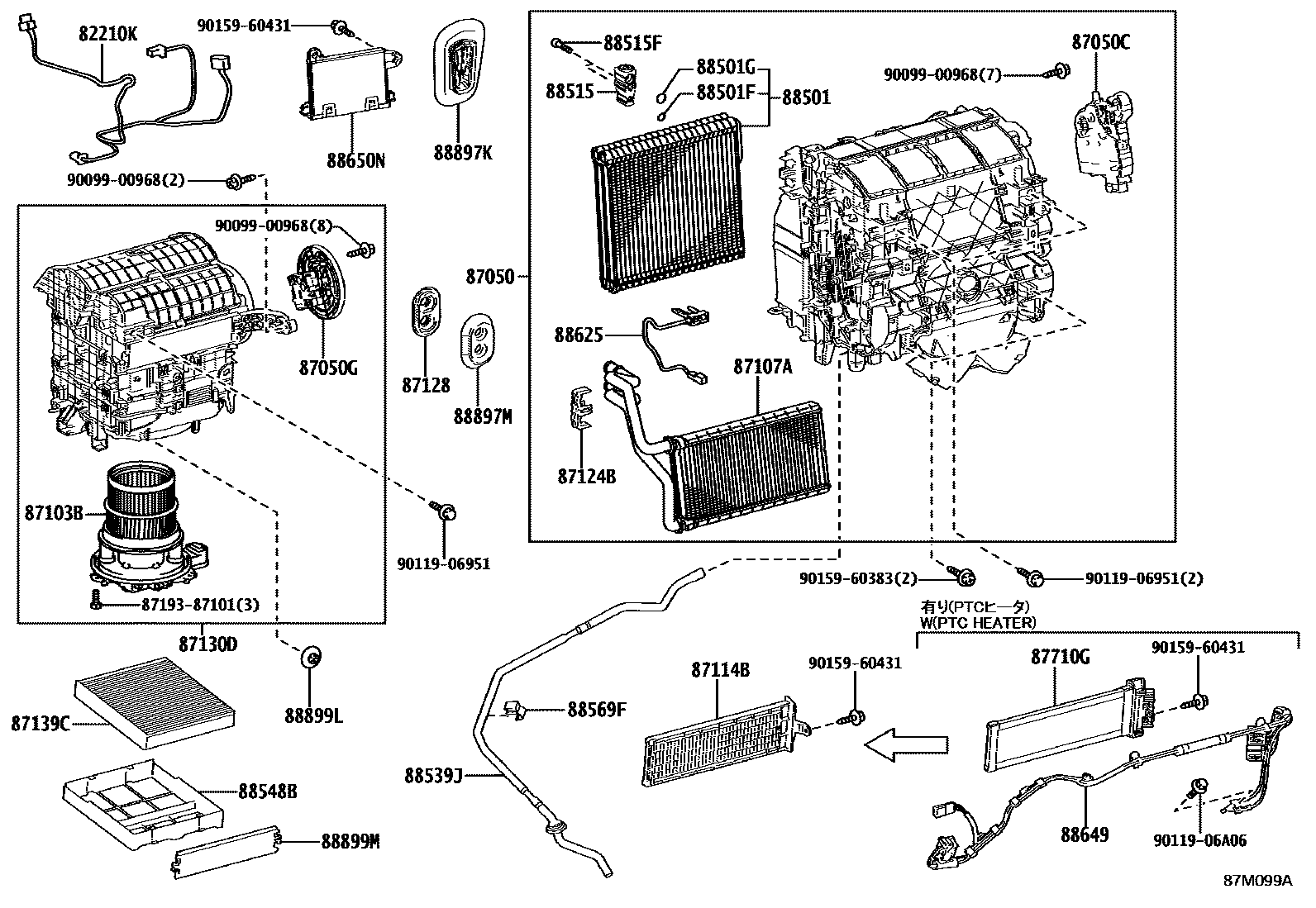

Toyota ALPHARD/VELLFIRE — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1���� 0003 1���� 0004 1���� 0005 1���� 0006 1�� 0007 1�� 0008 1�� 0009 1�� 0010 1�� 0011 1��������� 0012 1��������� 0013 1��������� 0014 1��������

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33210iAAHH4#,AAHP45,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z202306

main82212-V2040iAAHH4#,AGH4#..G,X202306

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48B00iAAHH4#,AAHP45..EL,PREM,SL,SLS,Z¥88,500202306

main87050-V2110iAGH4#..G,X¥78,400202306

main87050-V2130iAAHH4#..G,X¥76,300202306

main87050-V2140iAGH4#..PREM,Z¥84,800202306

main87050-V2150iTAHA4#¥78,100202306

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-42240iAGH4#,TAHA4#202306

main87106-48170iAAHH4#,AAHP45202306

87050GDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

main87106-28250iAAHH4#,AAHP45¥0202306

main87106-33330iAGH4#,TAHA4#202306

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-58060iAGH4#,TAHA4#202306

main87103-58070iAAHH4#,AAHP45¥0202306

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33140iAAHH4#,AAHP45,AGH4#,TAHA4#202306

87114BCOVER, HEATER

main87114-33050iAAHH4#,AGH4#,TAHA4#202306

87124BCLAMP, HEATER

main87124-33070iAAHH4#,AAHP45,AGH4#,TAHA4#¥0202306

87128GROMMET, HEATER

main87128-28010iAAHH4#,AAHP45,AGH4#,TAHA4#¥400202306

87130DBLOWER ASSY

main87130-33290iAGH4#,TAHA4#202306

main87130-47300iAAHH4#,AAHP45¥0202306

87139CFILTER, CLEAN AIR

main87139-76020iAAHH4#,AAHP45,AGH4#,TAHA4#¥4,000202306

87710GQUICK HEATER ASSY

main87710-58010iAAHP45202501

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33350iAAHH4#,AAHP45202306

main88501-33360iAGH4#202306

main88501-42110iTAHA4#202306

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iAAHH4#,AAHP45,AGH4#,TAHA4#¥0202306

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88515VALVE, COOLER EXPANSION

main88515-58050iAAHH4#,AAHP45,AGH4#,TAHA4#¥6,300202306

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iAAHH4#,AAHP45,AGH4#,TAHA4#¥120202306

88539JHOSE, DRAIN COOLER

main88539-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88548BCASE, AIR FILTER

main88899-76020iAAHH4#,AAHP45202306

88569FCLAMP

main88718-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88625THERMISTOR, COOLER, NO.1

main88620-28050iAAHH4#,AAHP45,AGH4#¥0202306

main88620-28060iTAHA4#202306

88649WIRING, COOLER, NO.2

main88649-V2010iAAHP45202501

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-V2010iAAHH4#,AGH4#..G,X202306-202312

sub886H0-V2011

main886H0-V2011iAAHH4#,AGH4#..G,X202401

main886H0-V2020iAAHH4#,TAHA4#..EL202306-202312

main886H0-V2021iAAHH4#,TAHA4#..EL,SL,SLS202401

main886H0-V2030iAAHH4#,AGH4#,TAHA4#..PREM,Z202306-202312

sub886H0-V2031

main886H0-V2031iAAHH4#,AGH4#,TAHA4#..PREM,Z202401

main886H0-V2060iAAHP45..EL,SL,SLS202501

main886H0-V2070iAAHP45..PREM,Z202501

88897KGROMMET, (FOR COOLER PIPE)

main88899-33080iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88897MGROMMET (FOR HEATER PIPE)

main87128-33020iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88899LPARTS, COOLING UNIT

main88899-52160iAAHH4#,AAHP45,AGH4#,TAHA4#¥310202306

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iAAHH4#,AAHP45,AGH4#,TAHA4#¥0202306

8719387101

main87193-87101¥0

9009900968

main90099-00968

9011906951

main90119-06951¥80

9011906A06

main90119-06A06¥60

9015960383

main90159-60383¥70

9015960431

main90159-60431¥70

33 parts on this diagram · 14 diagrams in section
