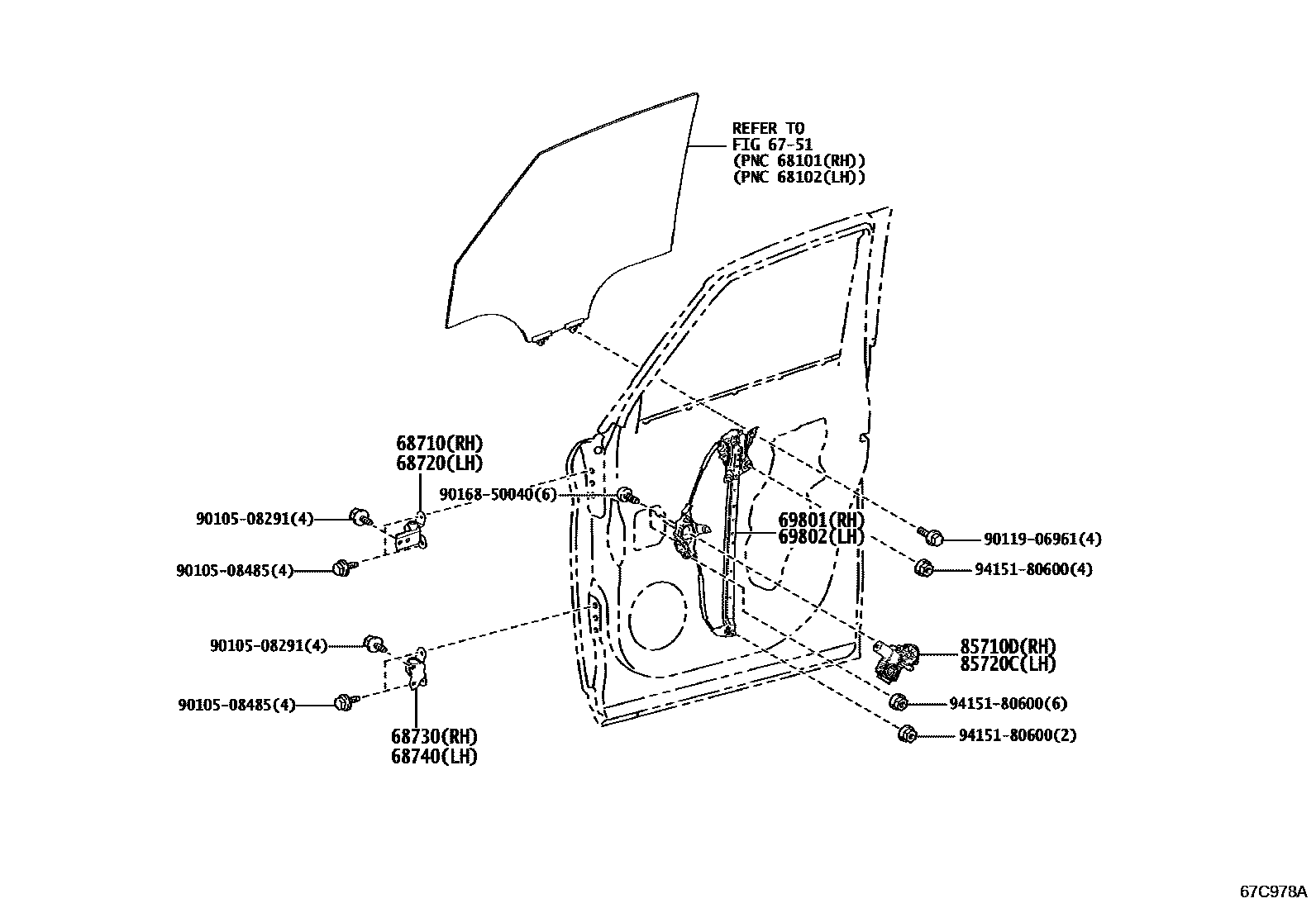

Toyota ALPHARD/VELLFIRE — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,030202306

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,030202306

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,240202306

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,240202306

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥4,560202306

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥4,560202306

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥12,600202306

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥12,600202306

9010508291

main90105-08291¥90

9010508485

main90105-08485¥80

9011906961

main90119-06961¥60

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
