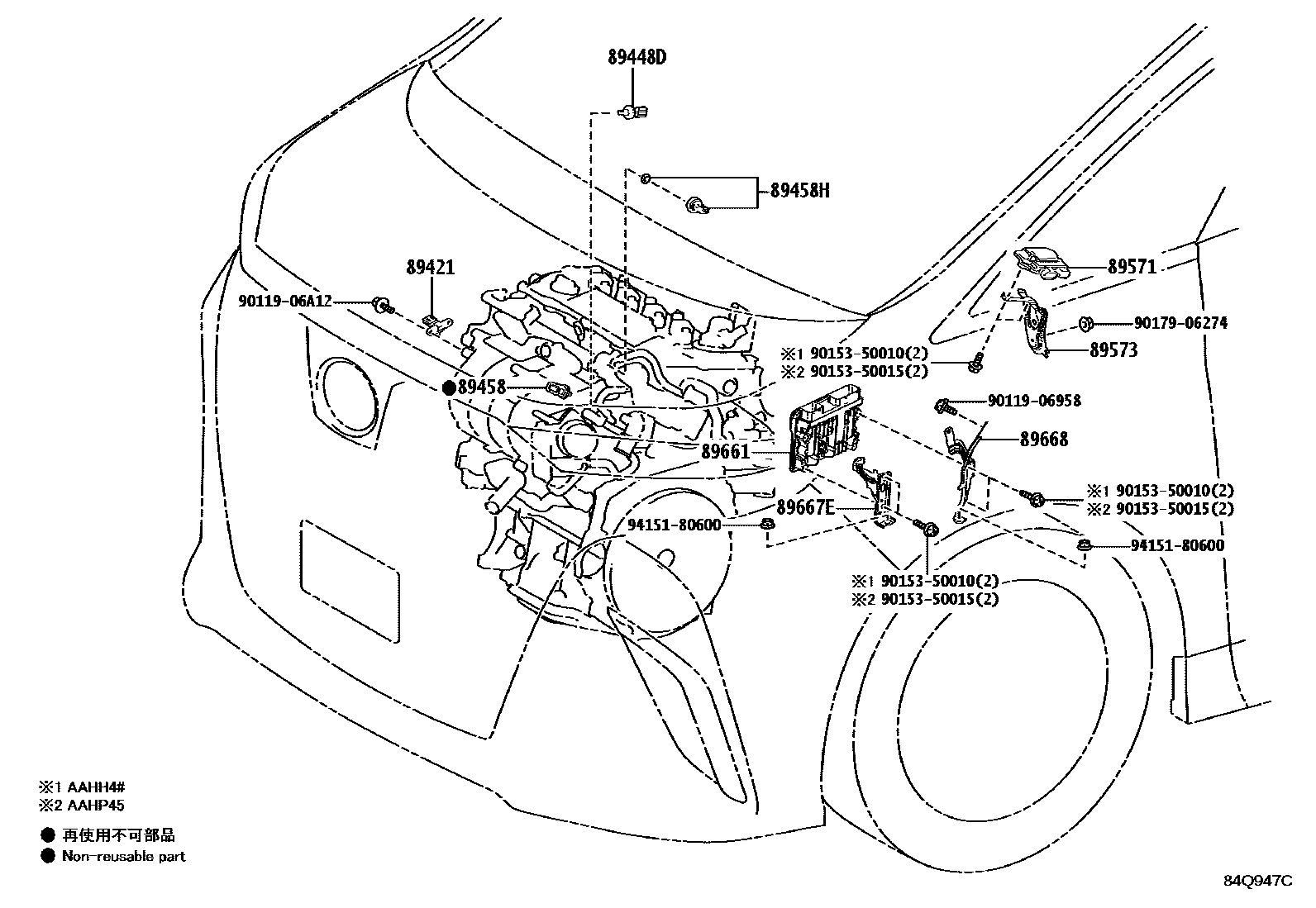

Toyota ALPHARD/VELLFIRE — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAAHH4#,AAHP45..04S,06S¥5,900202306

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAAHH4#..07S,08S¥5,700202306

89458SENSOR, FUEL PRESSURE

main89458-33030iAAHH4#..07S,08S¥4,320202306

main89458-78030iTAHA4#¥4,320202306

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iAAHH4#,TAHA4#..07S,08S¥4,320202306

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAAHH4#,AAHP45..04S,06S¥9,900202306

main89571-58020iTAHA4#¥10,300202306

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-58010iAAHH4#,TAHA4#..07S,08S¥660202306

89661COMPUTER, ENGINE CONTROL

main89661-58750iTAHA4#¥81,000202306

main89661-58B10iAAHH4#..07S,08S¥81,000202306

main89661-58B70iAGH4#¥81,000202306

main89661-58C40iAAHP45¥81,000202501

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42080iAAHH4#¥700202306-202406

main89667-42081iAAHH4#..07S,08S¥650202407

main89667-48160iTAHA4#¥710202306

main89667-58080iAGH4#¥440202306

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48170iAAHH4#,AAHP45..04S,06S¥1,030202306

main89668-58080iAGH4#¥540202306

main89668-58090iTAHA4#¥670202306

9011906958

main90119-06958¥60

9011906A12

main90119-06A12¥60

9015350010

main90153-50010¥70

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

9415180600

main94151-80600¥60

15 parts on this diagram · 3 diagrams in section
