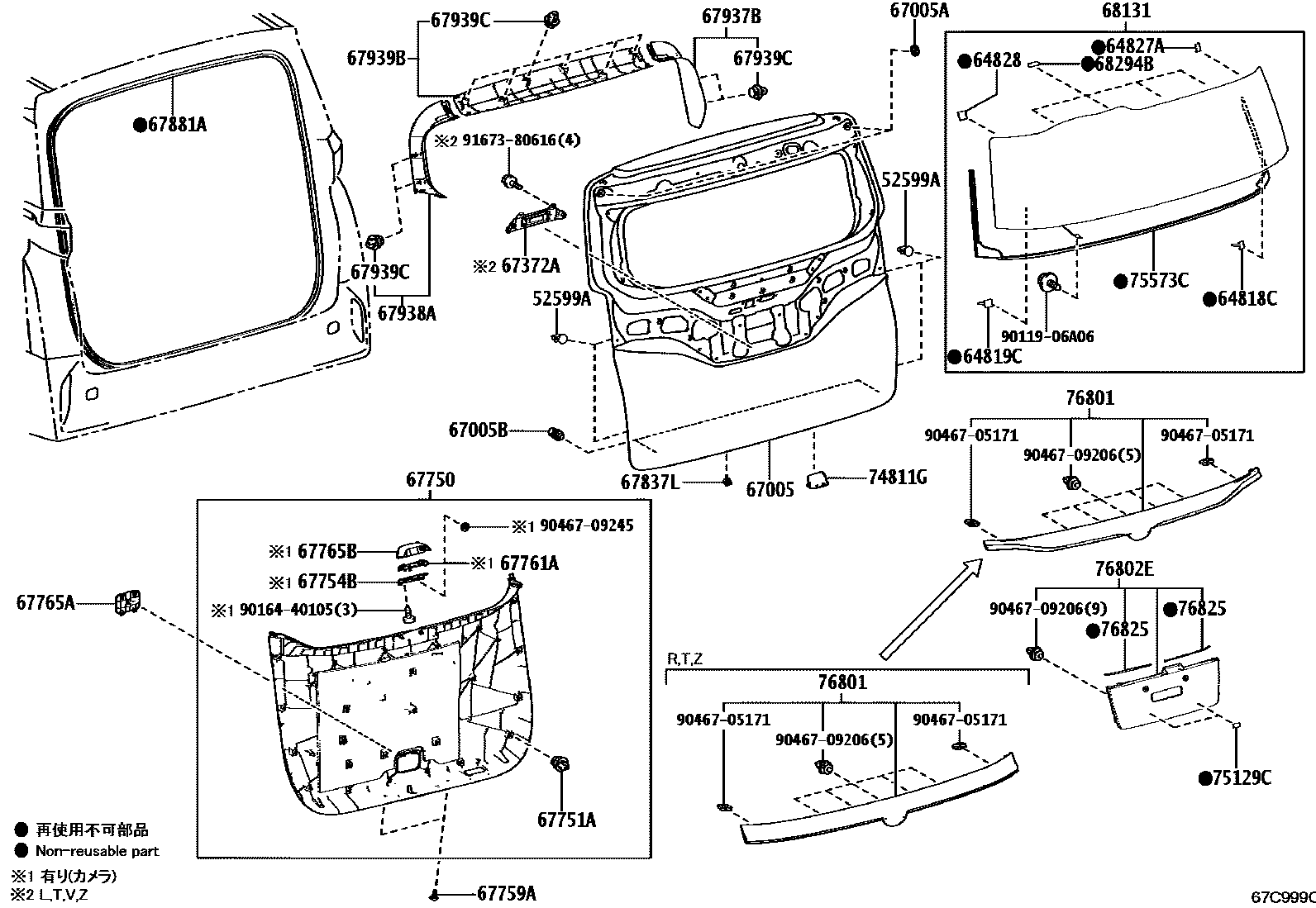

Toyota ALPHARD/VELLFIRE — BACK DOOR PANEL & GLASS

52599ASTOPPER, REAR BUMPER, UPPER

main52599-60010iAAHH4#,AAHP45,AGH4#,TAHA4#¥200202306

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥310202306

64819CSPACER, BACK DOOR GLASS, NO.2

main64819-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥310202306

64827ACLIP, BACK WINDOW GLASS, RH

main64827-V2010iAAHH4#,AAHP45..04S,06S¥200202306

64828CLIP, BACK WINDOW GLASS, LH

main64828-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥200202306

67005PANEL SUB-ASSY, BACK DOOR

main67005-V2010iAAHH4#,AGH4#..G,X¥55,300202306

main67005-V2020iAAHH4#,AGH4#,TAHA4#..EL,PREM,Z¥55,300202306

main67005-V2020iAAHH4#,AAHP45..04S,06S¥55,300202501

67005APLUG, HOLE(FOR BACK DOOR PANEL)

main90950-01A02iAAHH4#,AAHP45..04S,06S¥100202306

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09148iAAHH4#,AAHP45..04S,06S¥100202306

67372AWEIGHT, BACK DOOR

main67372-V2010iAAHH4#,AGH4#,TAHA4#..EL,PREM,Z¥3,880202306

67750BOARD ASSY, BACK DOOR TRIM

main67750-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main67750-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main67750-V2050-C0iTAHA4#..Z202306

main67750-V2050-C0iAAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM0#,2#,4#

main67750-V2050-C0iAAHH4#,AGH4#..PREM,Z202306

main67750-V2050-C0iAAHP45..PREM202501

BLACK,TRIM2#

main67750-V2050-C0iAAHP45..PREM202501

BLACK,TRIM2#,4#

main67750-V2070-C0iAAHH4#,AGH4#..G202306

main67750-V2070-C0iAAHH4#,AGH4#..G202306

main67750-V2070-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#,4#

main67750-V2080-C0iAAHH4#,AGH4#..PREM,Z202306

main67750-V2080-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

main67750-V2080-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

main67750-V2080-C0iAAHP45..PREM202501

BLACK,TRIM2#,4#

main67750-V2080-C0iAAHH4#,TAHA4#..EL202306

BLACK,TRIM0#,2#,4#

main67750-V2080-C0iAAHH4#,TAHA4#..EL202306

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-10161iAAHH4#,AGH4#,TAHA4#..07S,08S¥90202306

67754BSPACER, BACK DOOR TRIM

main67754-V2010iTAHA4#;AAHH4#..EL¥520202306

main67754-V2010iTAHA4#;AAHH4#..EL¥520202306

main67754-V2010iTAHA4#;AAHH4#..EL¥520202306

67759ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07076-C7iAAHH4#..G,X;AGH4#..G,PREM,X202306

BLACK,TRIM2#,4#

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

main90467-07076-C7iAAHH4#..G,X;AGH4#..G,PREM,X202306

BLACK,TRIM2#

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

67761ACOVER, BACK DOOR TRIM

main67761-V2020-C0iTAHA4#;AAHH4#..EL202306

BLACK,TRIM0#,2#,4#

main67761-V2020-C0iTAHA4#;AAHH4#..EL202306

main67761-V2020-C0iTAHA4#;AAHH4#..EL202306

main67761-V2020-C0iTAHA4#;AAHH4#..EL202306

main67761-V2020-C0iTAHA4#;AAHH4#..EL202306

main67761-V2020-C0iTAHA4#;AAHH4#..EL202306

main67761-V2020-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

BLACK,TRIM2#,4#

main67761-V2020-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

main67761-V2020-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

main67761-V2020-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-V2010-C0iAAHH4#..G,X;AGH4#..G,PREM,X202306

BLACK,TRIM2#

main67765-V2010-C0iAAHH4#..G,X;AGH4#..G,PREM,X202306

BLACK,TRIM2#,4#

67765BCOVER, BACK DOOR TRIM, UPPER

main67761-V2010-C0iAAHH4#,AGH4#..PREM,Z202306

main67761-V2010-C0iTAHA4#;AAHH4#..EL202306

BLACK,TRIM0#,2#,4#

main67761-V2010-C0iTAHA4#;AAHH4#..EL202306

main67761-V2010-C0iTAHA4#;AAHH4#..EL202306

main67761-V2010-C0iTAHA4#;AAHH4#..EL202306

main67761-V2010-C0iTAHA4#;AAHH4#..EL202306

main67761-V2010-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

BLACK,TRIM2#,4#

main67761-V2010-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

main67761-V2010-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

main67761-V2010-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202501

67837LSEAL, DOOR DUST PROOF

main67837-78010iAAHH4#,AGH4#,TAHA4#..07S,08S¥80202306

67881AWEATHERSTRIP, BACK DOOR

main67881-V2010iAAHH4#,AAHP45..04S,06S¥8,600202306

67937BGARNISH, BACK DOOR SIDE, RH

main67937-V2010-C1iAAHH4#,AGH4#..ALPHD..G202306

BLACK,TRIM2#,4#

main67937-V2010-C1iAAHH4#,AGH4#..ALPHD..G202306

BLACK,TRIM0#,2#

main67937-V2010-C1iAAHH4#,AGH4#..ALPHD..G202306

BLACK,TRIM2#

main67937-V2030-C0iAAHH4#,TAHA4#..EL202306

BLACK,TRIM2#,4#

67938AGARNISH, BACK DOOR SIDE, LH

main67938-V2010-C1iAAHH4#,AGH4#,TAHA4#..PREM,Z202306

BLACK,TRIM0#,2#

main67938-V2010-C1iAAHH4#,AGH4#,TAHA4#..PREM,Z202306

BLACK,TRIM2#

main67938-V2010-C1iAAHH4#,AGH4#..ALPHD..G202306

BLACK,TRIM2#,4#

main67938-V2030-C0iAAHH4#,AAHP45..(04S,06S)..(EL,SL,SLS)202306

BLACK,TRIM2#,4#

67939BGARNISH, BACK DOOR, CENTER

main67939-V2010-C1iAAHH4#,AGH4#,TAHA4#..PREM,Z202306

BLACK,TRIM0#,2#

main67939-V2010-C1iAAHH4#,AGH4#,TAHA4#..PREM,Z202306

BLACK,TRIM2#,4#

main67939-V2010-C1iAAHH4#,AGH4#,TAHA4#..PREM,Z202306

BLACK,TRIM2#

main67939-V2030-C0iAAHH4#,TAHA4#..EL202306

BLACK,TRIM2#,4#

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-10161iAAHH4#,AAHP45..04S,06S¥90202306

68131GLASS, BACK DOOR

main68105-V2010iTAHA4#;AAHH4#,AAHP45..EL,SL,SLS¥49,000202306

main68105-V2020iTAHA4#;AAHH4#,AAHP45..EL,SL,SLS¥49,000202306

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030iAAHH4#,AGH4#,TAHA4#..07S,08S¥200202306

74811GHANDLE, DOOR PULL

main74811-28020-C4iAAHH4#..G,X;AGH4#..G,PREM,X202306

BLACK,TRIM2#,4#

main74811-28020-C4iAGH4#..Z;AAHH4#,TAHA4#..EL,PREM,Z202306

BLACK,TRIM2#

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iAAHH4#,AGH4#,TAHA4#..07S,08S¥80202306

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥3,270202306

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-V2010iAAHH4#,AGH4#..ALPHD..(07S,08S)¥14,900202306

main76801-V2020iAAHH4#,AGH4#,TAHA4#..VFIRE..(EL,G,PREM)¥16,900202306

main76801-V2050iAAHH4#..PREM¥16,900202306

main76801-V2050iTAHA4#..Z¥16,900202306

76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER

main76802-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥9,400202306

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥430202306

9011906A06

main90119-06A06¥60

9016440105

main90164-40105¥70

9046705171

main90467-05171¥60

9046709206

main90467-09206¥80

9046709245

main90467-09245¥80

9167380616

main91673-80616¥60

36 parts on this diagram · 1 diagram in section
