Toyota ALPHARD/VELLFIRE — WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1ENGINE 1/2 0012 1ENGINE 2/2 0013 1ENGINE 1/2 0014 1ENGINE 2/2 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1DOOR 0018 1FLOOR 0019 1ROOF 0020 1HIGH TENSION CABLE 0021 1HIGH TENSION CABLE 0022 1HIGH TENSION CABLE 0023 1SEAT 0024 1CLAMP & BRACKET 0025 1CLAMP & BRACKET 0026 1CABLE BOND 0027 1CONNECTOR 1/2 0028 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-V2070iAGH40..G¥128,000202306

main82111-V2090iAGH40..L,T¥139,000202306

main82111-V2140iAAHH4#..RHD¥160,000202306

main82111-V2150iTAHA40..LHD202306

main82111-V2160iAAHH45..LHD..(CHI,GEN,KRE)202306

main82111-V2170iAAHH40..LHD;AAHH45..TAIW202306

main82111-V2760iTAHA40..RHD¥149,000202306

main82111-V2870iAAHP45202501

82112WIRE, ENGINE ROOM, NO.2

main82112-V2010iAGH40..G¥1,070202306

main82112-V2020iAAHH4#,AAHP45,AGH40,TAHA40..L,T,V,Z¥1,790202306

82113WIRE, ENGINE ROOM, NO.3

main82113-V2070iAAHH4#,AAHP45,AGH40,TAHA40..G,L,V¥1,790202306

main82113-V2130iAAHH4#,AGH40,TAHA40..T,Z¥1,790202306

82114WIRE, ENGINE ROOM, NO.4

main82114-V2020iAAHH4#,AAHP45,AGH40,TAHA40..L,V¥3,210202306

main82114-V2040iAGH40..G¥1,790202306

main82114-V2080iAAHH4#,AGH40,TAHA40..T,Z¥3,750202306

82119CWIRE, ENGINE ROOM, NO.5

main82119-V2010iAAHH4#,AGH40,TAHA40..RHD¥720202306

main82119-V2040iAAHH4#,AAHP45,TAHA40..LHD202306

8211AWIRE, ENGINE ROOM, NO.6

main8211A-V2010iAGH40..G¥1,070202306

main8211A-V2020iAAHH4#,AAHP45,AGH40,TAHA40..L,T,V,Z¥1,790202306

821H2WIRE, HV AIR CONDITIONER

main821H2-42030iAAHP45¥9,000202501

main821H2-78010iAAHH4#¥11,700202306

82346WIRE, SPEAKER TWEETER

main82346-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥720202306

82816FCOVER, WIRING HARNESS PROTECTOR, NO.4

main82815-0E530iAAHH4#¥570202306

82816GCOVER, WIRING HARNESS PROTECTOR, NO.5

main82815-33K70iAAHH4#¥310202306

82816HCOVER, WIRING HARNESS PROTECTOR, NO.6

main82815-42890iAAHH4#¥200202306

82816NCOVER, WIRING HARNESS PROTECTOR, NO.11

main82815-V2B90iAAHP45¥430202501

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-V2020iAAHH4#,AAHP45,AGH40,TAHA40¥350202306

82818NPROTECTOR, WIRING HARNESS, NO.14

main82817-0EC10iAAHH4#¥1,020202306

82818SPROTECTOR, WIRING HARNESS, NO.15

main82817-33Y70iAAHH4#¥520202306

82818TPROTECTOR, WIRING HARNESS, NO.16

main82817-42K60iAAHH4#¥300202306

82821ACOVER, CONNECTOR

main82821-48460iAAHH45..RHD;AAHH45..CHI,KRE,TAIW¥200202306

INDONESIA SPEC&AC INVERTER OUTPUT-220V 1500W

main82821-48460iAAHH45..RHD;AAHH45..CHI,KRE,TAIW¥200202306

MACAU SPEC

main82821-48460iAAHH45..RHD;AAHH45..CHI,KRE,TAIW¥200202306

MACAU SPEC&AC INVERTER OUTPUT-220V 1500W

main82821-48460iAAHH40..(T,Z)..GEN¥200202501

SINGAPORE SPEC&AC INVERTER OUTPUT-220V 1500W

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-58010iAAHH4#,AAHP45,AGH40,TAHA40¥4,720202306

9011906952

main90119-06952¥60

9011906A06

main90119-06A06¥60

9011906A39

main90119-06A39¥80

9017806012

main90178-06012¥80

9017906264

main90179-06264¥100

9167180820

main91671-80820¥80

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

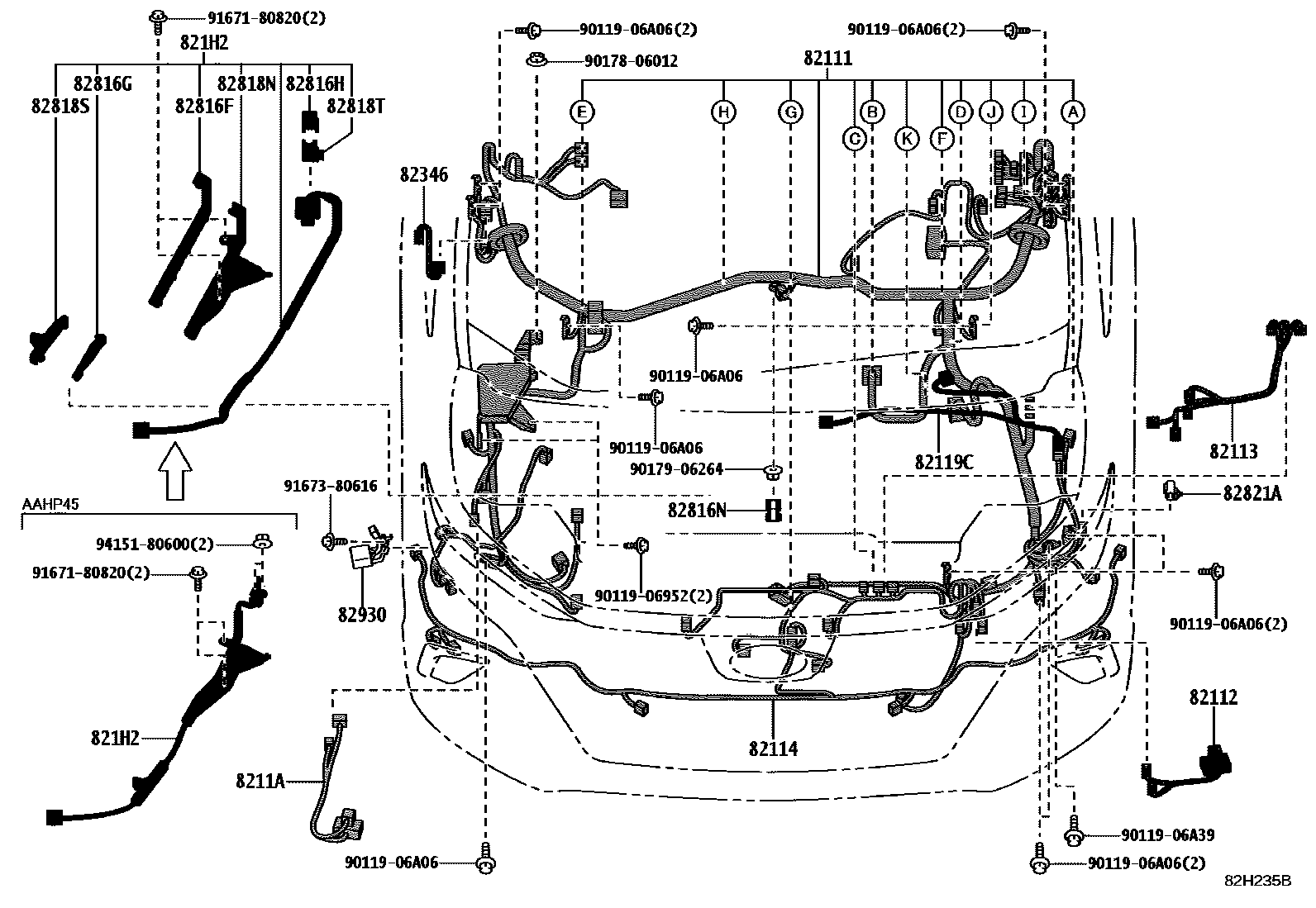

26 parts on this diagram · 28 diagrams in section
