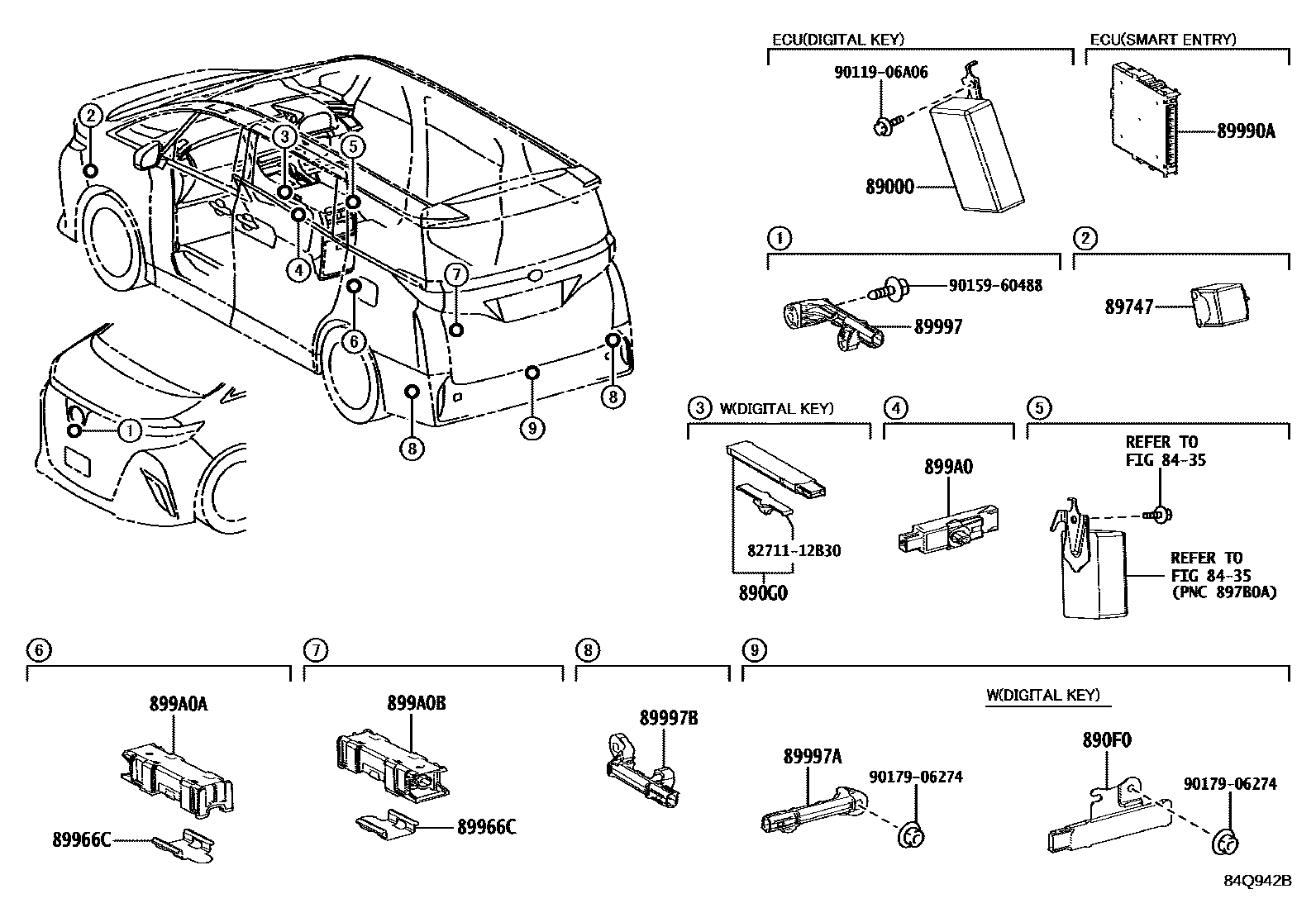

Toyota ALPHARD/VELLFIRE — WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-V2020

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890F0-V2020

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-42020¥7,100

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAAHH40..T,Z¥2,900202306-202501

main89747-30040iAGH40,TAHA40;AAHH40..MA,PH;AAHH45..LHD..GEN;AAHH40..(L,V)..GEN¥2,900202306

MACAU SPEC

89966CBRACKET, OSCILLATOR ELECTRICAL KEY

main89966-28010iAAHH4#,AAHP45,AGH40,TAHA40¥240202306

89990ACOMPUTER ASSY, SMART KEY

main899H0-V2010iAGH40..G¥44,900202306-202310

main899H0-V2020iAAHH4#,AAHP45¥44,900202306

main899H0-V2130iAGH40..G202310

INDONESIA SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-30100¥1,800

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iAAHH4#,AAHP45,AGH40,TAHA40¥1,800202306

89997BANTENNA, ELECTRICAL KEY, NO.3

main89997-30100iAAHH4#,AAHP45,AGH40,TAHA40¥1,800202306

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iAAHH4#,AAHP45,AGH40,TAHA40¥1,410202306

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-V1010iAAHH4#,AAHP45,AGH40,TAHA40¥1,410202306

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-V1010iAAHH4#,AAHP45,AGH40,TAHA40¥1,410202306

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30¥110

9011906A06

main90119-06A06¥60

9015960488

main90159-60488¥70

9017906274

main90179-06274¥70

17 parts on this diagram · 1 diagram in section
