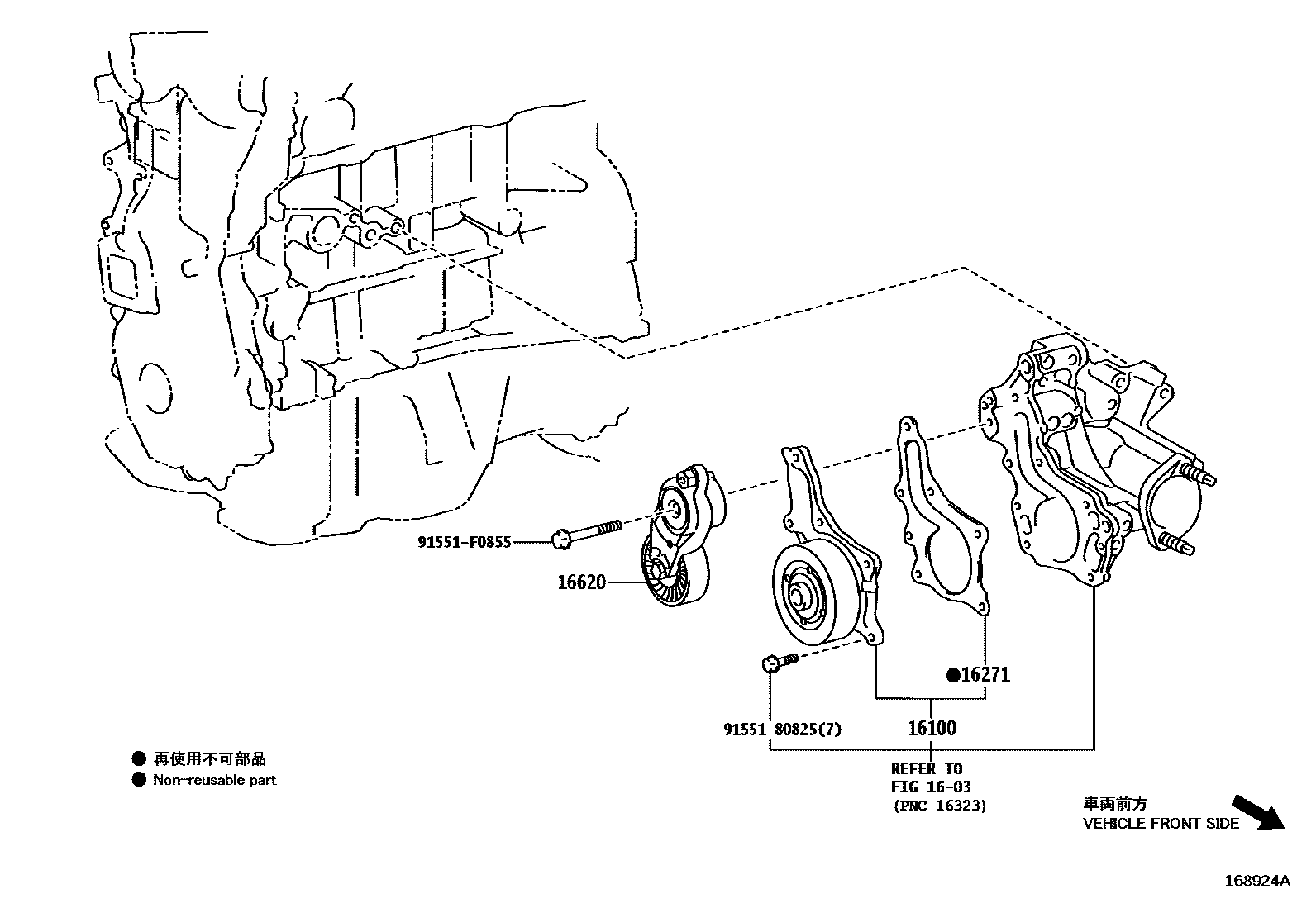

Toyota ALPHARD/VELLFIRE — WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-25030iT24AFTS..TAHA40¥10,500202306

main16100-39516i2ARFE..AGH40¥11,800202306

16271GASKET, WATER PUMP

main16271-25020iT24AFTS..TAHA40¥590202306

main16271-36010i2ARFE..AGH40¥610202306

16620TENSIONER ASSY, V-RIBBED BELT

main16620-25050iT24AFTS..TAHA40..RHD¥10,100202306

VIETNAM SPEC

main16620-25060iT24AFTS..TAHA40..LHD202306

main16620-36013i2ARFE..AGH40¥10,100202306

9155180825

main91551-80825¥80

91551F0855

main91551-F0855¥100

6 parts on this diagram · 2 diagrams in section
