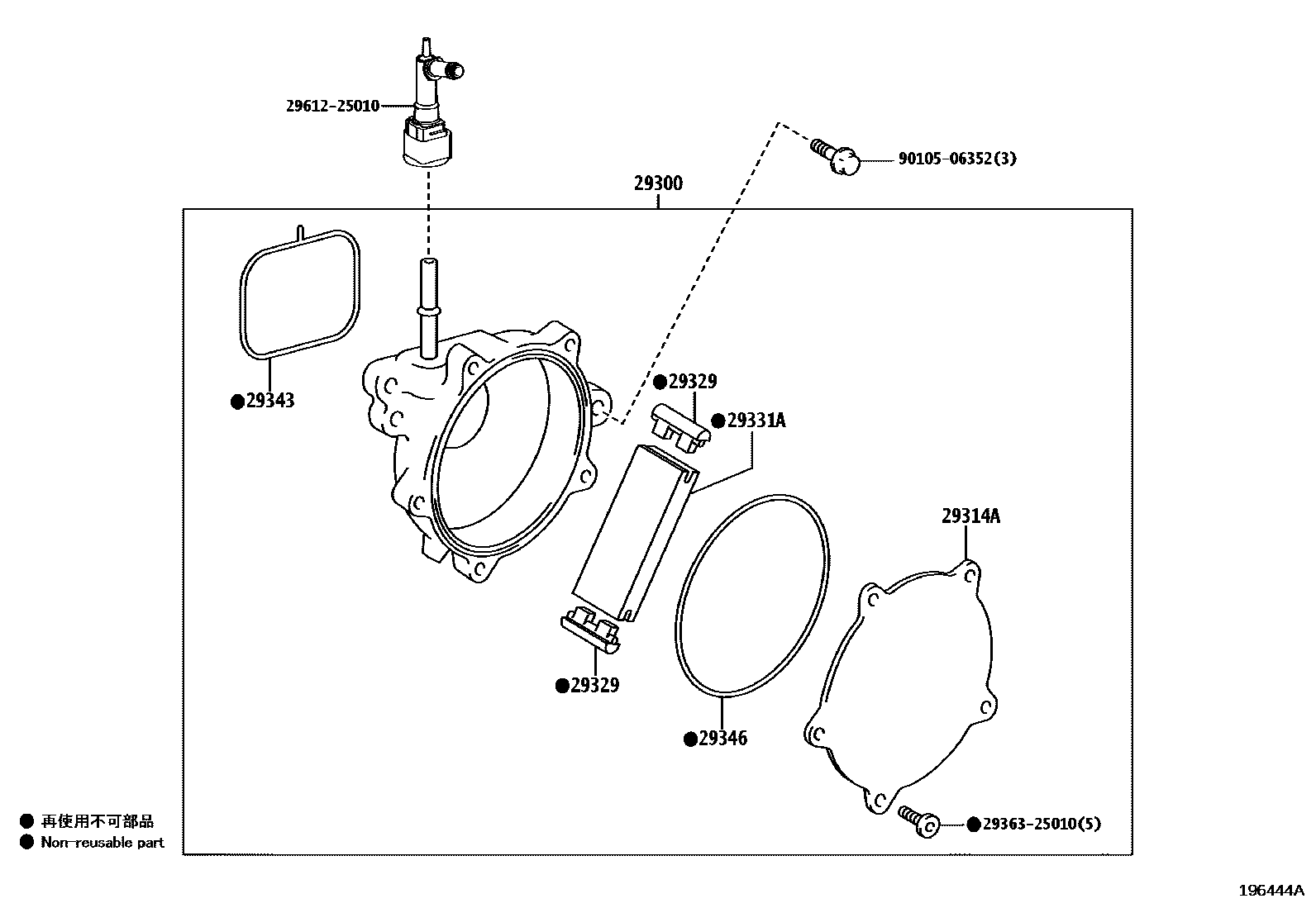

Toyota ALPHARD/VELLFIRE — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-25012iT24AFTS..TAHA40¥15,700202306

29314ACOVER, END

main29314-25010iT24AFTS..TAHA40¥900202306

29329CAP, VACUUM PUMP VANE

main29329-25011iT24AFTS..TAHA40¥900202306

29331AVANE, VACUUM PUMP

main29331-37010iT24AFTS..TAHA40¥590202306

29343RING, O VACUUM PUMP, NO.1

main29343-25010iT24AFTS..TAHA40¥340202306

29346RING, O VACUUM PUMP COVER

main29346-25010iT24AFTS..TAHA40¥340202306

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

2961225010CONNECTOR, VACUUM PUMP

main29612-25010¥540

9010506352

main90105-06352¥60

9 parts on this diagram · 1 diagram in section
