Toyota ALPHARD/VELLFIRE — V-BELT

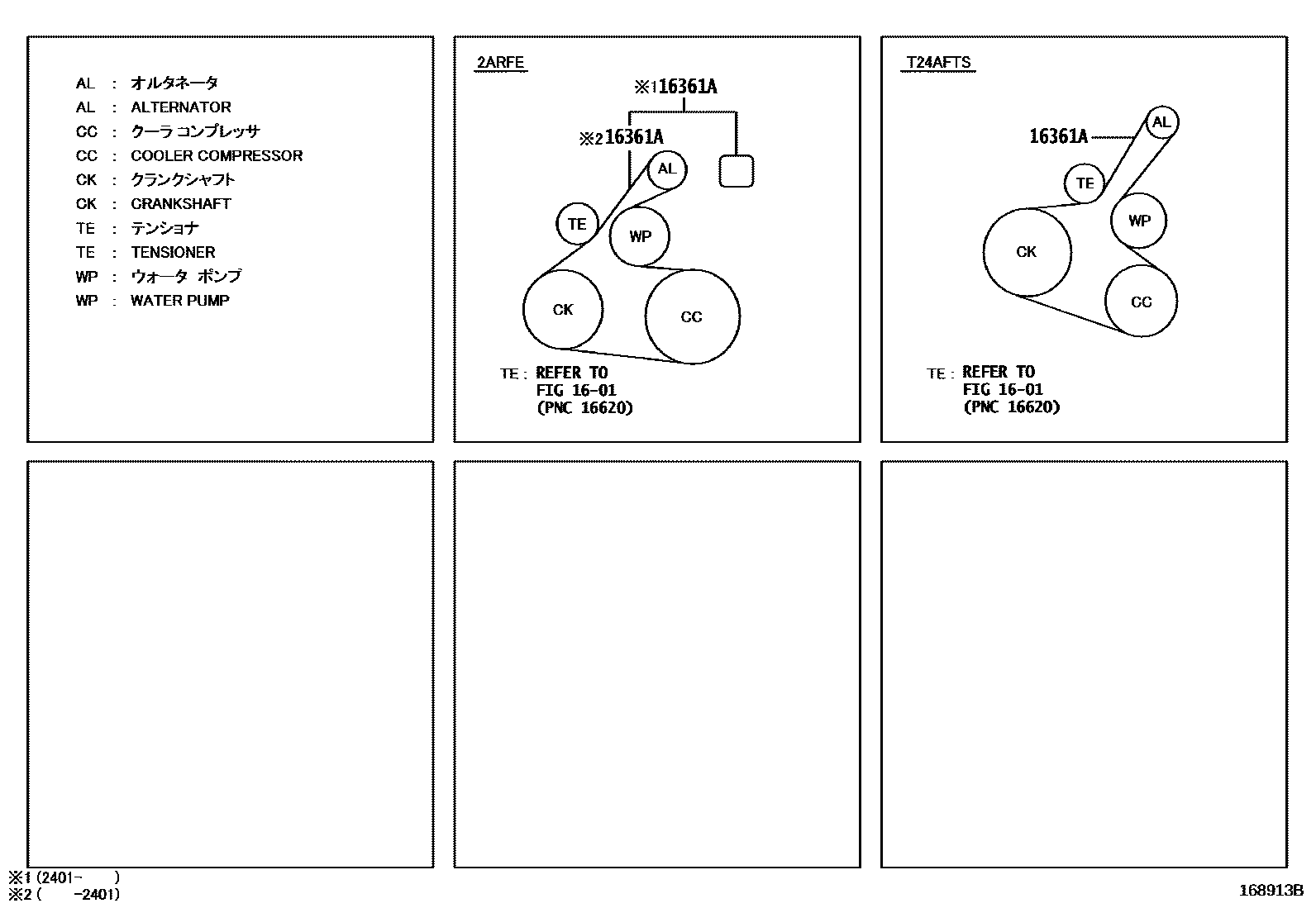

Parts diagram

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main0416B-58010i¥4,790202306

W(LABEL)

main90916-02668i¥4,690202306

main90916-02732i¥4,690202306-202401

2 parts on this diagram · 1 diagram in section
