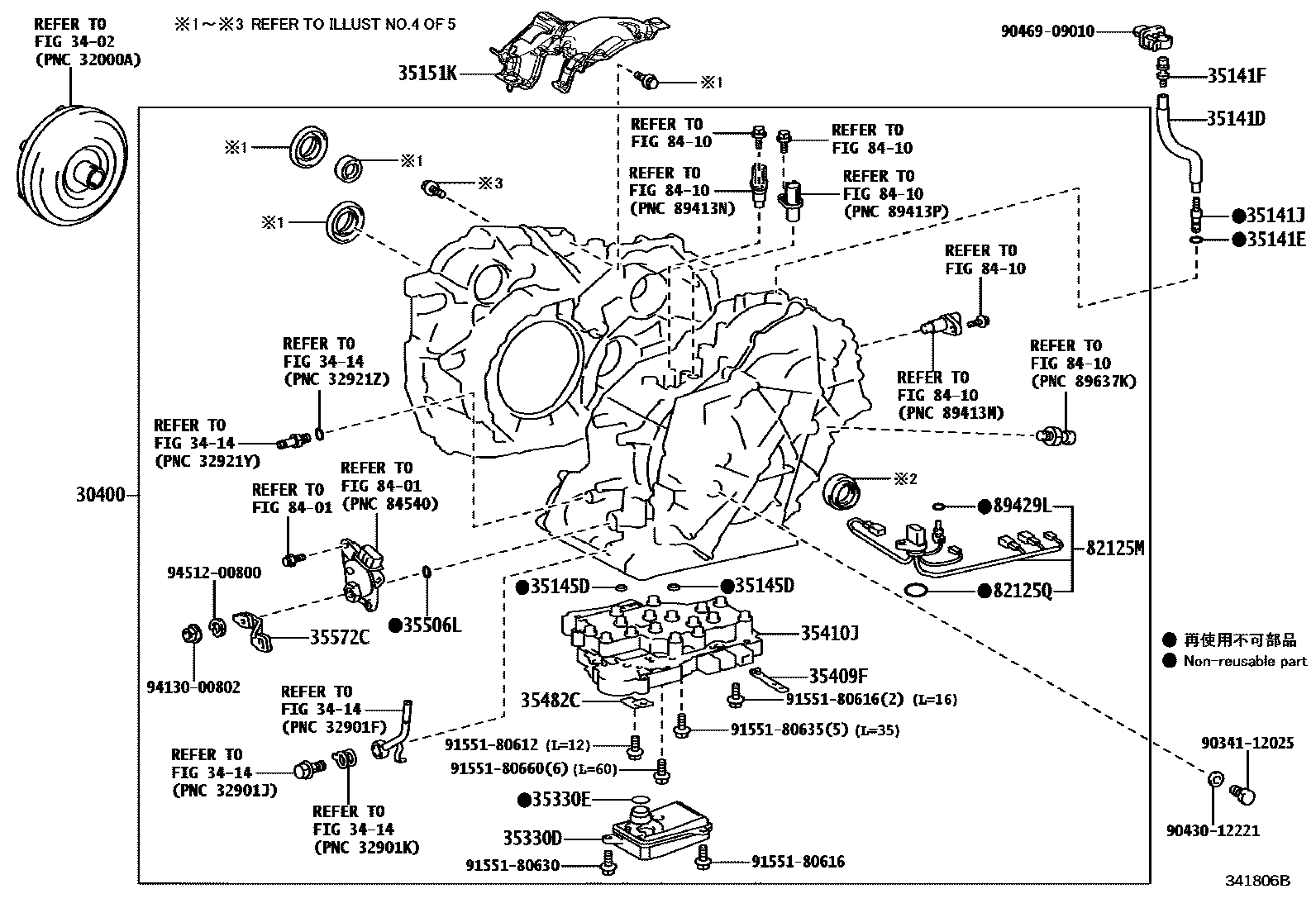

Toyota ALPHARD/VELLFIRE — TRANSAXLE ASSY(CVT)

0001 1K115 0002 1K115 0003 1K115 0004 1K115 0005 1K115

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-58070iAGH40¥351,000202306-202501

K115

3402

3414

35141DHOSE(FOR BREATHER PLUG)

main35121-58020iAGH40¥370202306

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iAGH40¥140202306

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iAGH40¥260202306

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03157iAGH40¥260202306

35145DGASKET, TRANSAXLE CASE

main35145-33010iAGH40¥360202306

35151KCOVER, AUTOMATIC TRANSMISSION CASE

main35151-48070iAGH40¥800202306

35330DSTRAINER ASSY, OIL

main35330-28020iAGH40¥2,920202306

35330ERING, O (FOR OIL STRAINER)

main90301-24013iAGH40¥140202306

35409FSPRING SUB-ASSY, MANUAL DETENT

main35409-44010iAGH40¥400202306

35410JBODY ASSY, TRANSMISSION VALVE

main35410-28482iAGH40¥53,700202306

35482CCLAMP, TEMPERATURE SENSOR

main35482-73010iAGH40¥170202306

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAGH40¥270202306

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-28130iAGH40¥630202306

82125MWIRE, TRANSMISSION

main82125-48031iAGH40¥1,430202306

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iAGH40¥170202306

8401

8410

89429LRING, O(FOR OIL TEMPERATURE SENSOR)

main90301-06004iAGH40¥120202306

9034112025

main90341-12025¥190

9043012221

main90430-12221¥200

9046909010

main90469-09010¥110

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9155180630

main91551-80630¥60

9155180635

main91551-80635¥80

9155180660

main91551-80660¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

31 parts on this diagram · 5 diagrams in section
