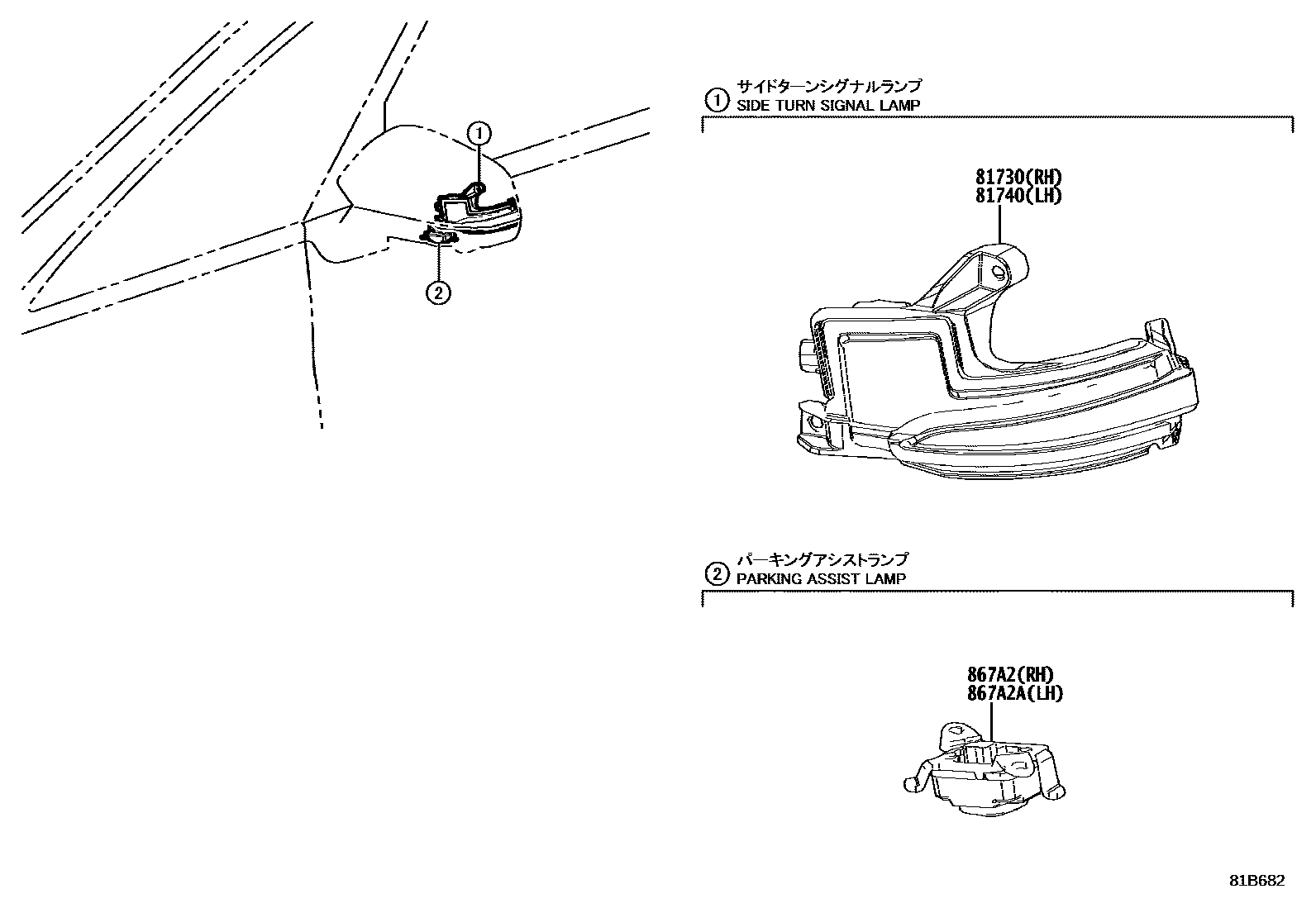

Toyota ALPHARD/VELLFIRE — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-28020iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥3,660202306

main81730-28020iAAHH40,AAHP45..MA,TAIW¥3,660202501

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-28020iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥3,660202306

main81740-28020iAAHH40,AAHP45..MA,TAIW¥3,660202501

867A2LIGHT, PARKING ASSIST, RH

main867A2-42030iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥8,400202306

main867A2-42030iAAHH40,AAHP45..MA,TAIW¥8,400202501

867A2ALIGHT, PARKING ASSIST, LH

main867A2-42040iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥8,400202306

main867A2-42040iAAHH40,AAHP45..MA,TAIW¥8,400202501

4 parts on this diagram · 1 diagram in section
