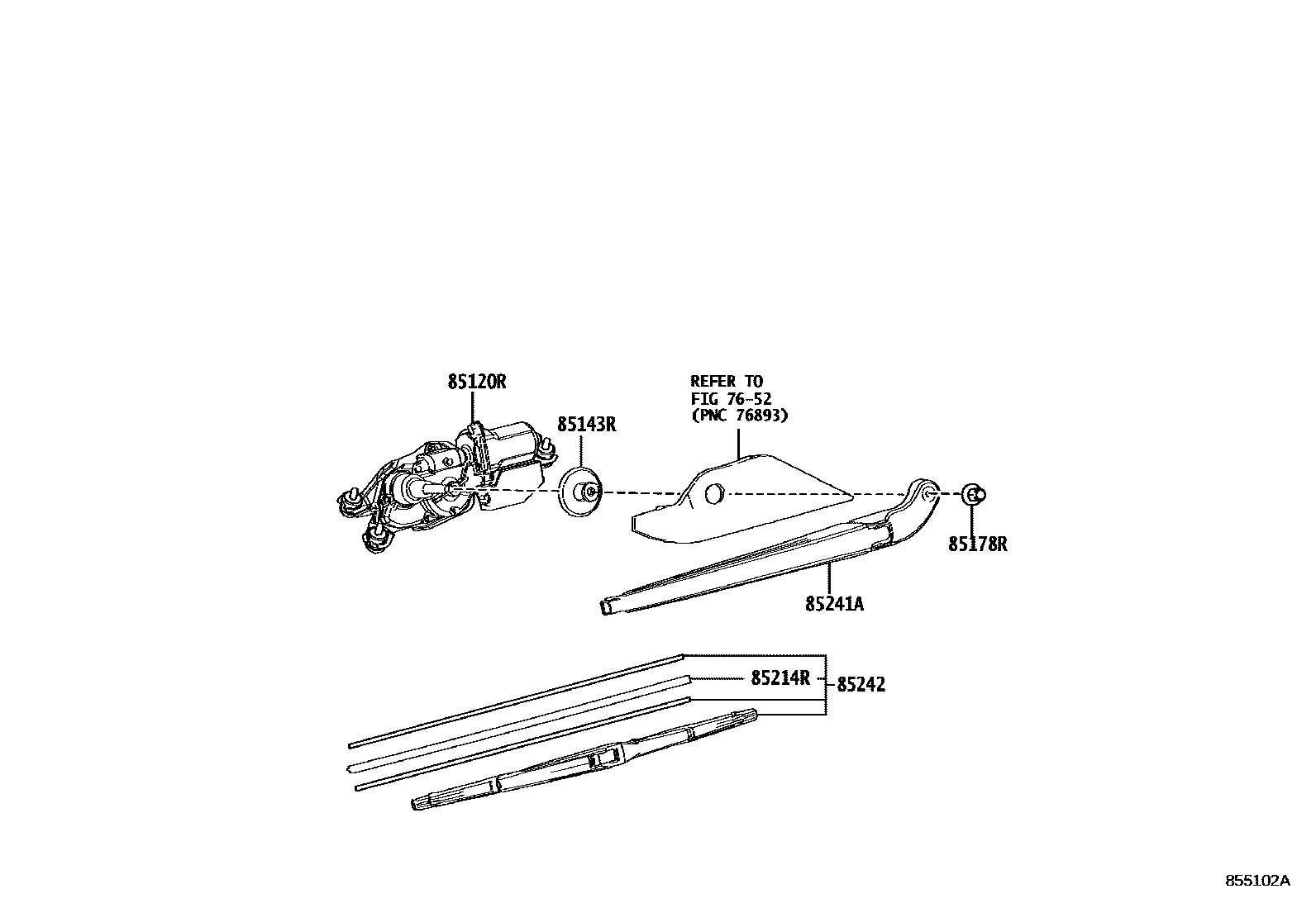

Toyota ALPHARD/VELLFIRE — REAR WIPER

7652

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥17,400202306

85143RGROMMET, REAR WIPER MOTOR

main85143-58010iAAHH4#,AAHP45,AGH40,TAHA40¥160202306

85178RNUT (FOR REAR WIPER ARM SETTING)

main85113-58020iAAHH4#,AAHP45,AGH40,TAHA40¥310202306

85214RRUBBER, REAR WIPER

main85214-42040iAAHH4#,AAHP45,AGH40,TAHA40¥600202306

85241AARM, REAR WIPER

main85241-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥1,700202306

85242BLADE, RR WIPER

main85242-78010iAAHH4#,AAHP45,AGH40,TAHA40¥1,220202306

sub85242-72010¥1,220

7 parts on this diagram · 1 diagram in section
