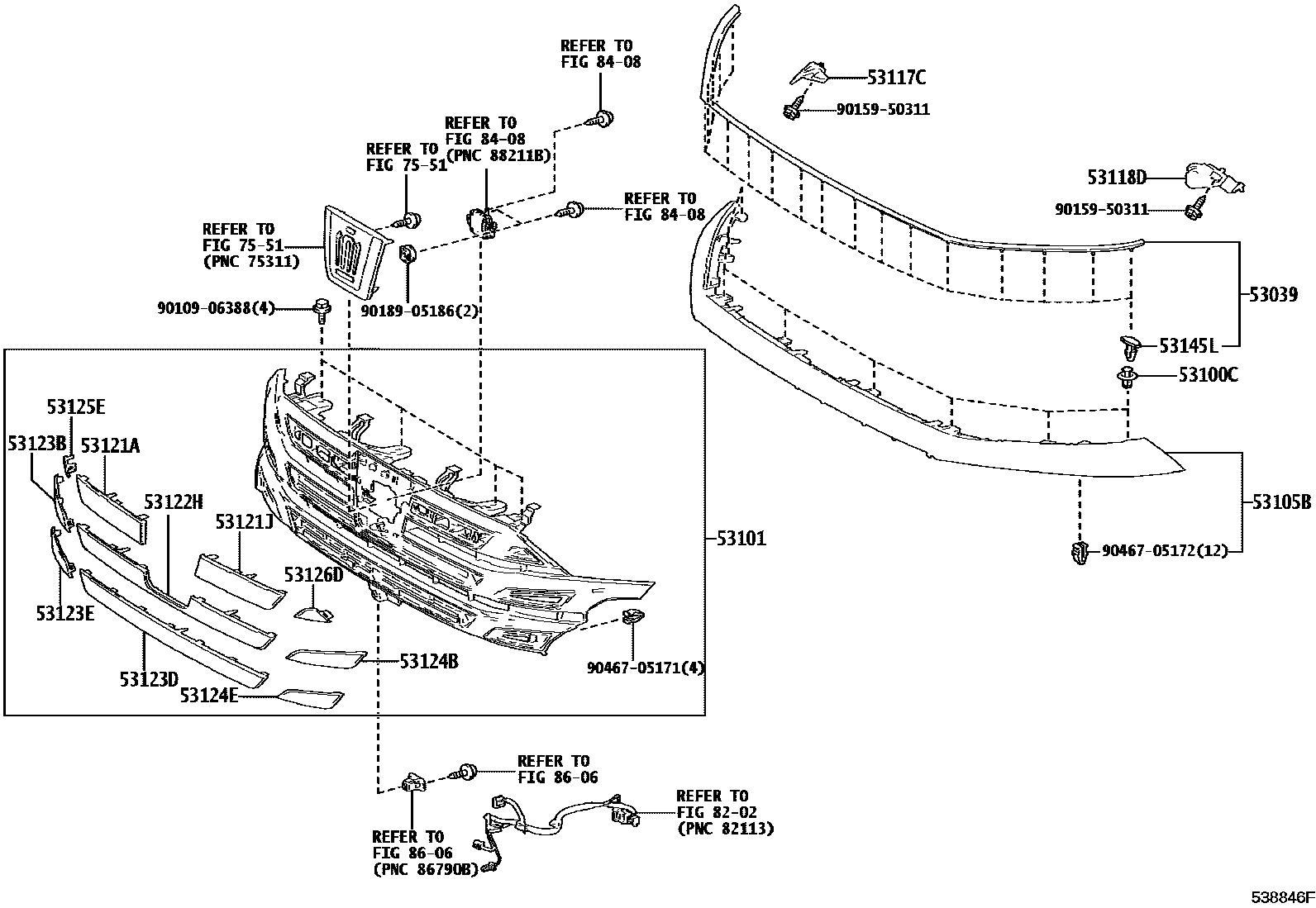

Toyota ALPHARD/VELLFIRE — RADIATOR GRILLE

0001 1 0002 1 0003 1

53039SEAL, RADIATOR, UPPER

main53039-V2010iAAHH4#,AGH40,TAHA40¥2,250202306-202401

main53039-V2011iAAHH4#,AAHP45,AGH40,TAHA40¥2,050202401

53100CCLIP, RADIATOR GRILLE

main90467-07215iAAHH4#,AAHP45,AGH40,TAHA40¥80202306

53101GRILLE SUB-ASSY, RADIATOR

main53101-V2070iAGH40..G¥29,400202306

NO PAINT REQ.

main53101-V2080iAAHH4#,AAHP45,AGH40,TAHA40..L,V¥30,400202306

NO PAINT REQ.

main53101-V2170iAAHH4#,AGH40,TAHA40..RHD..(T,Z)¥41,600202306

NO PAINT REQ.

main53101-V2180iAAHH45..Z202306

NO PAINT REQ.

53105BGARNISH SUB-ASSY, RADIATOR GRILLE

main53105-V2020-A0iAAHH4#,AGH40,TAHA40202306-202312

PLATINUM WHITE PEARL MC.,089

sub53105-V2021¥13,400

main53105-V2020-B0iAAHH4#,AGH40,TAHA40202306-202312

PRECIOUS METAL,1L5

sub53105-V2021¥13,400

main53105-V2020-C0iAAHH4#,AGH40,TAHA40202306-202312

BLACK,202

sub53105-V2021¥13,400

main53105-V2020-E0iAAHH45..RHD..(L,V);AAHH45..(L,V)..(CHI,TAIW);AAHH40,AGH40,TAHA40..(L,V)..(GEN,MA)202306-202312

PRECIOUS LEO-BLOND,4Y7

sub53105-V2021¥13,400

main53105-V2021-A0iAAHH4#,AAHP45,AGH40,TAHA40202401

PLATINUM WHITE PEARL MC.,089

main53105-V2021-B0iAAHH4#,AAHP45,AGH40,TAHA40202401

PRECIOUS METAL,1L5

main53105-V2021-C0iAAHH4#,AAHP45,AGH40,TAHA40202401

BLACK,202

main53105-V2021-E0iAAHH45..RHD..(L,V);AAHH45..(L,V)..(CHI,TAIW);AAHH40,AAHP45,AGH40,TAHA40..(L,V)..(GEN,MA,TAIW)202401

PRECIOUS LEO-BLOND,4Y7

53117CRETAINER, RADIATOR GRILLE, NO.1

main52535-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥1,120202306

53118DRETAINER, RADIATOR GRILLE, NO.2

main52536-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥1,120202306

53121AMOULDING, RADIATOR GRILLE

main53121-V2040iAGH40..G¥2,360202306

main53121-V2080iAAHH4#,AAHP45,AGH40,TAHA40..L,V¥2,650202306

main53121-V2130iAAHH4#,AGH40,TAHA40..RHD..(T,Z)¥2,010202306

main53121-V2180iAAHH45..Z202306

53121JMOULDING, RADIATOR GRILLE, NO.1

main53121-V2050iAGH40..G¥2,360202306

main53121-V2090iAAHH4#,AAHP45,AGH40,TAHA40..L,V¥2,650202306

main53121-V2140iAAHH4#,AGH40,TAHA40..RHD..(T,Z)¥2,010202306

main53121-V2190iAAHH45..Z202306

53122HMOULDING, RADIATOR GRILLE, NO.2

main53122-V2060iAAHH4#,AGH40,TAHA40..RHD..(T,Z)¥3,450202306

main53122-V2090iAAHH45..Z202306

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53122-V2070iAAHH4#,AGH40,TAHA40..T,Z¥1,460202306

53123DMOULDING, RADIATOR GRILLE, LOWER

main53123-V2080iAAHH4#,AGH40,TAHA40..T,Z¥3,450202306

53123EMOULDING, RADIATOR GRILLE, LOWER RH

main53123-V2090iAAHH4#,AGH40,TAHA40..T,Z¥1,460202306

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53122-V2080iAAHH4#,AGH40,TAHA40..T,Z¥1,460202306

53124EMOULDING, RADIATOR GRILLE, LOWER LH

main53123-V2100iAAHH4#,AGH40,TAHA40..T,Z¥1,460202306

53125EMOULDING, RADIATOR GRILLE, NO.1 RH

main53121-V2150iAAHH4#,AGH40,TAHA40..T,Z¥1,460202306

53126DMOULDING, RADIATOR GRILLE, NO.1 LH

main53121-V2160iAAHH4#,AGH40,TAHA40..T,Z¥1,460202306

53145LCLIP, RADIATOR GRILLE

main53145-60030iAAHH45..L,T,V;AAHH40,AGH40,TAHA40..L,T,V,Z¥80202306-202401

main53145-60030iAAHH40,AGH40..RHD..(L,Z)¥80202311-202401

INDONESIA SPEC

main53145-60030iAAHH40,AGH40..RHD..(L,Z)¥80202311-202401

SRI LANKA SPEC

7551

8202

8408

8606

9010906388

main90109-06388¥70

9015950311

main90159-50311¥70

9018905186

main90189-05186¥60

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

26 parts on this diagram · 3 diagrams in section
