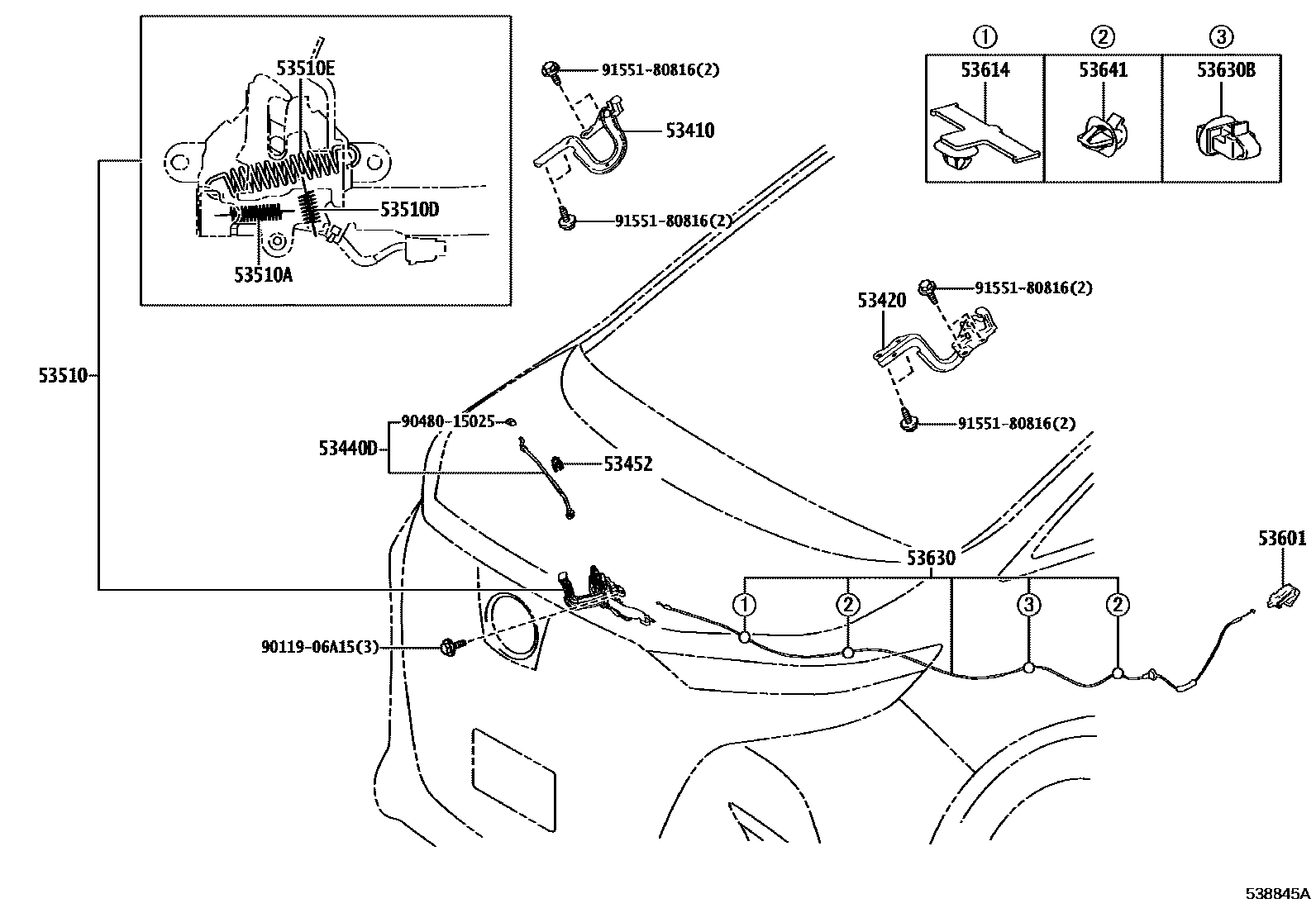

Toyota ALPHARD/VELLFIRE — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-V2020iAAHH4#,AAHP45,AGH40,TAHA40¥1,700202306

53420HINGE ASSY, HOOD, LH

main53420-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥1,700202306

53440DSUPPORT ASSY, HOOD

main53440-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥820202306

53452HOLDER, HOOD STAY

main53452-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥350202306

53510LOCK ASSY, HOOD

main53510-V2010iAAHH4#,AGH40,TAHA40..RHD¥2,930202306

main53510-V2020iAAHH4#,AAHP45,TAHA40..LHD202306

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAAHH4#,AAHP45,AGH40,TAHA40¥90202306

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAAHH4#,AAHP45,AGH40,TAHA40¥90202306

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAAHH4#,AAHP45,AGH40,TAHA40¥90202306

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iAAHH45..LHD..GEN202306

BLACK,TRIM0#,4#

main53601-30100-C0iAAHH45..LHD..GEN202306

BLACK,TRIM0#,2#,4#

main53601-30100-C0iAAHH45..LHD..GEN202306

BLACK,TRIM2#

main53601-30100-C0iAAHH45..LHD..GEN202306

BLACK,TRIM2#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-12B20iAAHH4#,AAHP45,TAHA40..LHD¥110202306

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-V2010iAAHH4#,AGH40,TAHA40..RHD¥990202306

main53630-V2020iAAHH4#,AAHP45,TAHA40..LHD202306

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-3F440iAAHH4#,AAHP45,TAHA40..LHD¥120202306

main90469-06005iAAHH4#,AGH40,TAHA40..RHD¥80202306

53641CLAMP, HOOD LOCK CONTROL WIRE

main82711-12A80iAAHH4#,AGH40,TAHA40..RHD¥70202306

main90469-06005iAAHH4#,AAHP45,TAHA40..LHD¥80202306

9011906A15

main90119-06A15¥60

9048015025

main90480-15025¥220

9155180816

main91551-80816¥80

16 parts on this diagram · 2 diagrams in section
