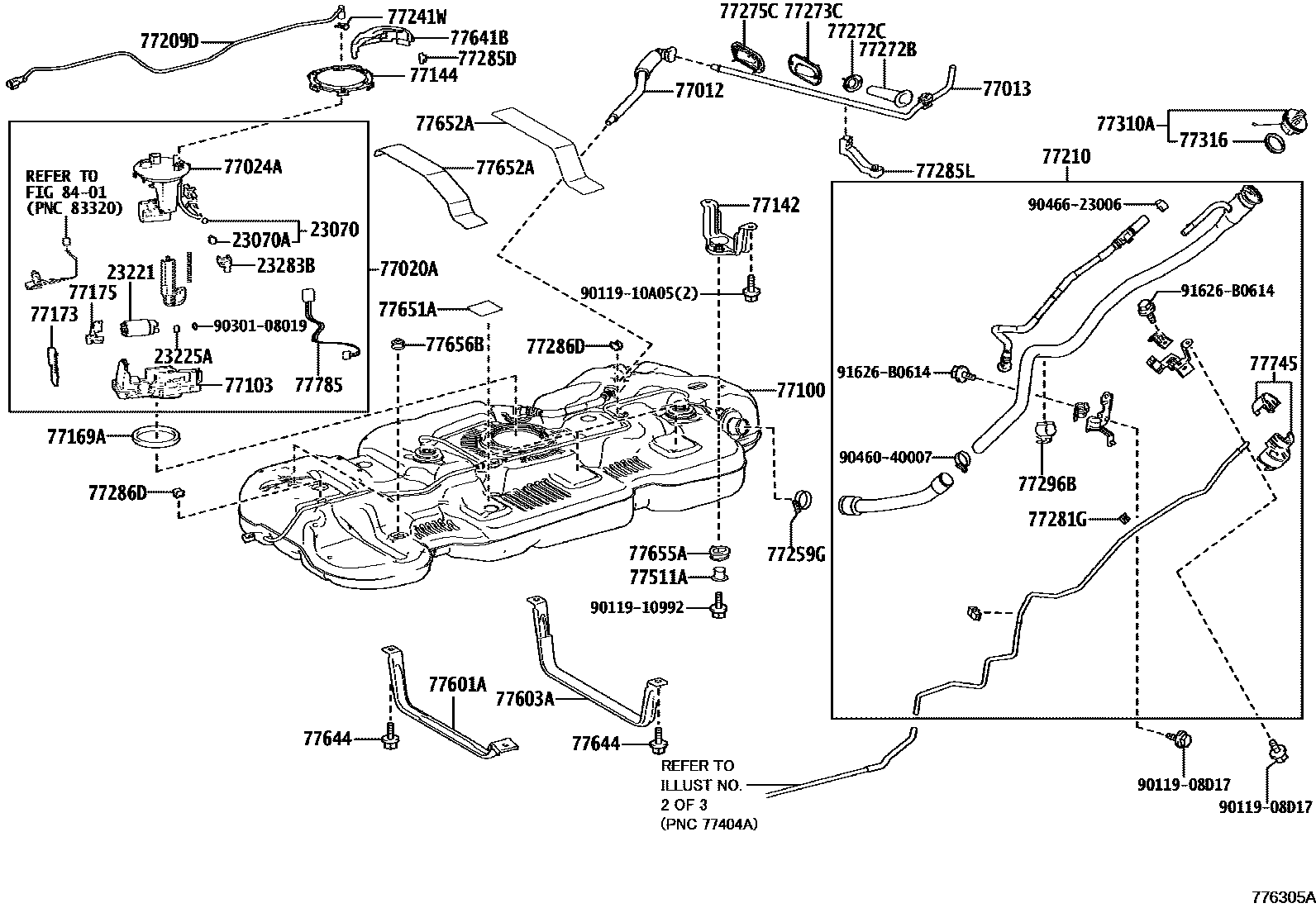

Toyota ALPHARD/VELLFIRE — FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25..AAHH4#,AAHP45¥2,560202306

main23070-31030iT24AFTS..TAHA40¥2,560202306

MARK 23070-31030

main23070-36010iT24AFTS..TAHA40¥2,560202306

MARK 23070-36010

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25..AAHH4#,AAHP45¥140202306

23221PUMP, FUEL

main23221-25030iA25..AAHH4#,AAHP45¥23,400202306

23225ASPACER, FUEL PUMP

main23225-21020i2ARFE..AGH40¥120202306

main23225-31010iT24AFTS..TAHA40¥40202306

main23225-31020iA25..AAHH4#,AAHP45¥40202306

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iA25..AAHH4#,AAHP45¥370202306

main23283-36010iT24AFTS..TAHA40¥110202306

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-V2050iAAHH4#..GEN,MA,PH,TAIW¥1,360202306

main77012-V2070iAAHH45..CHI,KRE202306

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥3,060202306

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-58070iTAHA40¥42,800202306

main77020-V2020iAAHH4#..GEN,MA,PH,TAIW¥39,000202306

main77020-V2030iAGH40¥46,900202306

main77020-V2080iAAHH45..CHI,KRE202306

main77020-V2100iAAHP45¥39,000202501

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-58041iAGH40¥10,000202306

main77024-58060iTAHA40¥10,000202306

main77024-V2020iAAHH4#..GEN,MA,PH,TAIW¥2,710202306

main77024-V2060iAAHH45..CHI,KRE202306

main77024-V2080iAAHP45¥7,900202501

77100TANK ASSY, FUEL

main77001-V2010iAGH40,TAHA40¥33,200202306

main77001-V2070iAAHH45..CHI,KRE202306

main77001-V2080iAAHH4#..GEN,MA,PH,TAIW¥33,300202306

main77001-V2110iAAHP45¥25,000202501

77103SUB-TANK SUB-ASSY, FUEL

main77103-42120iAAHH4#,AAHP45¥2,920202306

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-V2011iAAHH4#¥1,750202306

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAAHH4#¥1,270202306

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iAAHH4#¥700202306

main77169-53010iAAHP45,AGH40,TAHA40¥1,170202306

77173BRACKET, FUEL GAGE

main77173-12020iAAHH4#¥460202306

77175SUPPORT, FUEL SUCTION, NO.2

main77175-12030iAAHH4#,AAHP45¥510202306

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-V2010iAGH40,TAHA40¥3,400202306

main77209-V2040iAAHH4#¥1,630202306

main77209-V2100iAAHP45¥1,880202501

77210PIPE ASSY, FUEL TANK FILLER

main77210-V2020iAGH40..L;TAHA40..RHD..V..GEN¥10,100202306

HONG KONG SPEC

main77210-V2020iAGH40..L;TAHA40..RHD..V..GEN¥10,100202306

MACAU SPEC

main77210-V2030iTAHA40..V;AGH40..MA;AGH40..G,L202306

main77210-V2040iAAHH45..CHI,KRE202306

main77210-V2050iAAHH40..(T,Z)..GEN¥9,800202501

main77210-V2050iAAHH45..TAIW;AAHH4#..RHD..L¥9,800202306

HONG KONG SPEC

main77210-V2050iAAHH45..TAIW;AAHH4#..RHD..L¥9,800202306

MACAU SPEC

main77210-V2060iAAHH45..RHD..L202306

GRAND CAYMAN SPEC

main77210-V2060iAAHH40..RHD..L202306

INDONESIA SPEC

main77210-V2060iAAHH40..RHD..L202306

THAILAND SPEC

main77210-V2060iAAHH40..RHD..L202306

SRI LANKA SPEC

main77210-V2060iAAHH40..RHD..L202306

BERMUDA SPEC

main77210-V2060iAAHH40..T,Z202306-202501

main77210-V2110iAAHP45¥15,600202501

77241WCLIP, TUBE JOINT

main77241-33011iAGH40,TAHA40¥80202306

main77241-60550iAAHH4#..GEN,MA,PH,TAIW¥50202306

77259GCLIP, FUEL HOSE

main90460-46005iAGH40,TAHA40¥190202306

main90460-50008iAAHH4#..GEN,MA,PH,TAIW¥240202306

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-58010iAAHH4#,AAHP45,AGH40,TAHA40¥390202306

77272CSUPPORT, BREATHER TUBE, NO.3

main77273-58010iAAHH4#,AAHP45,AGH40,TAHA40¥470202306

77273CSUPPORT, BREATHER TUBE, NO.2

main77272-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥510202306

77275CSUPPORT, BREATHER TUBE, NO.4

main77273-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥510202306

77281GCLAMP, FUEL HOSE

main77281-30110iAAHH4#,AGH40,TAHA40..GEN,MA,PH,TAIW¥190202306

main77281-58010iAAHP45;AAHH45..CHI,KRE202306

77285DCLAMP, FUEL TUBE, NO.1

main77285-30350iAAHH4#¥200202306

77285LCLAMP, FUEL TUBE, NO.1

main77285-V2020iAAHH4#,AAHP45,AGH40,TAHA40¥700202306

77286DCLAMP, FUEL TUBE, NO.2

main77286-30180iAAHH4#..GEN,MA,PH,TAIW¥190202306

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-58010iAAHH4#,AGH40,TAHA40..GEN,MA,PH,TAIW¥340202306

main77296-58020iAAHP45;AAHH45..CHI,KRE202306

77310ACAP ASSY, FUEL TANK

main77300-11010iAAHH45..CHI202306

main77300-12020iAAHH4#,AGH40,TAHA40..GEN,MA,PH,TAIW¥1,660202306

main77300-33040iAAHP45;AAHH45..KRE¥2,370202306

77316GASKET, FUEL TANK CAP

main77316-52040iAAHH4#,AGH40,TAHA40..GEN,MA,PH,TAIW¥230202306

main77316-75020iAAHP45;AAHH45..CHI,KRE¥200202306

77511ABRACKET, FUEL TANK

main77511-48030iAAHH4#¥220202306

main77511-V2010iAAHP45¥1,420202501

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-V2010iAGH40,TAHA40¥2,090202306

main77601-V2030iAAHH4#¥1,830202306

main77601-V2050iAAHP45¥1,820202501

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-V2010iAGH40,TAHA40¥2,320202306

main77602-V2030iAAHH4#¥2,090202306

main77602-V2050iAAHP45¥2,090202501

77641BCOVER, FUEL TANK

main77641-V2020iAGH40,TAHA40¥720202306

main77641-V2030iAAHH4#¥720202306

77644BOLT, FUEL TANK

main90119-10A05iAAHH4#,AAHP45,AGH40,TAHA40¥120202306

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iAAHH4#¥230202306

77652ACUSHION, FUEL TANK, NO.2

main77651-35070iAAHH4#¥990202306

77655ACUSHION, FUEL TANK, NO.5

main77655-30080iAAHH4#¥180202306

77656BCUSHION, FUEL TANK, NO.6

main77656-33010iAAHH4#¥250202306

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-12050iAAHH4#,AGH40,TAHA40..GEN,MA,PH,TAIW¥1,090202306

77785HARNESS, FUEL PUMP

main77785-28030iAGH40¥870202306

main77785-33190iAAHP45202501

main77785-42070iAAHH4#¥870202306

main77785-58020iTAHA40¥870202306

8401

9011908D17

main90119-08D17¥100

9011910992

main90119-10992¥190

9011910A05

main90119-10A05¥120

9030108019

main90301-08019¥200

9046040007

main90460-40007¥190

9046623006

main90466-23006¥220

91626B0614

main91626-B0614¥60

50 parts on this diagram · 11 diagrams in section
