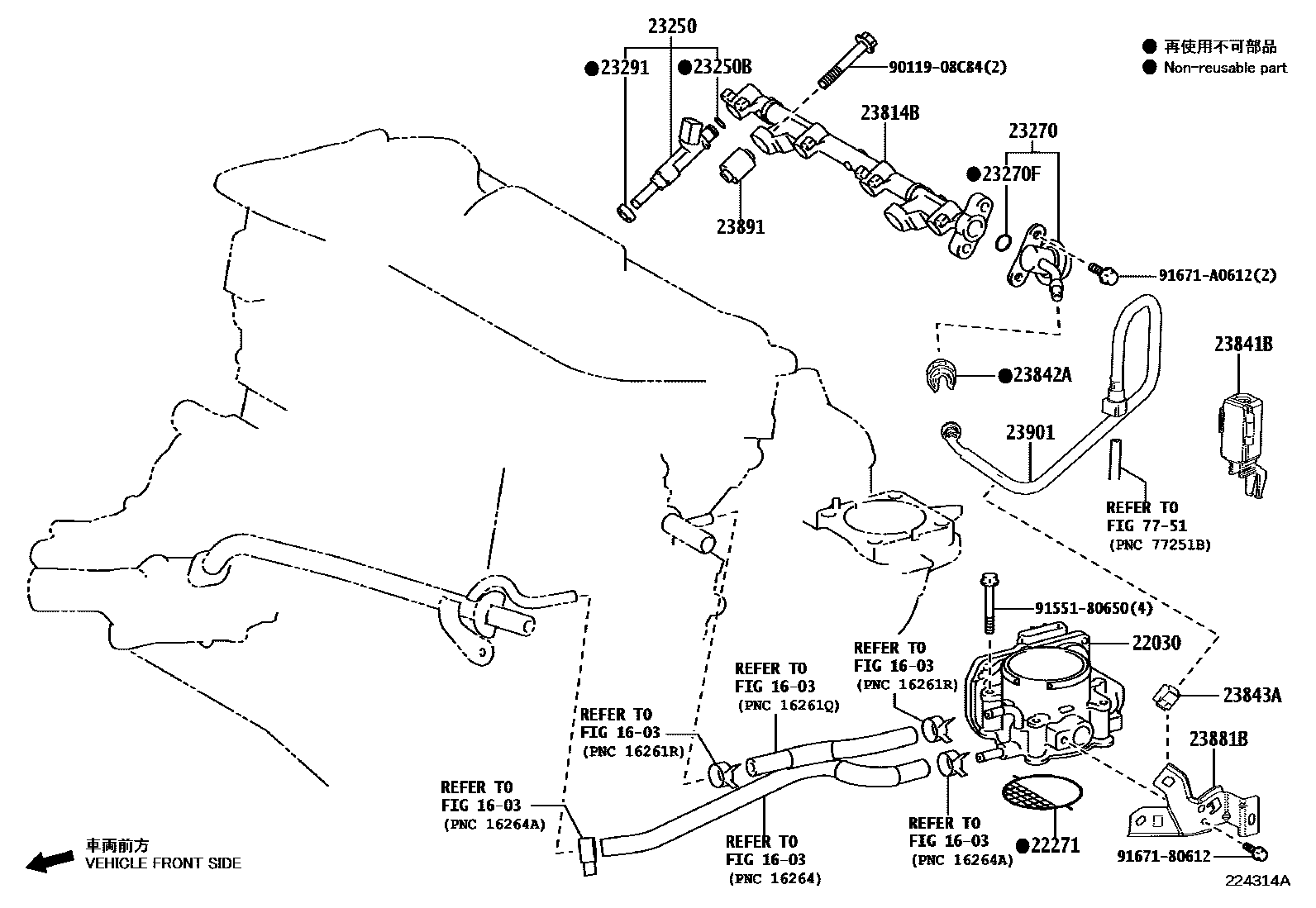

Toyota ALPHARD/VELLFIRE — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-25020iA25..AAHH4#,AAHP45¥52,700202306

main22030-25030iT24AFTS..TAHA40¥52,700202306

main22030-36010i2ARFE..AGH40¥52,700202306

22271GASKET, THROTTLE BODY

main22271-25020iA25..AAHH4#,AAHP45¥320202306

main22271-25030iT24AFTS..TAHA40¥510202306

main22271-36010i2ARFE..AGH40¥0202306

23250INJECTOR ASSY, FUEL

main23209-39175i2ARFE..AGH40¥12,600202306

23250BRING, O(FOR FUEL INJECTOR)

main90301-04019iT24AFTS..TAHA40¥0202306

main90301-07037i2ARFE..AGH40¥140202306

(J)

main90301-A0036iA25..AAHH4#,AAHP45202306

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i2ARFE..AGH40202306

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..AGH40¥140202306

23291INSULATOR, INJECTOR VIBRATION

main23291-28020iT24AFTS..TAHA40¥310202306

23814BPIPE, FUEL DELIVERY

main23814-25011iA25..AAHH4#,AAHP45¥19,600202306

main23814-25040iT24AFTS..TAHA40¥8,900202306

main23814-36040i2ARFE..AGH40¥7,100202306

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-25040iT24AFTS..TAHA40¥460202306

main23841-31070iA25,2ARFE..AAHH4#,AAHP45,AGH40¥400202306

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ARFE..AGH40¥500202306

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-V2010i2ARFE..AGH40¥200202306

23881BBRACKET, FUEL HOSE

main23881-V2010i2ARFE..AGH40¥630202306

23891SPACER, FUEL DELIVERY

main23891-24010iT24AFTS..TAHA40¥240202306

main23891-36010i2ARFE..AGH40¥300202306

23901TUBE SUB-ASSY, FUEL

main23901-25160iT24AFTS..TAHA40¥2,930202306

main23901-V2010i2ARFE..AGH40¥3,650202306

main23901-V2030iA25..AAHH4#,AAHP45¥3,650202306

7751

9011908C84

main90119-08C84¥110

9155180650

main91551-80650¥80

9167180612

main91671-80612¥60

91671A0612

main91671-A0612¥60

20 parts on this diagram · 3 diagrams in section
