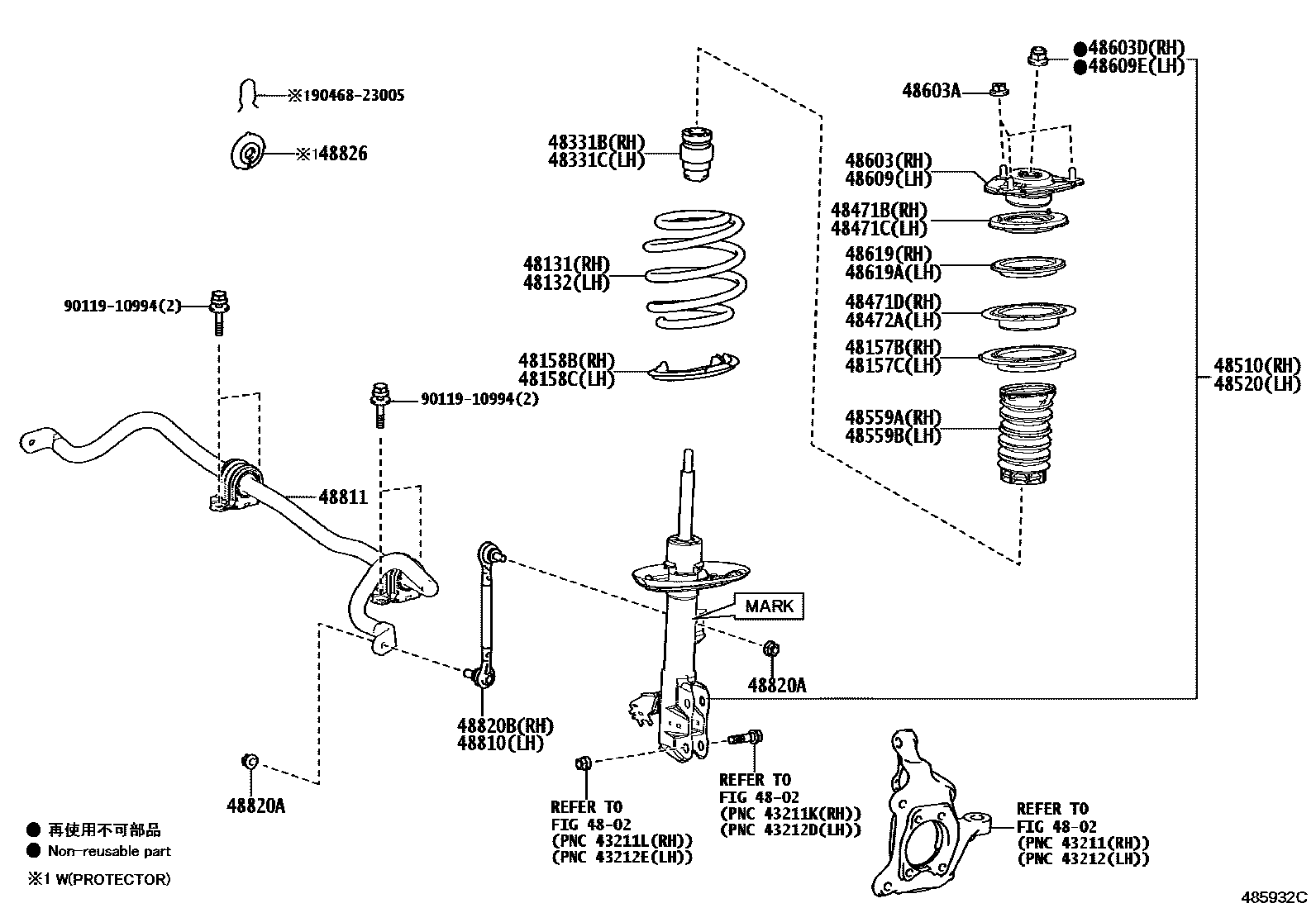

Toyota ALPHARD/VELLFIRE — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-V2020iAGH40202306-202412

main48131-V2040iTAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥6,500202306-202412

main48131-V2130iAGH40202412

main48131-V2150iAAHH40..MA202412

main48131-V2160iAAHP45202501

48132SPRING, FRONT COIL, LH

main48131-V2020iAGH40202306-202412

main48131-V2040iTAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥6,500202306-202412

main48131-V2130iAGH40202412

main48131-V2150iTAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202412

main48131-V2160iAAHP45202501

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-48060iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥740202412

main48157-V1010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥740202306-202412

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-48060iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥740202412

main48157-V1010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥740202306-202412

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33110iAAHH40,AAHP45..MA,TAIW¥950202306

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33110iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥950202306

48331BBUMPER, FRONT SPRING, RH

main48331-48080iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥730202306

48331CBUMPER, FRONT SPRING, LH

main48331-48080iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥730202306

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48159-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥460202306-202412

main48159-V2020iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202412

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48159-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥460202306-202412

main48159-V2020iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202412

48471DSEAT, FRONT SPRING, RH

main48471-V1010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥1,200202306-202412

48472ASEAT, FRONT SPRING, LH

main48471-V1010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥1,200202306-202412

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-V9045iAGH40..G,L¥16,000202306

MARK 48510-V2020

main48510-V9055iAGH40..T¥16,000202306

MARK 48510-V2027

main48510-V9075iAAHH4#,TAHA40..(T,Z)..(CHI,GEN)202306

MARK 48510-V2040

main48510-V9095iAAHH4#,TAHA40..L,V202306

MARK 48510-V2060

main48510-V9185iAAHP45202501

MARK 48510-V2190

main48510-V9195iAAHP45202501

MARK 48510-V2200

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-V9045iAGH40..G,L¥16,000202306

MARK 48520-V2020

main48520-V9055iAGH40..T¥16,000202306

MARK 48520-V2070

main48520-V9075iAAHH40..MA202306

MARK 48520-V2040

main48520-V9095iAAHH4#,TAHA40..L,V202306

MARK 48520-V2060

main48520-V9145iAAHP45202501

MARK 48520-V2190

main48520-V9155iAAHP45202501

MARK 48520-V2200

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-42010iAAHH40,AAHP45..MA,TAIW¥1,290202306

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-42010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥1,290202306

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥4,250202306

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥100202306

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥120202306

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-V2010iAAHH40,AAHP45..MA,TAIW¥4,250202306

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iAAHH40,AAHP45..MA,TAIW¥120202306

48619BEARING, STRUT MOUNTING, RH

main48619-48011iAAHH40,AAHP45..MA,TAIW¥2,280202412

main48619-V1010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥2,280202306-202412

48619ABEARING, STRUT MOUNTING, LH

main48619-48011iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥2,280202412

main48619-V1010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥2,280202306-202412

48810LINK ASSY, FRONT STABILIZER, LH

main48820-V2010iAAHH40,AAHP45..MA,TAIW¥4,350202306

48811BAR, STABILIZER, FRONT

main48804-V2010iAGH40¥9,400202306

main48804-V2020iTAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥9,900202306

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥100202306

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥4,350202306

48826PROTECTOR, FRONT STABILIZER BAR

main48826-42010iTAHA40¥310202306

9011910994

main90119-10994¥190

9046823005

main90468-23005¥160

31 parts on this diagram · 1 diagram in section
