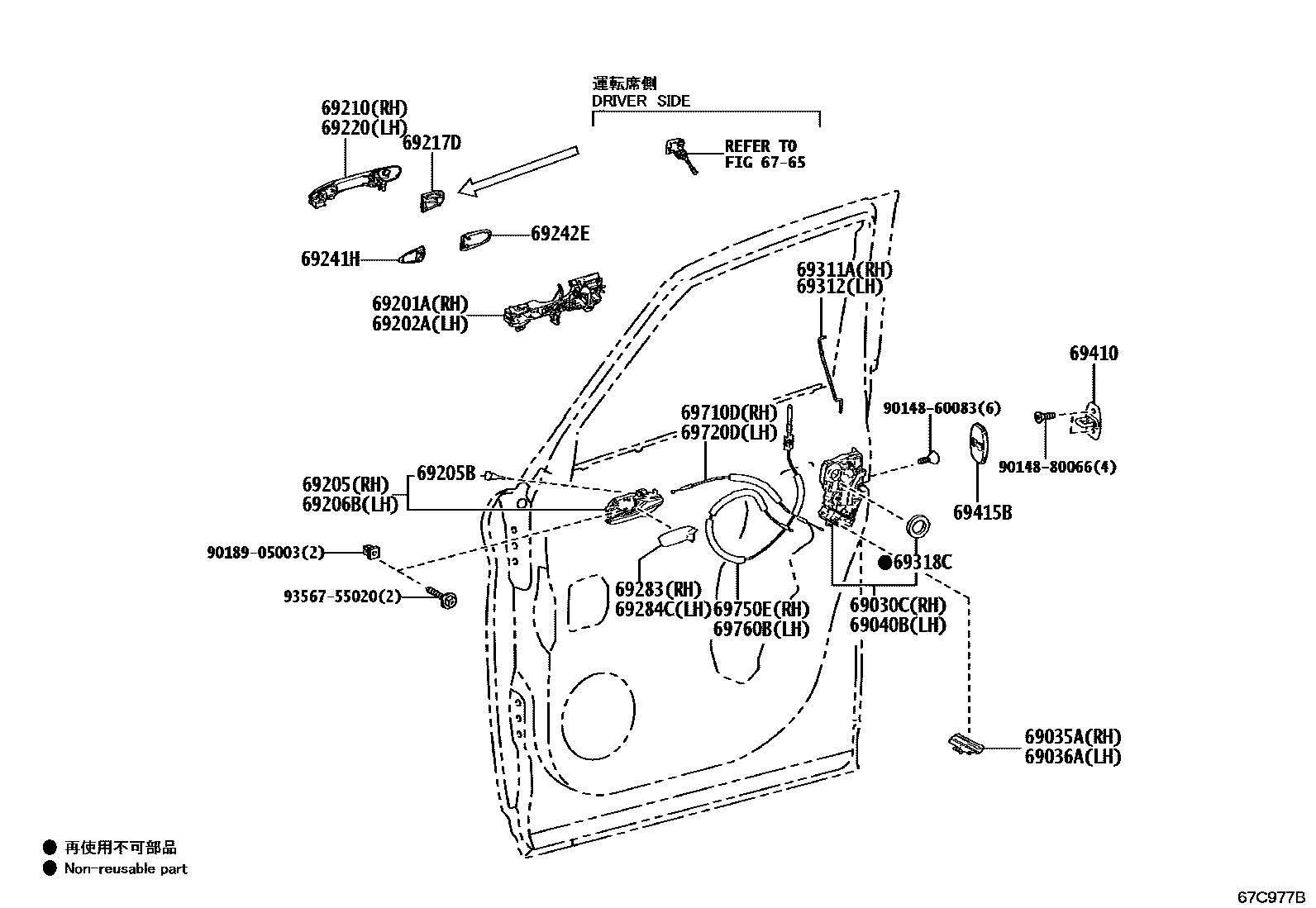

Toyota ALPHARD/VELLFIRE — FRONT DOOR LOCK & HANDLE

6765

69030CLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, RH

main69030-28190iAAHH4#,AGH40,TAHA40..RHD¥11,900202306

main69030-42270iAAHH45..KRE¥11,300202306

main69030-V2010iAAHH4#,AAHP45,TAHA40..LHD..(CHI,GEN,PH,TAIW)202306

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iAAHH4#,AAHP45,AGH40,TAHA40¥220202306

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iAAHH4#,AAHP45,AGH40,TAHA40¥220202306

69040BLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, LH

main69040-42260iAAHH45..KRE¥11,900202306

main69040-42310iAAHH4#,AAHP45,TAHA40..LHD..(CHI,GEN,PH,TAIW)¥11,900202306

main69040-V2010iAAHH4#,AGH40,TAHA40..RHD¥11,300202306

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iAAHH4#,AAHP45,AGH40,TAHA40¥4,210202306

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iAAHH4#,AAHP45,AGH40,TAHA40¥4,210202306

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30220iAAHH4#,AAHP45,AGH40,TAHA40¥2,470202306

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main69275-30070iAAHH4#,AAHP45,AGH40,TAHA40¥80202306

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30220iAAHH4#,AAHP45,AGH40,TAHA40¥2,470202306

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-48120iAAHH4#,AGH40,TAHA40..RHD¥9,700202306

PLATED

main69210-48130iAAHH4#,AAHP45,TAHA40..LHD¥9,700202306

PLATED

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-47020iAAHH4#,AAHP45,AGH40,TAHA40¥450202306

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-48120iAAHH4#,AAHP45,TAHA40..LHD¥9,700202306

PLATED

main69210-48130iAAHH4#,AGH40,TAHA40..RHD¥9,700202306

PLATED

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-V2030iAAHH4#,AAHP45,AGH40,TAHA40¥400202306

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030iAAHH4#,AAHP45,AGH40,TAHA40¥400202306

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30070-C1iAAHH45..LHD..GEN202306

BLACK,TRIM4#

sub69283-30070¥430

main69283-30070-C1iAAHH45..LHD..GEN202306

BLACK,TRIM2#

sub69283-30070¥430

main69283-30070-C1iAAHH45..LHD..GEN202306

BLACK,TRIM2#,4#

sub69283-30070¥430

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30070-C1iAAHH45..LHD..GEN202306

BLACK,TRIM4#

sub69284-30070¥430

main69284-30070-C1iAAHH45..LHD..GEN202306

BLACK,TRIM2#

sub69284-30070¥430

main69284-30070-C1iAAHH45..LHD..GEN202306

BLACK,TRIM2#,4#

sub69284-30070¥430

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥410202306

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥410202306

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iAAHH4#,AAHP45,AGH40,TAHA40¥120202306

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030iAAHH4#,AAHP45,AGH40,TAHA40¥1,240202306

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020iAAHH4#,AAHP45,AGH40,TAHA40¥270202306

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥1,050202306

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥1,050202306

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥1,750202306

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-V2010iAAHH4#,AAHP45,AGH40,TAHA40¥1,750202306

9014860083

main90148-60083¥60

9014880066

main90148-80066¥60

9018905003

main90189-05003¥130

9356755020

main93567-55020¥70

30 parts on this diagram · 1 diagram in section
