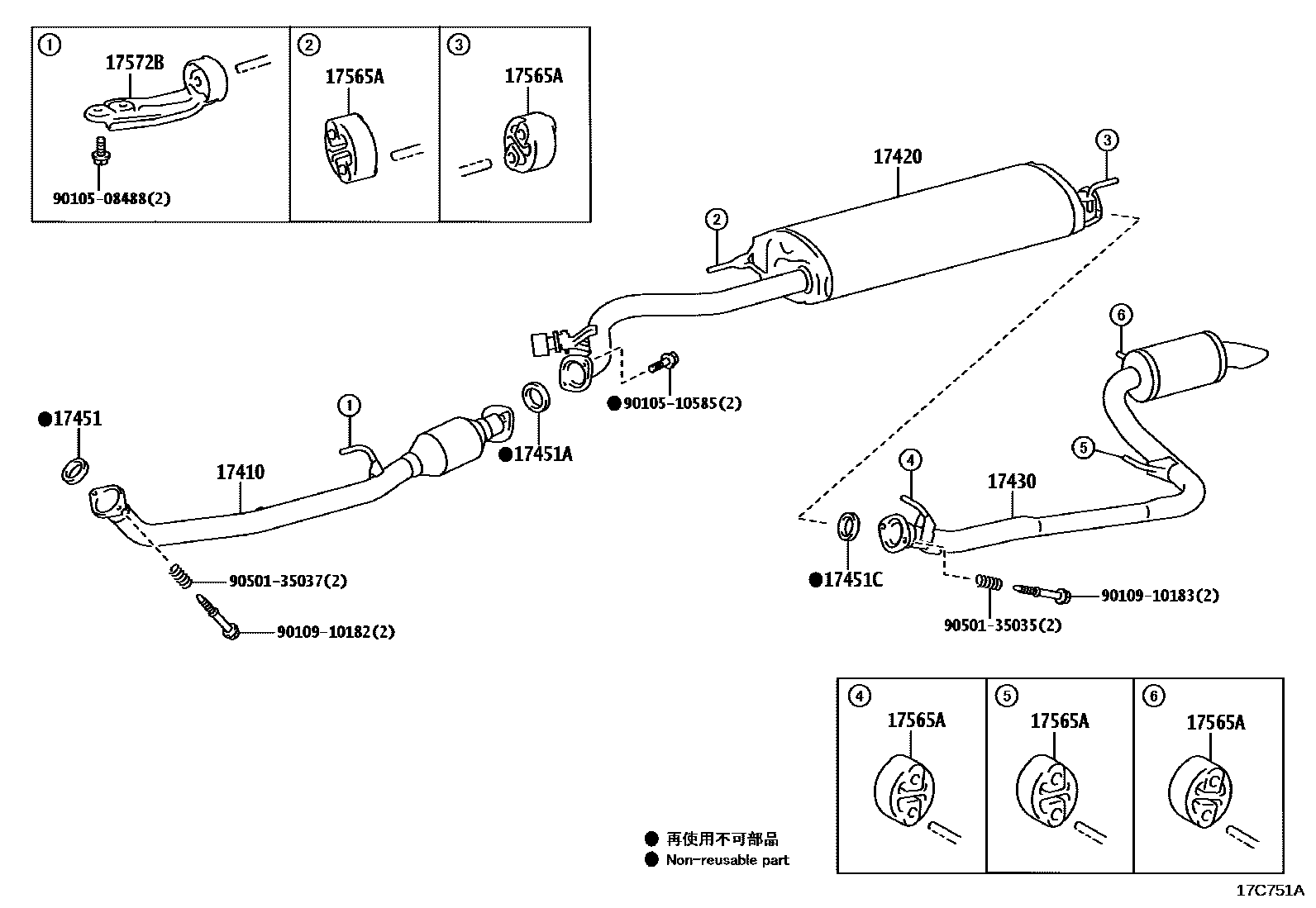

Toyota ALPHARD/VELLFIRE — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-V2010i2ARFE..AGH40..(L,T)..GEN¥54,100202306

main17410-V2020i2ARFE..AGH40..G;2ARFE..AGH40..MA202306

INDONESIA SPEC

main17410-V2020i2ARFE..AGH40..G;2ARFE..AGH40..MA202306

SRI LANKA SPEC

main17410-V2020i2ARFE..AGH40..L202306

BRUNEI SPEC

main17410-V2040iA25..AAHH40..MA202501

main17410-V2040iA25..AAHH4#..LHD..L..GEN;A25..AAHH40..(T,V,Z)..GEN202306

INDONESIA SPEC

main17410-V2040iA25..AAHH4#..LHD..L..GEN;A25..AAHH40..(T,V,Z)..GEN202306

SRI LANKA SPEC

main17410-V2050iA25..AAHH45..CHI202306

main17410-V2060iA25..AAHH45..KRE202306

main17410-V2190iA25..AAHH40..LHD..GEN¥85,800202306

LAOS SPEC

main17410-V2190iA25..AAHH40..LHD..GEN¥85,800202306

URUGUAY SPEC

main17410-V2190iA25..AAHH40..LHD..GEN¥85,800202306

COSTA RICA SPEC

main17410-V2190iA25..AAHH40..LHD..GEN¥85,800202306

ARUBA SPEC

main17410-V2190iA25..AAHH40..LHD..GEN¥85,800202306

BAHAMA SPEC

main17410-V2190iA25..AAHH40..T¥85,800202306-202410

MACAU SPEC

main17410-V2190iA25..AAHH40..T¥85,800202306-202410

HONG KONG SPEC

main17410-V2190iA25..AAHH40..T¥85,800202306-202410

SINGAPORE SPEC

main17410-V2200iT24AFTS..TAHA40¥69,600202306

main17410-V2220iA25..AAHP45202501

17420PIPE ASSY, EXHAUST, CENTER

main17420-V2020i2ARFE..AGH40..(L,T)..GEN¥42,700202306

main17420-V2030i2ARFE..AGH40..G;2ARFE..AGH40..MA202306

SRI LANKA SPEC

main17420-V2030i2ARFE..AGH40..L202306

BRUNEI SPEC

main17420-V2030i2ARFE..AGH40..L202306

INDONESIA SPEC

17430PIPE ASSY, EXHAUST, TAIL

main17430-V2030i2ARFE..AGH40..(L,T)..GEN¥17,900202306

main17430-V2040iA25..AAHH40..V;A25..AAHH45..RHD;A25..AAHH40..RHD..L;A25..AAHH4#..KRE,PH,TAIW¥17,900202306

BAHAMA SPEC

main17430-V2040iA25..AAHH40..V;A25..AAHH45..RHD;A25..AAHH40..RHD..L;A25..AAHH4#..KRE,PH,TAIW¥17,900202306

HONG KONG SPEC

main17430-V2040iA25..AAHH40..V;A25..AAHH45..RHD;A25..AAHH40..RHD..L;A25..AAHH4#..KRE,PH,TAIW¥17,900202306

SINGAPORE SPEC

main17430-V2040iA25..AAHH40..V;A25..AAHH45..RHD;A25..AAHH40..RHD..L;A25..AAHH4#..KRE,PH,TAIW¥17,900202306

MACAU SPEC

main17430-V2040iA25..AAHH40..V;A25..AAHH45..RHD;A25..AAHH40..RHD..L;A25..AAHH4#..KRE,PH,TAIW¥17,900202306

URUGUAY SPEC

main17430-V2040iA25..AAHH40..V;A25..AAHH45..RHD;A25..AAHH40..RHD..L;A25..AAHH4#..KRE,PH,TAIW¥17,900202306

COSTA RICA SPEC

main17430-V2040iA25..AAHH40..V;A25..AAHH45..RHD;A25..AAHH40..RHD..L;A25..AAHH4#..KRE,PH,TAIW¥17,900202306

ARUBA SPEC

main17430-V2050iA25..AAHH40..V202306

VIETNAM SPEC

main17430-V2050iA25..AAHH40..(T,Z)..GEN;A25..AAHH40..LHD..L..GEN;A25..AAHH45..LHD..(CHI,GEN)202306

CAMBODIA SPEC

main17430-V2050iA25..AAHH40..(T,Z)..GEN;A25..AAHH40..LHD..L..GEN;A25..AAHH45..LHD..(CHI,GEN)202306

DOMINICAN SPEC

main17430-V2050iA25..AAHH40..(T,Z)..GEN;A25..AAHH40..LHD..L..GEN;A25..AAHH45..LHD..(CHI,GEN)202306

SRI LANKA SPEC

main17430-V2050iA25..AAHH40..(T,Z)..GEN;A25..AAHH40..LHD..L..GEN;A25..AAHH45..LHD..(CHI,GEN)202306

GUATEMALA SPEC

main17430-V2050iA25..AAHH40..(T,Z)..GEN;A25..AAHH40..LHD..L..GEN;A25..AAHH45..LHD..(CHI,GEN)202306

PANAMA SPEC

main17430-V2050iA25..AAHH40..(T,Z)..GEN;A25..AAHH40..LHD..L..GEN;A25..AAHH45..LHD..(CHI,GEN)202306

CURACAO SPEC

main17430-V2050iA25..AAHH40..RHD..L202306

INDONESIA SPEC

main17430-V2050iA25..AAHH40..MA202501

main17430-V2060iT24AFTS..TAHA40¥17,900202306

main17430-V2110i2ARFE..AGH40..G;2ARFE..AGH40..MA202306

INDONESIA SPEC

main17430-V2110i2ARFE..AGH40..G;2ARFE..AGH40..MA202306

SRI LANKA SPEC

main17430-V2110i2ARFE..AGH40..L202306

BRUNEI SPEC

main17430-V2130iA25..AAHP45202501

17451GASKET, EXHAUST PIPE

main17451-24010i2ARFE..AGH40¥1,360202306

main90917-06073iA25..AAHH40,AAHP45..MA,TAIW¥450202306

main90917-06090iT24AFTS..TAHA40¥590202306

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06078i2ARFE..AGH40¥340202306

main90917-06089iA25..AAHP45¥500202501

main90917-06090iT24AFTS..TAHA40;A25..AAHH4#..CHI,GEN,KRE,PH,TAIW¥590202306

17451CGASKET, EXHAUST PIPE, NO.3

main17451-V2010i2ARFE..AGH40¥1,360202306

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2ARFE..AGH40¥670202306

main17565-28010iA25..AAHH4#..CHI,GEN,KRE,PH,TAIW¥670202306

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-25040i2ARFE..AGH40;A25..AAHH4#..CHI,GEN,KRE,PH,TAIW¥770202306

main17572-V2010iT24AFTS..TAHA40¥770202306

9010508488

main90105-08488¥80

9010510585

main90105-10585¥120

9010910182

main90109-10182¥190

9010910183

main90109-10183¥190

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

14 parts on this diagram · 4 diagrams in section
