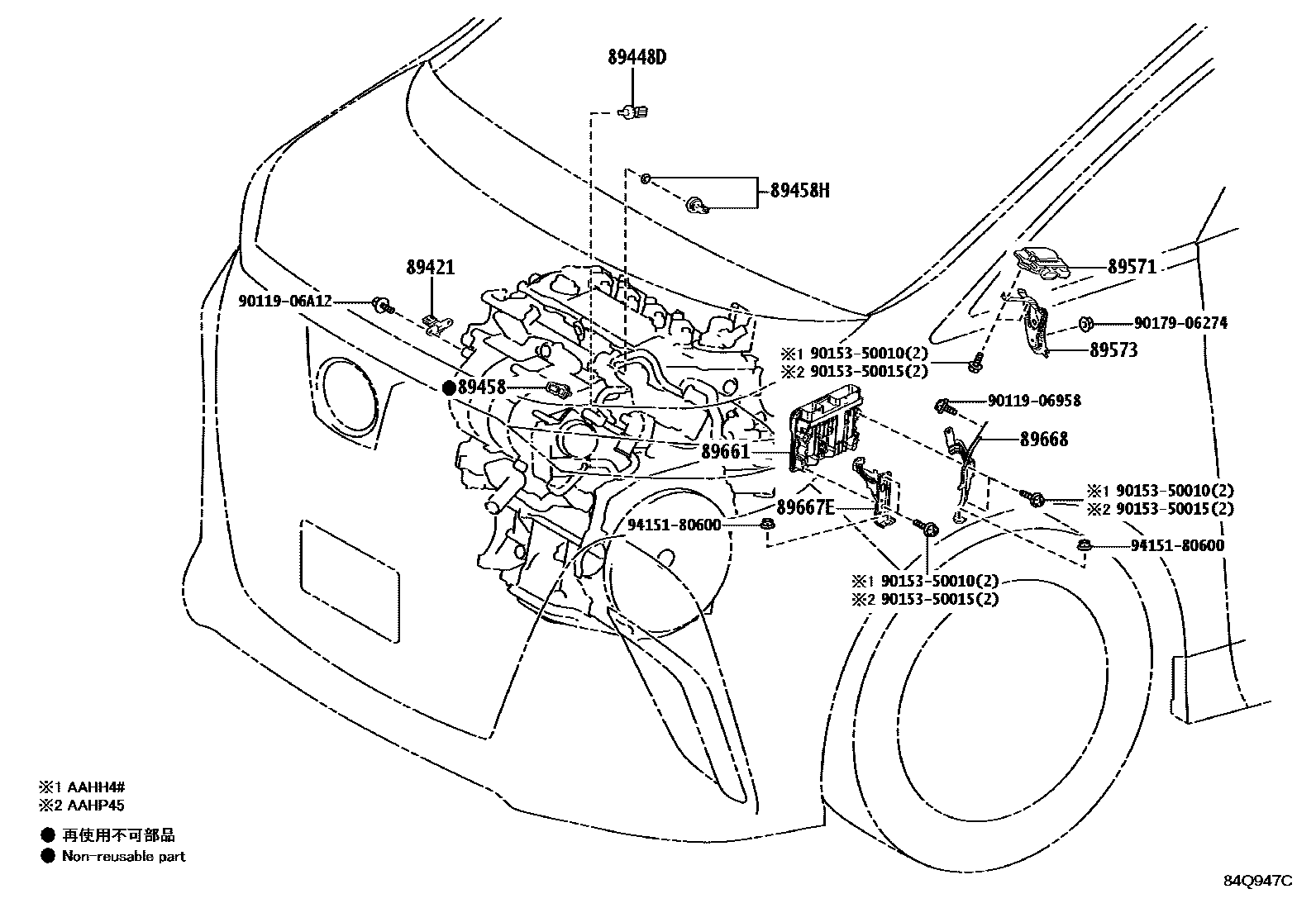

Toyota ALPHARD/VELLFIRE — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAAHH40,AAHP45..MA,TAIW¥5,900202306

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAAHH40,AAHP45..MA,TAIW¥5,700202306

89458SENSOR, FUEL PRESSURE

main89458-33030iAAHH4#..CHI,GEN,KRE,PH,TAIW¥4,320202306

main89458-78030iTAHA40¥4,320202306

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iAAHH40,AAHP45..MA,TAIW¥4,320202306

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAAHH4#..CHI,GEN,KRE,PH,TAIW¥9,900202306

main89571-58020iTAHA40¥10,300202306

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-58010iTAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW¥660202306

89661COMPUTER, ENGINE CONTROL

main89661-58750iTAHA40¥81,000202306

DENSO,*614

main89661-58B10iAAHH40..MA¥81,000202306

DENSO,*614

main89661-58B20iAAHH45..CHI,KRE202306

DENSO,*614

main89661-58B70iAGH40¥81,000202306

DENSO,*614

main89661-58C40iAAHP45¥81,000202501

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42080iAAHH4#¥700202306-202406

main89667-42081iAAHH40,AAHP45..MA,TAIW¥650202407

main89667-48160iTAHA40¥710202306

main89667-58080iAGH40¥440202306

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48170iAAHH4#..CHI,GEN,KRE,PH,TAIW¥1,030202306

main89668-58080iAGH40¥540202306

main89668-58090iTAHA40¥670202306

9011906958

main90119-06958¥60

9011906A12

main90119-06A12¥60

9015350010

main90153-50010¥70

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

9415180600

main94151-80600¥60

15 parts on this diagram · 3 diagrams in section
