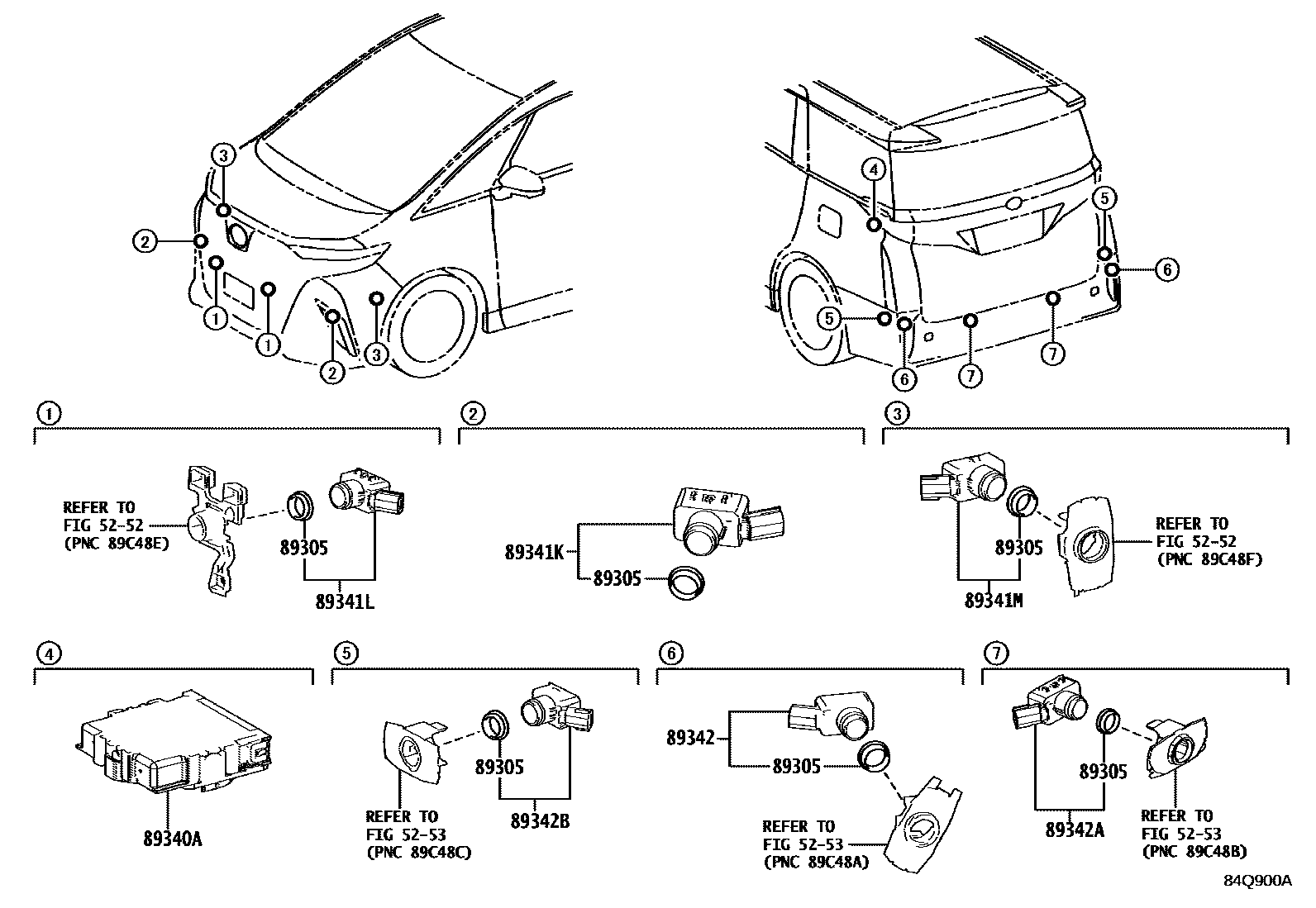

Toyota ALPHARD/VELLFIRE — CLEARANCE & BACK SONAR
5252
5253
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
DUMMY-MAT BLACK
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,BLACK
89341LSENSOR, ULTRASONIC, FRONT CENTER
89341MSENSOR, ULTRASONIC, FRONT SIDE
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-K0060-L5iAAHH45..RHD..(L,V);AAHH45..(L,V)..(CHI,TAIW);AAHH40,AAHP45,AGH40,TAHA40..(G,L,V)..(GEN,MA,TAIW)202306
PRECIOUS LEO-BLOND,4Y7
89342ASENSOR, ULTRASONIC, REAR CENTER
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),PLATINUM WHITE PEARL MC.,089
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,202
main89341-K0060-L5iAAHH45..RHD..(L,V);AAHH45..(L,V)..(CHI,TAIW);AAHH40,AAHP45,AGH40,TAHA40..(G,L,V)..(GEN,MA,TAIW)202306
PRECIOUS LEO-BLOND,4Y7
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),PRECIOUS METAL,1L5
89342BSENSOR, ULTRASONIC, REAR SIDE
10 parts on this diagram · 1 diagram in section
