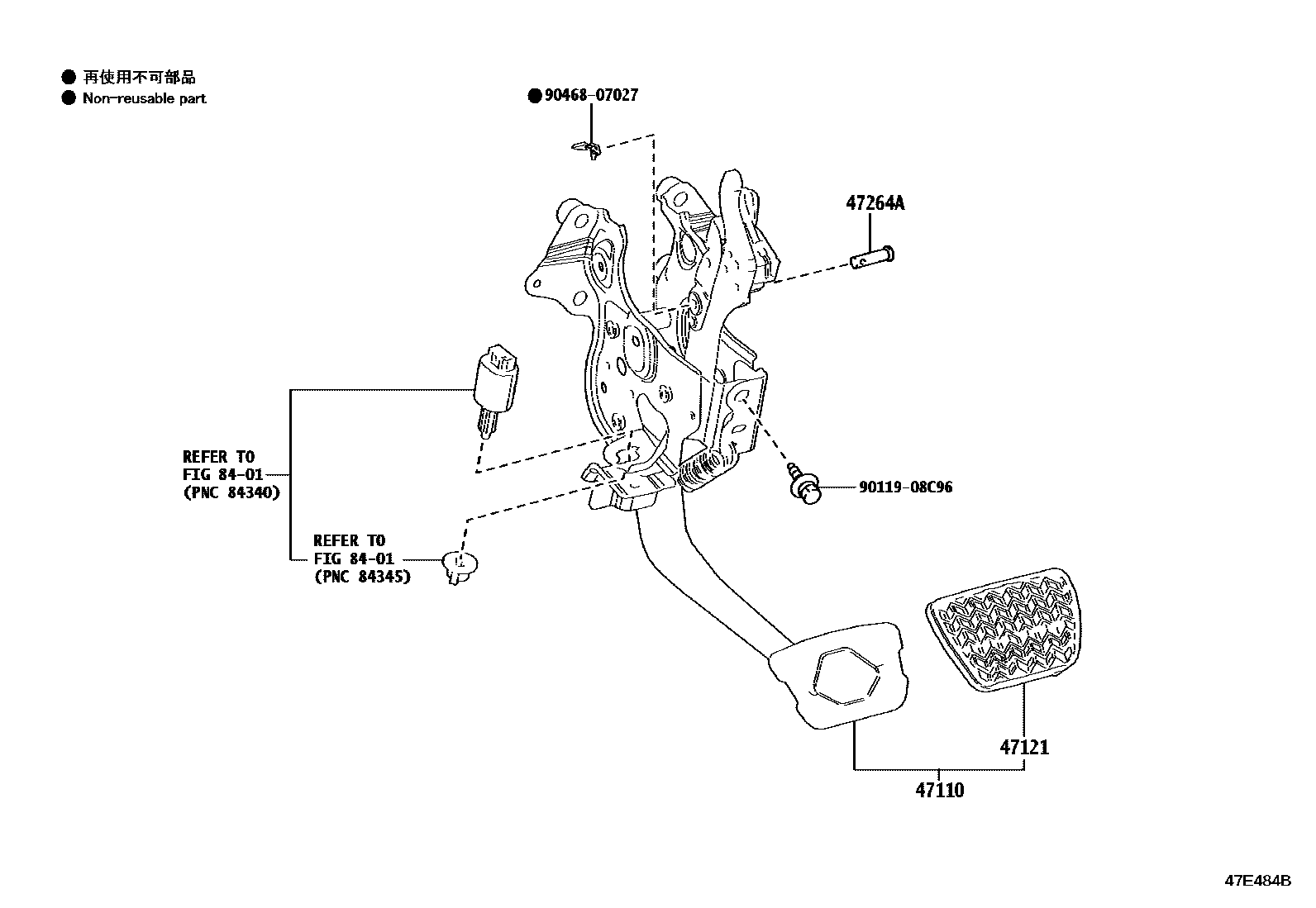

Toyota ALPHARD/VELLFIRE — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47110SUPPORT ASSY, BRAKE PEDAL

main47110-V2010iAGH40,TAHA40..RHD¥8,800202306

main47110-V2020iAAHH4#..RHD¥8,000202306

main47110-V2030iTAHA40..LHD202306

main47110-V2040iAAHH4#,AAHP45..LHD202306

47121PAD, BRAKE PEDAL

main47121-62010iAAHH4#,AAHP45,AGH40,TAHA40¥520202306

47264APIN(FOR PUSH ROD)

main90240-06028iAGH40,TAHA40¥90202306

main90240-08082iAAHH4#,AAHP45¥120202306

8401

9011908C96

main90119-08C96¥80

9046807027

main90468-07027¥60

6 parts on this diagram · 4 diagrams in section
