Toyota ALPHARD/VELLFIRE — BATTERY & BATTERY CABLE

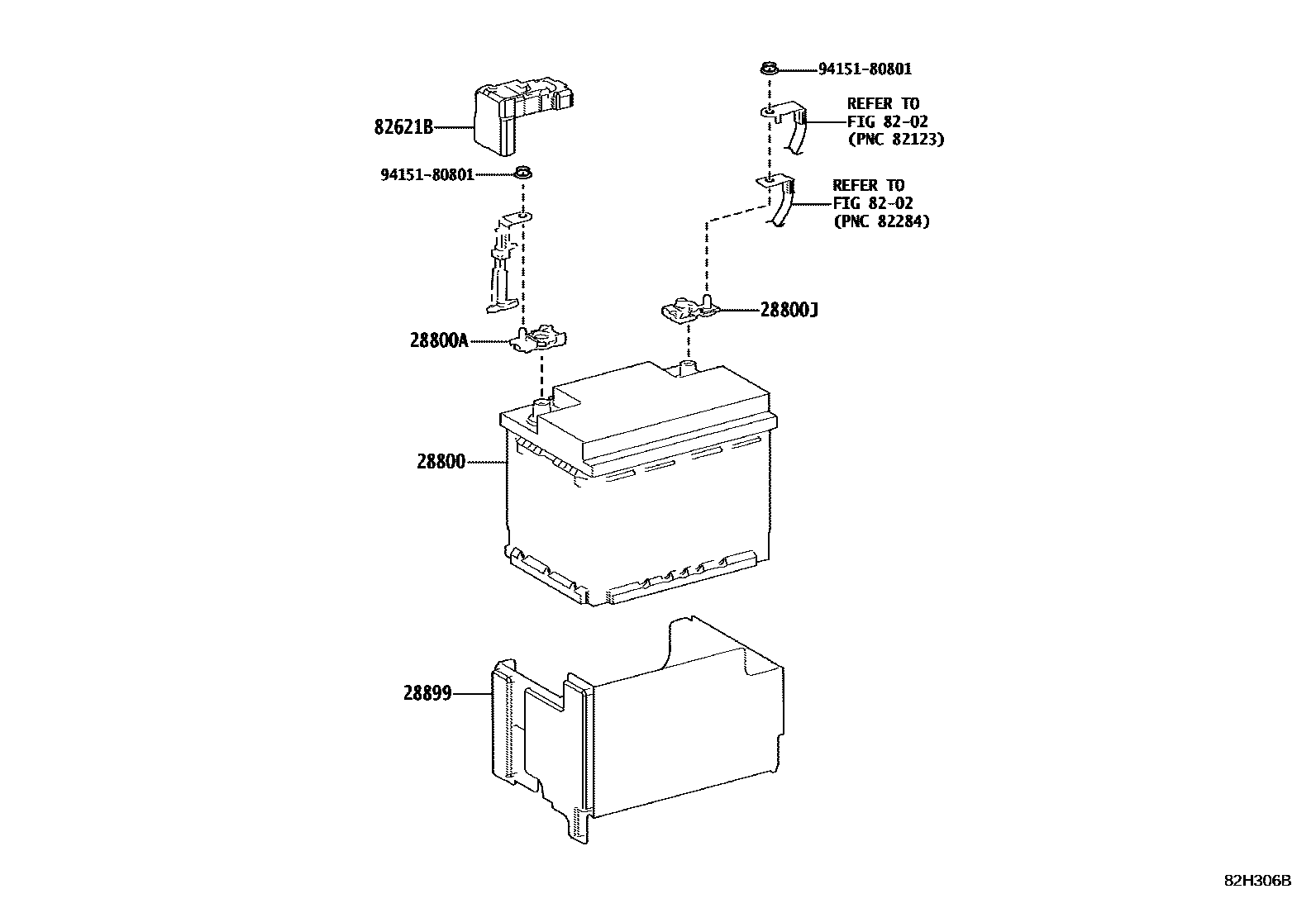

0001 1 0002 1 0003 112V BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY 0007 1HV BATTERY 0008 1HV BATTERY 0009 1HV BATTERY 0010 1HV BATTERY

28800BATTERY

main28800-36132i2ARFE..AGH40¥0202306-202403

LN2

sub28800-36133

main28800-36133iA25..AAHP45202404

LN2

main28800-36221iT24AFTS..TAHA40202306-202403

LN3

sub28800-36222

main28800-36222iT24AFTS..TAHA40202404

LN3

main28800-37121iA25..AAHH4#..CHI,GEN,KRE,PH,TAIW202306

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05056iT24AFTS,2ARFE..AGH40,TAHA40¥850202306

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061i2ARFE..AGH40¥850202306

28899INSULATOR, BATTERY

main28877-V2010iA25..AAHH4#..CHI,GEN,KRE,PH,TAIW¥460202306

main28899-V2010i2ARFE..AGH40¥1,130202306

main28899-V2020iT24AFTS..TAHA40¥1,190202306

8202

82621BCOVER, FUSIBLE LINK

main82621-V2010iAAHH4#..CHI,GEN,KRE,PH,TAIW¥400202306

main82621-V2030iAGH40,TAHA40¥630202306

9415180801

main94151-80801¥80

7 parts on this diagram · 10 diagrams in section
