Toyota ALPHARD/VELLFIREBACK DOOR LOCK & HINGE

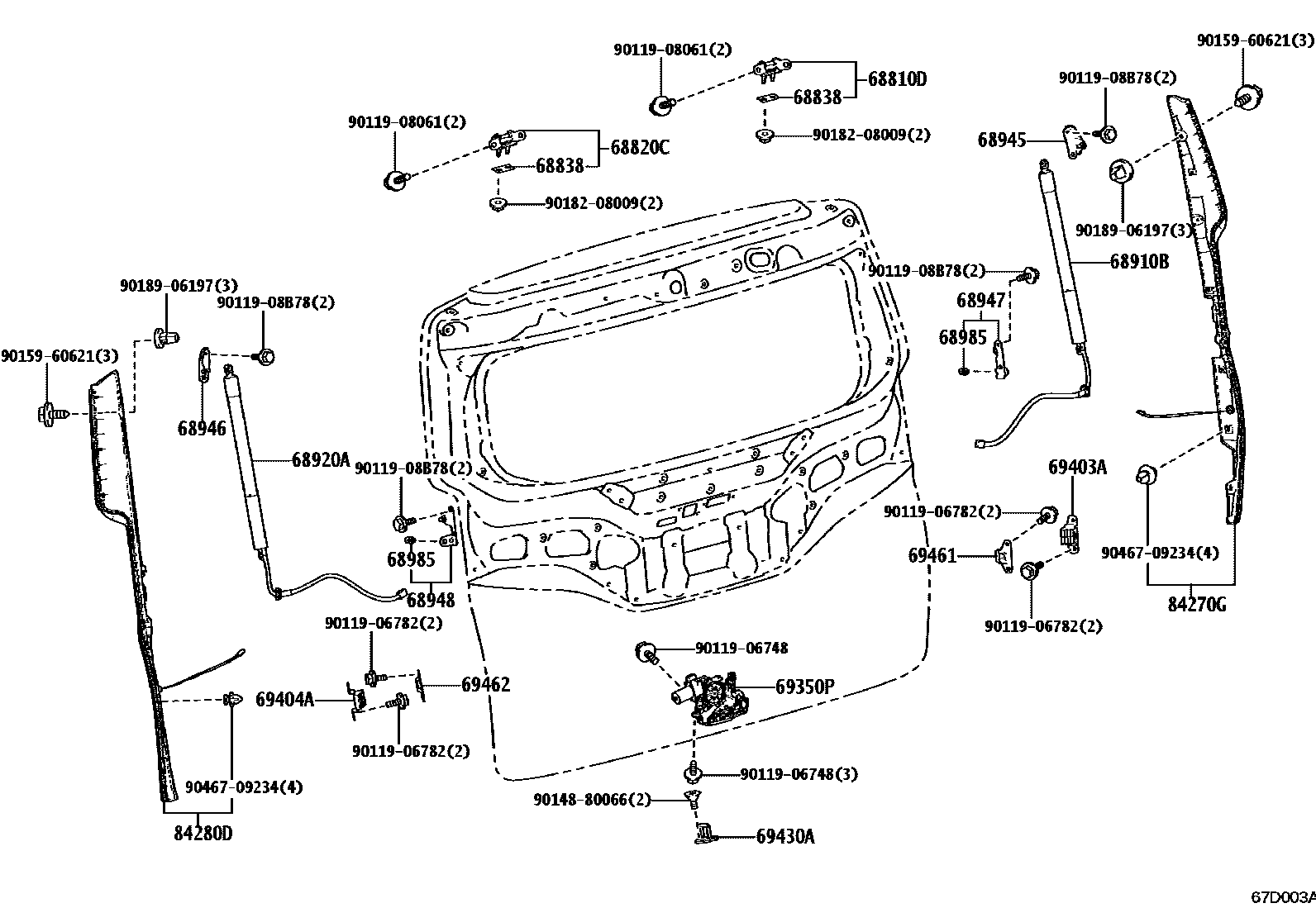

Parts diagram
68810DHINGE ASSY, BACK DOOR, RH
main68810-26030i¥1,530202306
68820CHINGE ASSY, BACK DOOR, LH
main68820-26030i¥1,530202306
68838PAD, BACK DOOR HINGE, NO.1
main68838-26030i¥160202306
T=1.1
68910BUNIT ASSY, POWER BACK DOOR, RH
main68910-V2010i¥28,300202306
68920AUNIT ASSY, POWER BACK DOOR, LH
main68920-V2010i¥28,300202306
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-V2020i¥660202306
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-V2020i¥660202306
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
main68947-V2010i¥660202306
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
main68948-V2010i¥660202306
68985STOPPER, BACK DOOR UPPER STAY
main68984-V2010i¥190202306
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-V2010i¥14,900202306
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
main67293-58020i¥760202306
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
main67293-58020i¥760202306
69430ASTRIKER ASSY, BACK DOOR LOWER LOCK
main69430-48030i¥1,120202306
69461STOPPER, BACK DOOR SIDE MALE, RH
main67281-58020i¥1,250202306
69462STOPPER, BACK DOOR SIDE MALE, LH
main67281-58020i¥1,250202306
84270GSENSOR ASSY, POWER BACK DOOR, RH
main84270-V2010i¥14,700202306
84280DSENSOR ASSY, POWER BACK DOOR, LH
main84280-V2010i¥14,700202306
9011906748
main90119-06748¥110
9011906782
main90119-06782¥60
9011908061
main90119-08061¥70
9011908B78
main90119-08B78¥80
9014880066
main90148-80066¥60
9015960621
main90159-60621¥60
9018208009
main90182-08009¥100
9018906197
main90189-06197¥70
9046709234
main90467-09234¥80

27 parts on this diagram · 1 diagram in section
