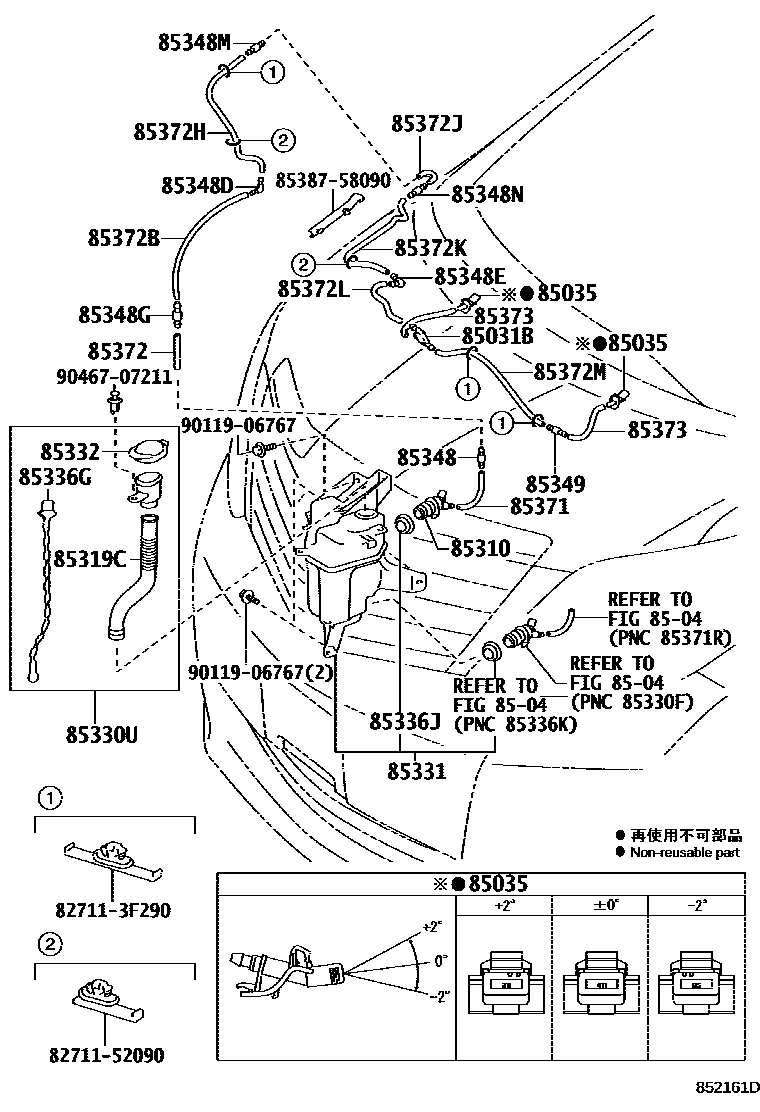

Toyota ALPHARD/VELLFIRE/HV — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
8504
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319CHOSE, WASHER
85330UCAP, WASHER TANK
85331JAR SUB-ASSY, WINDSHIELD WASHER
85332CAP, WINDSHIELD WASHER JAR
85336GGAGE, WATER LEVEL
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8538758090CLAMP NO.1 (FOR WINDSEIELD WASHER)
9011906767
9046707211
31 parts on this diagram · 1 diagram in section
