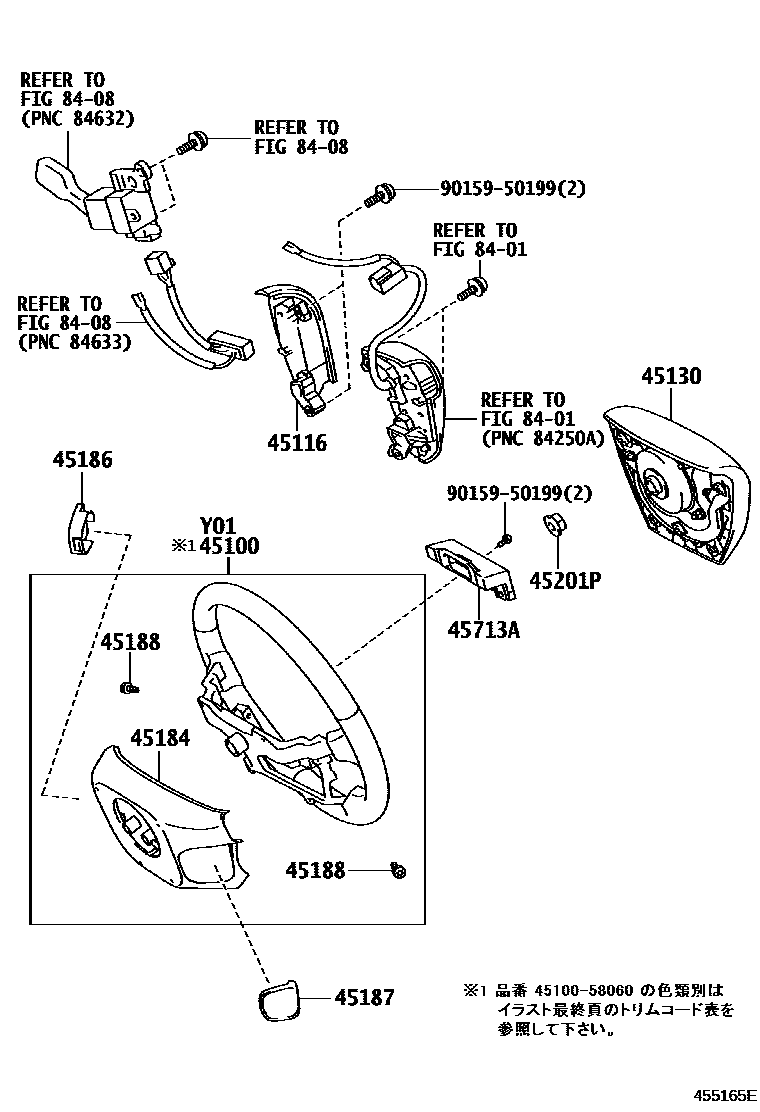

Toyota ALPHARD/VELLFIRE/HV — STEERING WHEEL

0001 14-SPOKE 0002 1������� ���

45100WHEEL ASSY, STEERING

main45100-58050-E0iANH2#..(240X,24X)..CBU200804-201501

main45100-58060-B0iANH2#,GGH2#..08S..(240S,24Z,350S,35Z)200804-201004

main45100-58060-B0iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU200905-201004

main45100-58060-B1iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU200905-201004

main45100-58060-B3iATH20..(HBDSR,HBDZR)..CBU201112-201501

main45100-58060-E0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU200804-201110

main45100-58060-E3iATH20..(HBDG,HBDV,HBDX)..CBU201112-201501

main45100-58060-E3iGGH2#..(350G,35V)..CBU201110-201501

main45100-58060-E4iGGH2#..(350G,35V)..CBU201110-201501

main45100-58060-E4iGGH2#..(350G,35V)..CBU201110-201501

main45100-58070-B1iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201004-201110

main45100-58080-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201110-201305

sub45100-58090¥63,800

main45100-58090-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201305-201311

main45100-58100-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201311-201501

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-58010-B0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU200804-201501

DK.GRAY,TRIM1#

main45116-58010-E0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU200804-201501

DK. BROWN,TRIM0#

45130BUTTON ASSY, HORN

main45130-58030-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201501

DK.GRAY,TRIM1#

main45130-58030-E0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU200804-201501

DK. BROWN,TRIM0#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-58020-B0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU200804-201501

DK.GRAY,TRIM1#

main45184-58020-E0iANH2#,GGH2#..07S..(240S,350S,35Z)..CBU200804-201501

DK. BROWN,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-58030-B0iANH2#..240S,24Z200804-201501

DK.GRAY,TRIM1#

main45186-58030-E0iANH2#..(240X,24X)..CBU200804-201501

DK. BROWN,TRIM0#

main45186-58040-B0iATH20,GGH2#..350S,35Z,HBDSR,HBDZR201110-201501

main45186-58040-B0iANH2#..07S..(240S,24Z)..CBU200804-201501

DK.GRAY,TRIM1#

main45186-58040-B0iANH2#..07S..(240S,24Z)..CBU201110-201501

main45186-58040-E0iGGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,24V,350G,350X,35V,35X)..CBU200804-201501

DK. BROWN,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-58020-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201501

DK.GRAY,TRIM1#

main45187-58020-E0iANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201501

DK. BROWN,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iANH2#,GGH2#..CBU¥160200804-201110

45201PNUT, STEERING WHEEL SET

main90179-12071iANH2#,GGH2#..CBU¥130200804-201110

45713ADAMPER, STEERING SHAKE

main45713-30170iANH2#,GGH2#..CBU¥2,380200804-201110

8401

8408

9015950199

main90159-50199¥70

12 parts on this diagram · 2 diagrams in section
