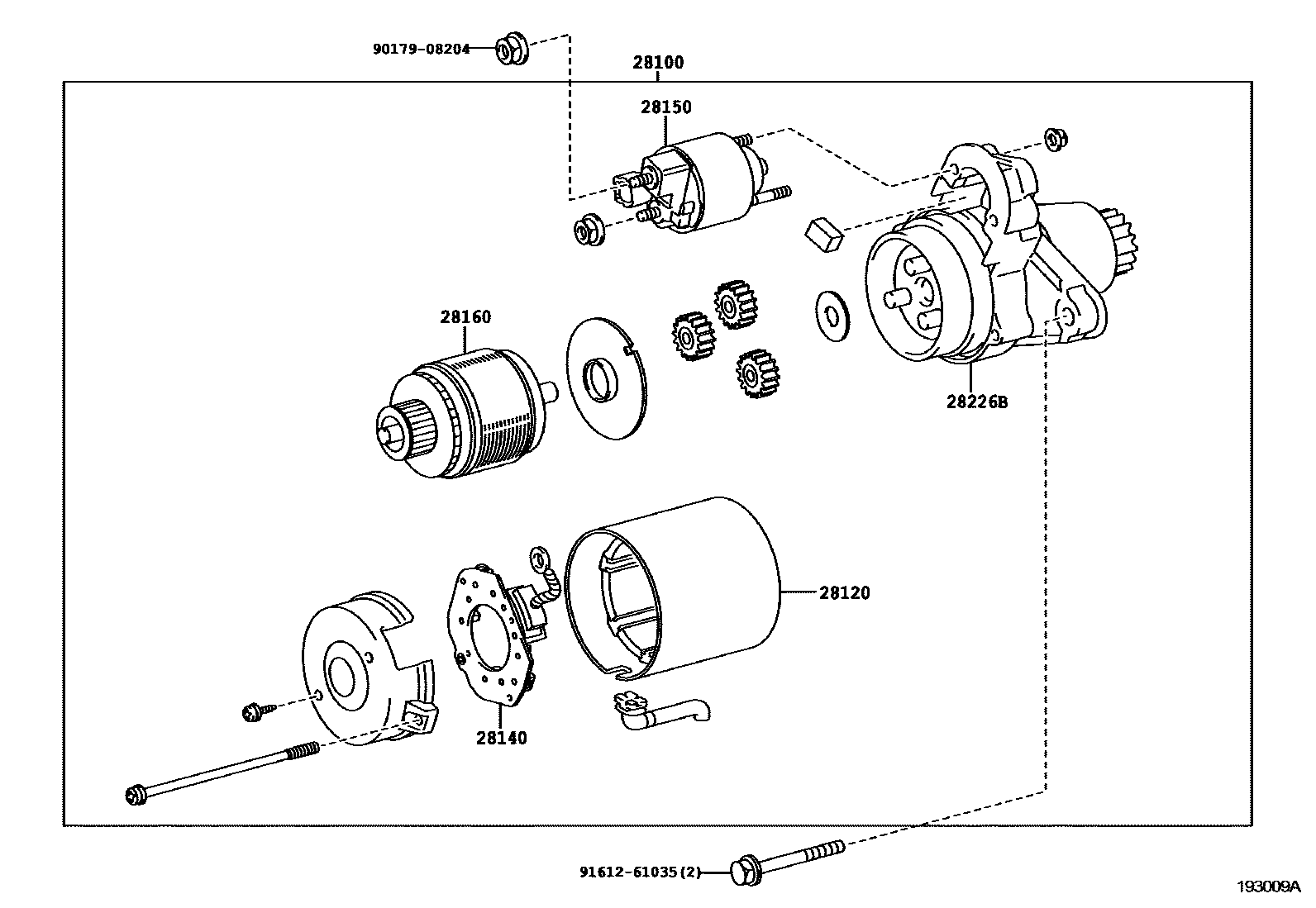

Toyota ALPHARD/VELLFIRE/HV — STARTER

0001 112V 1.6KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-20020i2GRFE..GGH2#..CBU¥105,000200804-200911

sub28100-20021¥105,000

main28100-20021i2GRFE..GGH2#..CBU¥105,000200912-201407

sub28100-20022¥86,900

main28100-20022i2GRFE..GGH2#..CBU¥86,900201408

main28100-31090i2AZFE..ANH2#..CBU¥86,800200804-201110

28120YOKE ASSY, STARTER

main28120-28040i2GRFE..GGH2#..CBU200804-200808

sub28120-28060

main28120-28060i2GRFE..GGH2#..CBU200808-201501

main28120-31090i2AZFE..ANH2#..CBU200804-201501

28140HOLDER ASSY, STARTER BRUSH

main28140-31090i2AZFE..ANH2#..CBU¥0200804-201110

28150SWITCH ASSY, MAGNET STARTER

main28150-31090i2AZFE..ANH2#..CBU¥14,600200804-201110

28160ARMATURE ASSY, STARTER

main28160-28040i2GRFE..GGH2#..CBU¥14,900200804-201501

main28160-37050i2AZFE..ANH2#..CBU¥17,400200804-201501

sub28160-75210¥13,100

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2GRFE..GGH2#..CBU200804-201501

main28226-31090i2AZFE..ANH2#..CBU200804-201501

9017908204

main90179-08204¥140

9161261035

main91612-61035¥100

8 parts on this diagram · 2 diagrams in section
