Toyota ALPHARD/VELLFIRE/HV — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-58040iANH2#,GGH2#..CBU¥12,100200804-201110

�E��

main86150-58050iANH2#,GGH2#..CBU¥12,100200804-201110

����

main86150-58100iANH2#,ATH20,GGH2#..CBU¥12,100201110

�E��

main86150-58110iANH2#,ATH20,GGH2#..CBU¥12,100201110

����

86150BSPEAKER ASSY, W/BOX, NO.2

86160SPEAKER ASSY, FRONT NO.1

main86160-58240iANH2#,GGH2#..CBU¥8,400200804-201110

main86160-58240iANH2#,ATH20,GGH2#..CBU¥8,400201110

86160JSPEAKER ASSY, FRONT NO.3

86160MSPEAKER ASSY, ROOF

86160PSPEAKER ASSY, FRONT NO.2

main86160-58260iANH2#,GGH2#..CBU¥7,800200804-201110

main86160-58260iANH2#,ATH20,GGH2#..CBU¥7,800201110

86160QSPEAKER ASSY, ROOF

86160YSPEAKER ASSY, REAR NO.2

86160ZSPEAKER ASSY, REAR NO.3

9015950327

main90159-50327¥70

9015960303

main90159-60303¥70

9017906274

main90179-06274¥70

9018906227

main90189-06227¥70

9026905034

main90269-05034¥140

9167380616

main91673-80616¥60

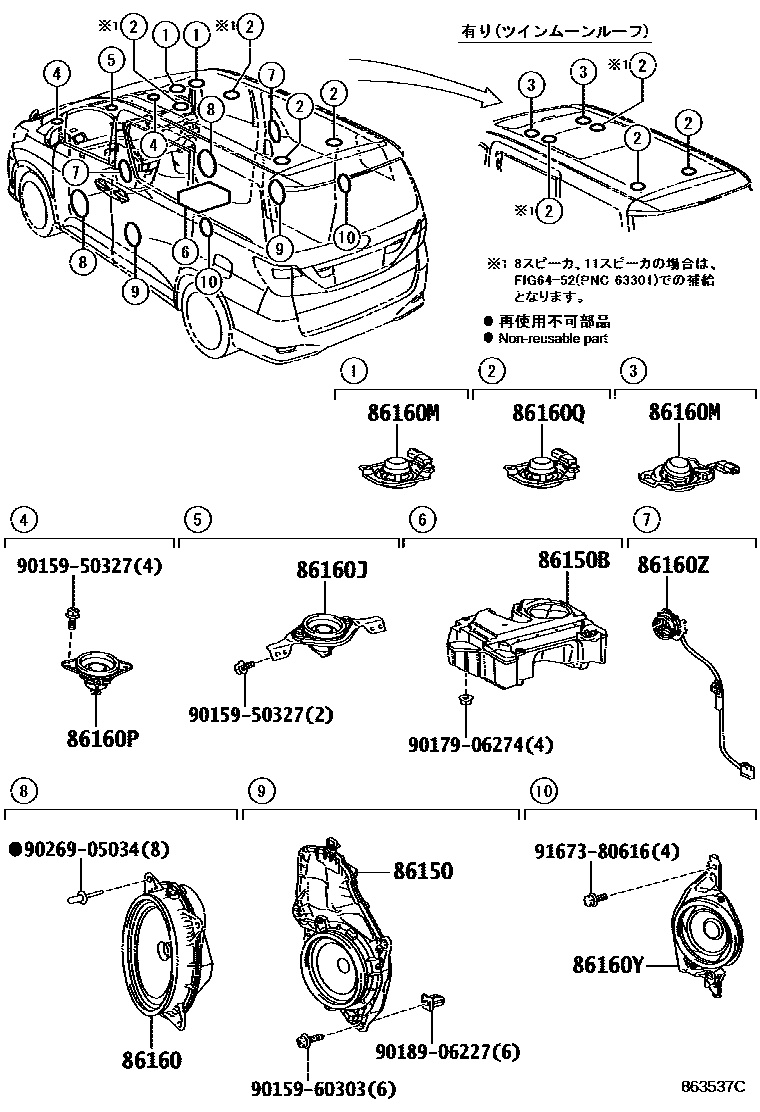

15 parts on this diagram · 1 diagram in section
