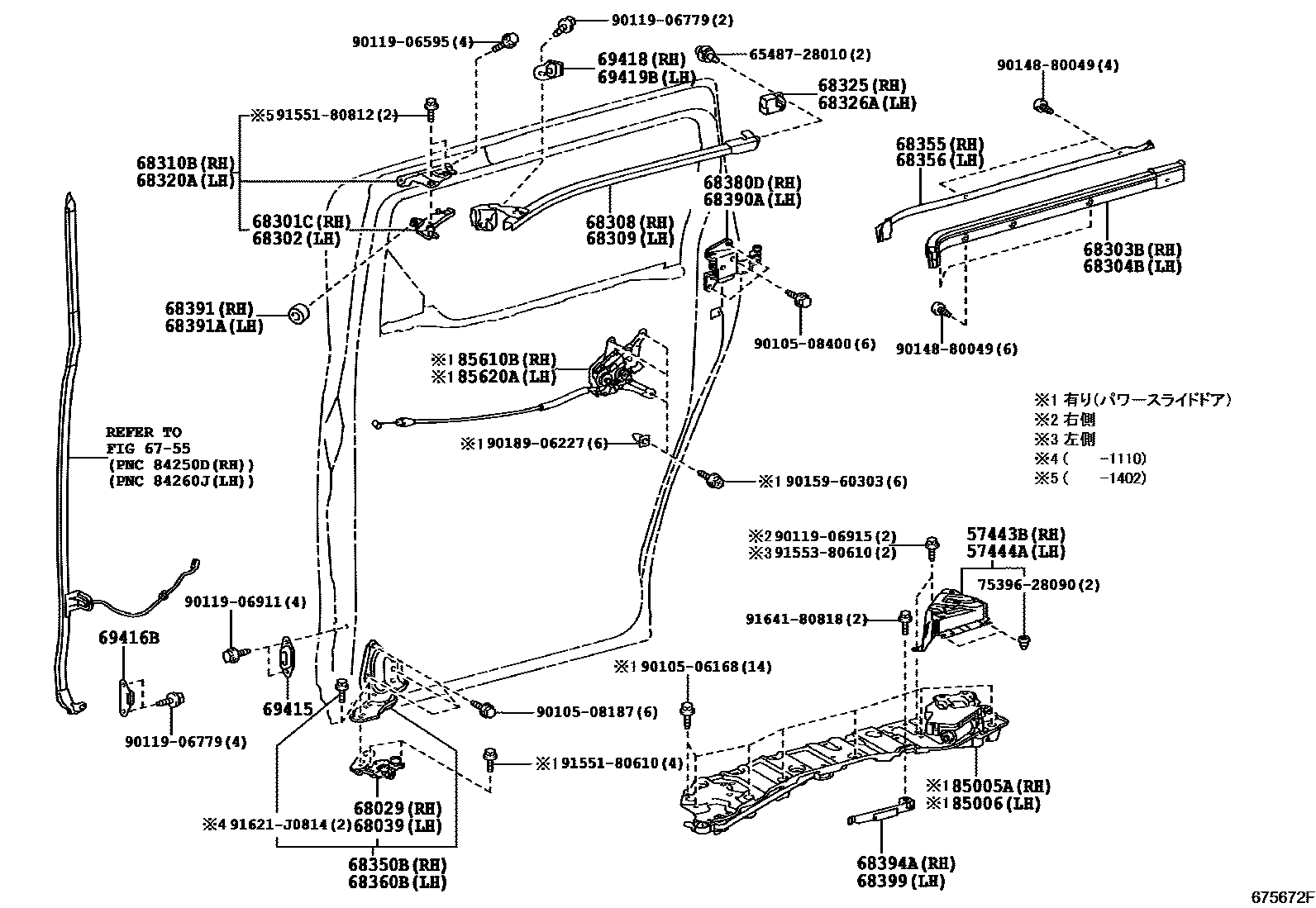

Toyota ALPHARD/VELLFIRE/HV — SLIDE ROLLER & RAIL

57443BSUPPORT, SIDE STEP, REAR RH

main51078-28020iANH2#,ATH20,GGH2#..CBU¥2,650200804-201110

57444ASUPPORT, SIDE STEP, REAR LH

main51079-28040iANH2#,ATH20,GGH2#..CBU¥2,640200804-201110

6755

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-58020iANH2#,ATH20,GGH2#..CBU¥5,300200804-201501

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-58020iANH2#,GGH2#..CBU¥5,300200804-201501

68301CROLLER SUB-ASSY, SLIDE DOOR, UPPER RH

main68301-58020iANH2#,GGH2#..CBU¥2,300200804-201101

sub68301-58030¥2,300

main68301-58030iANH2#,GGH2#..CBU¥2,300201101-201401

sub68301-58031¥2,300

main68301-58031iANH2#,ATH20,GGH2#..CBU¥2,300201402-201501

68302ROLLER SUB-ASSY, SLIDE DOOR, UPPER LH

main68302-58020iANH2#,GGH2#..CBU¥2,300200804-201101

sub68302-58030¥2,300

main68302-58030iANH2#,GGH2#..CBU¥2,300201101-201401

sub68302-58031¥2,300

main68302-58031iANH2#,ATH20,GGH2#..CBU¥2,300201402-201501

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-58020iANH2#,GGH2#..CBU¥11,400200804-201110

main68303-58030iANH2#,ATH20,GGH2#..CBU¥11,400201110

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-58020iANH2#,GGH2#..CBU¥11,400200804-201110

main68304-58030iANH2#,ATH20,GGH2#..CBU¥11,400201110

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-58020iANH2#,GGH2#..CBU¥5,400200804-201501

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-58020iANH2#,GGH2#..CBU¥5,400200804-201501

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-58020iANH2#,GGH2#..CBU¥7,700200804-201012

sub68310-58040¥7,700

main68310-58040iANH2#,GGH2#..CBU¥7,700201101-201401

sub68310-58041¥7,700

main68310-58041iANH2#,ATH20,GGH2#..CBU¥7,700201402-201501

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-58020iANH2#,GGH2#..CBU¥7,700200804-201012

sub68320-58040¥7,700

main68320-58040iANH2#,GGH2#..CBU¥7,700201101-201401

sub68320-58041¥7,700

main68320-58041iANH2#,ATH20,GGH2#..CBU¥7,700201402-201501

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-58020iANH2#,GGH2#..CBU¥1,790200804-201110

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-58020iANH2#,GGH2#..CBU¥1,790200804-201110

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-58020iANH2#,GGH2#..CBU¥13,900200804-201501

68355GARNISH, SLIDE DOOR CENTER RAIL, RH

main60835-58020iANH2#,GGH2#..CBU¥4,120200804-201110

68356GARNISH, SLIDE DOOR CENTER RAIL, LH

main60836-58020iANH2#,GGH2#..CBU¥4,120200804-201110

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-58020iANH2#,GGH2#..CBU¥13,900200804-201501

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-58040iANH2#,GGH2#..CBU¥6,100200804-201002

sub68380-58120¥6,100

main68380-58120iANH2#,GGH2#..CBU¥6,100201003-201110

main68380-58130iANH2#,ATH20,GGH2#..CBU¥6,100201110-201501

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-58030iANH2#,GGH2#..CBU¥6,100200804-201002

sub68390-58090¥6,100

main68390-58090iANH2#,GGH2#..CBU¥6,100201003-201110

main68390-58100iANH2#,ATH20,GGH2#..CBU¥6,100201110-201501

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iANH2#,GGH2#..CBU¥200200804-201110

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iANH2#,GGH2#..CBU¥200200804-201110

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-28030iANH2#,GGH2#..CBU¥500200804-201110

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-28040iANH2#,GGH2#..CBU¥380200804-201110

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-28021iANH2#,GGH2#..CBU¥1,040200804-201404

sub69415-58020¥780

main69415-58020iANH2#,ATH20,GGH2#..CBU¥780201405

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-28020iANH2#,ATH20,GGH2#..CBU¥270200912-201110

main69046-28080iANH2#,GGH2#..CBU¥380200804-200809

sub69046-58010¥450

main69046-58010iANH2#,GGH2#..CBU¥450200810-200911

sub69046-28020¥270

69418STOP, SLIDE DOOR OPEN

main69418-28100iANH2#,GGH2#..CBU¥540200804-201110

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28040iANH2#,GGH2#..CBU¥540200804-201110

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-58020iANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU¥78,700200804-201008

sub85005-58021¥78,700

main85005-58020iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥78,700200804-201008

sub85005-58021¥78,700

main85005-58020iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥78,700200804-201008

sub85005-58021¥78,700

main85005-58021iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥78,700201009-201010

sub85005-58040¥78,700

main85005-58021iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥78,700201009-201010

sub85005-58040¥78,700

main85005-58021iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥78,700201009-201010

sub85005-58040¥78,700

main85005-58040iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥78,700201011-201110

sub85005-58041¥78,700

main85005-58040iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥78,700201011-201111

sub85005-58041¥78,700

main85005-58040iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥78,700201011-201111

sub85005-58041¥78,700

main85005-58041iANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU¥78,700201112-201207

sub85005-58042¥78,700

main85005-58041iANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU¥78,700201112-201207

sub85005-58042¥78,700

main85005-58042iANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU¥78,700201208

main85005-58042iANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU¥78,700201208

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-58020iANH2#,GGH2#..CBU¥78,700200804-201008

sub85006-58021¥78,700

main85006-58021iANH2#,GGH2#..CBU¥78,700201009-201010

sub85006-58030¥78,700

main85006-58030iANH2#,GGH2#..CBU¥78,700201011-201111

sub85006-58031¥78,700

main85006-58031iANH2#,ATH20,GGH2#..CBU¥78,700201112-201207

sub85006-58032¥78,700

main85006-58032iANH2#,ATH20,GGH2#..CBU¥78,700201208

85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH

main85610-58020iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥26,200200804-201110

main85610-58020iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥26,200200804-201110

main85610-58020iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥26,200200804-201110

85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH

main85620-58030iANH2#,GGH2#..CBU¥26,200200804-201110

6548728010CLIP, CORNER PROTECTOR

main65487-28010¥130

7539628090CLIP, OUTSIDE MOULDING, NO.2

main75396-28090¥90

9010506168

main90105-06168¥120

9010508187

main90105-08187¥90

9010508400

main90105-08400¥110

9011906595

main90119-06595¥220

9011906779

main90119-06779¥60

9011906911

main90119-06911¥80

9011906915

main90119-06915¥60

9014880049

main90148-80049¥60

9015960303

main90159-60303¥70

9018906227

main90189-06227¥70

9155180610

main91551-80610¥60

9155180812

main91551-80812¥80

9155380610

main91553-80610¥60

91621J0814

main91621-J0814¥60

9164180818

main91641-80818¥80

50 parts on this diagram · 1 diagram in section
