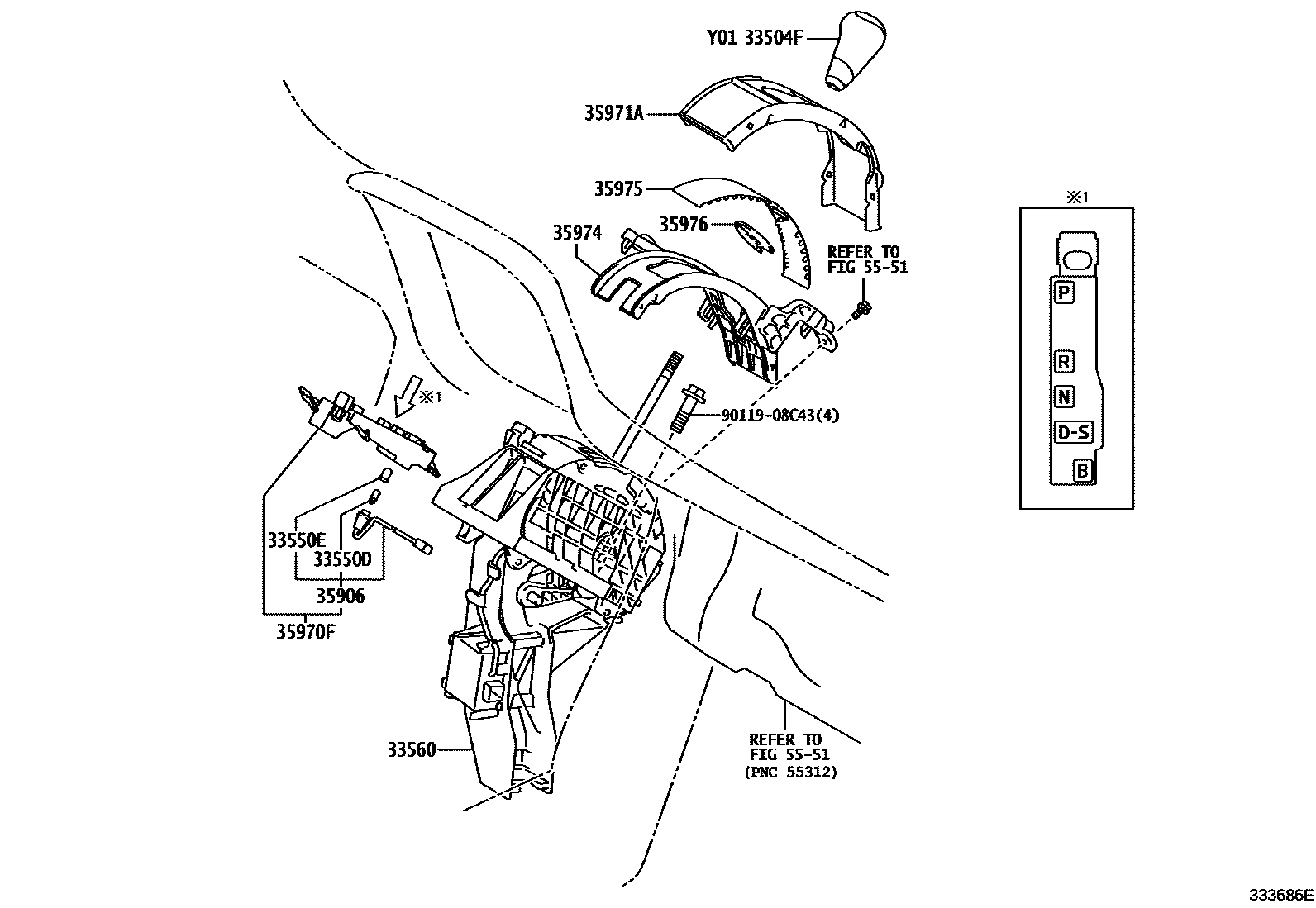

Toyota ALPHARD/VELLFIRE/HV — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-28030-B2iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201110-201501

DK.GRAY,TRIM1#

sub33504-72020¥7,200

sub33504-28030¥7,200

main33504-58030-E0iANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201006

DK. BROWN,TRIM0#

sub33504-58030¥3,610

main33504-58030-E1iANH2#,GGH2#..(240X,24X,350X,35X)..CBU201006-201501

DK. BROWN,TRIM0#

sub33504-58030¥3,610

main33504-58040-E0iGGH2#..07S..(350S,35Z)..CBU200804-201006

DK. BROWN,TRIM0#

sub33504-58040¥9,000

main33504-58040-E0iGGH2#..07S..(350S,35Z)..CBU200804-201006

sub33504-58040¥9,000

main33504-58040-E1iGGH2#..07S..(350S,35Z)..CBU201006-201110

DK. BROWN & DARK BROWN,TRIM0#

sub33504-58040¥9,000

main33504-58040-E1iANH2#,GGH2#..(240G,24V,350G,35V)..CBU201006-201110

sub33504-58040¥9,000

main33504-58050-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201004

DK.GRAY,TRIM1#

sub33504-58050¥9,000

main33504-58050-B2iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU201010-201110

DK.GRAY & DK.RED,TRIM19

sub33504-58050¥9,000

main33504-58050-B2iANH2#,GGH2#..08S..(240S,24Z,350S,35Z)201004-201110

DK.GRAY & DK.RED,TRIM1#

sub33504-58050¥9,000

main33504-58050-B3iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU201010-201110

DK.GRAY & BLACK,TRIM19

sub33504-58050¥9,000

main33504-58050-B4iATH20..(HBDSR,HBDZR)..CBU201112-201501

DK.GRAY & BLACK,TRIM1#

sub33504-58050¥9,000

main33504-58050-E0iGGH2#..(350G,35V)..CBU201110-201501

sub33504-58050¥9,000

main33504-58050-E0iATH20..(HBDG,HBDV,HBDX)..CBU201112-201501

DK. BROWN & BLACK,TRIM0#

sub33504-58050¥9,000

main33504-58050-E1iANH2#..(240G,24V)..CBU201110-201501

sub33504-58050¥9,000

main33504-58050-E1iANH2#..(240G,24V)..CBU201110-201501

DK. BROWN,TRIM0#

sub33504-58050¥9,000

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iANH2#,GGH2#..CBU¥140200804-201110

33550ECAP, POSITION INDICATOR LAMP

main35956-58010iANH2#,GGH2#..CBU¥120200804-201110

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-58040iANH2#,GGH2#..CBU¥29,200200804-201110

main33560-58050iATH20¥29,200201112

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-58020iANH2#,GGH2#..CBU¥1,150200804-201110

35970FHOUSING ASSY, POSITION INDICATOR

main35970-58040iANH2#..CBU¥7,200200804-201501

main35970-58050iGGH2#..CBU¥7,200200804-201501

main35970-58060iATH20..CBU¥7,100201112-201501

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-58010iANH2#,GGH2#..CBU¥1,290200804-201110

main35971-58030iATH20¥1,450201112

35974HOUSING, POSITION INDICATOR, LOWER

main35974-58010iANH2#,GGH2#..CBU¥4,210200804-201110

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-58020iANH2#,GGH2#..CBU¥740200804-201110

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-28010iANH2#,GGH2#..CBU¥400200804-201110

5551

9011908C43

main90119-08C43¥100

12 parts on this diagram · 4 diagrams in section
