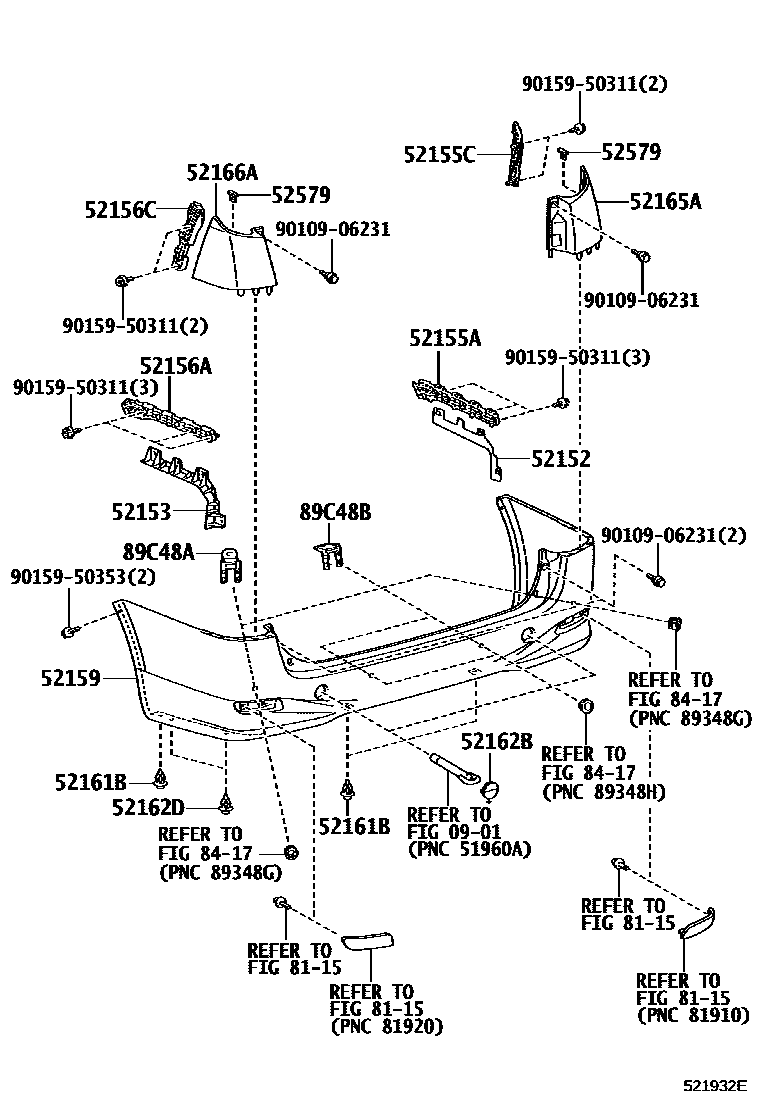

Toyota ALPHARD/VELLFIRE/HV — REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1G'S

0901

52152BAR, REAR BUMPER, RH

main52152-58010iANH2#,GGH2#..CBU¥2,130200804-201110

main52152-58010iANH2#,ATH20,GGH2#..CBU¥2,130201110-201501

52153BAR, REAR BUMPER, LH

main52153-58010iANH2#,GGH2#..CBU¥2,170200804-201101

main52153-58020iANH2#,GGH2#..CBU¥2,130201101-201110

main52153-58020iANH2#,ATH20,GGH2#..CBU¥2,130201110-201501

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-58030iANH2#,GGH2#..CBU¥2,830200804-201110

main52155-58030iANH2#,ATH20,GGH2#..CBU¥2,830201110-201501

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-58020iANH2#,GGH2#..CBU¥1,650200804-201110

main52155-58020iANH2#,ATH20,GGH2#..CBU¥1,650201110-201501

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-58020iANH2#,GGH2#..CBU¥2,830200804-201110

main52156-58020iANH2#,ATH20,GGH2#..CBU¥2,830201110-201501

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-58010iANH2#,GGH2#..CBU¥1,650200804-201110

main52156-58010iANH2#,ATH20,GGH2#..CBU¥1,650201110-201501

52159COVER, REAR BUMPER

main52159-58070-A0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

WHITE PEARL CS.,070

sub52159-58913¥48,600

main52159-58070-B0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

SILVER ME.,1F7

sub52159-58913¥48,600

main52159-58070-C0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

BLACK,202

sub52159-58913¥48,600

main52159-58070-D0iANH2#,GGH2#..(24V,24X,35V,35X)..CBU200804-201110

BORDEAUX M.M.,3R9

sub52159-58913¥48,600

main52159-58070-E0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

BEIGE ME.,4T8

sub52159-58913¥48,600

main52159-58070-E1iANH2#,GGH2#..(240G,240X,350G,350X)..CBU200804-201110

GOLD PEARL CS.,4U1

sub52159-58913¥48,600

main52159-58070-J0iANH2#,GGH2#..(240G,240X,24V,350G,350X,35V)..CBU200804-201110

DK.BLUE MC.,8S6

sub52159-58913¥48,600

main52159-58080-A0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

WHITE PEARL CS.,070

sub52159-58919¥53,300

main52159-58080-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

SILVER ME.,1E4

sub52159-58919¥53,300

main52159-58080-B1iANH2#,GGH2#..(24Z,35Z)..CBU200804-201110

SILVER ME.,1F7

sub52159-58919¥53,300

main52159-58080-B2iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU200905-201110

GRAY ME.,1G3

sub52159-58919¥53,300

main52159-58080-C0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

BLACK,202

sub52159-58919¥53,300

main52159-58080-D0iANH2#,GGH2#..(24Z,35Z)..CBU200804-201110

BORDEAUX M.M.,3R9

sub52159-58919¥53,300

main52159-58080-E0iANH2#,GGH2#..(240S,350S)..CBU200804-201110

GOLD PEARL CS.,4U1

sub52159-58919¥53,300

main52159-58080-J0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

DK.BLUE MC.,8S6

sub52159-58919¥53,300

main52159-58120-A0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

WHITE PEARL CS.,070

sub52159-58916¥48,600

main52159-58120-B1iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

SILVER ME.,1F7

sub52159-58916¥48,600

main52159-58120-C0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

BLACK,202

sub52159-58916¥48,600

main52159-58120-D0iANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU201110-201501

BORDEAUX M.M,3R9

sub52159-58916¥48,600

main52159-58120-E0iANH2#,ATH20,GGH2#..ALPHD..(240G,240X,350G,HBDG,HBDX)..CBU201110-201501

GOLD PEARL CS.,4U1

sub52159-58916¥48,600

main52159-58120-J0iANH2#,ATH20,GGH2#..ALPHD..(240G,240X,350G,HBDG,HBDX)..CBU201110-201501

DARK BLUE MC.,8P8

sub52159-58916¥48,600

main52159-58120-J1iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

LT.BLUE ME.,8Q6

sub52159-58916¥48,600

main52159-58130-A0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

WHITE PEARL CS.,070

sub52159-58925¥53,300

main52159-58130-B0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

SILVER ME.,1E4

sub52159-58925¥53,300

main52159-58130-C0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

BLACK,202

sub52159-58925¥53,300

main52159-58130-D0iANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU201110-201501

BORDEAUX M.M,3R9

sub52159-58925¥53,300

main52159-58130-E0iANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU201110-201501

GOLD PEARL CS.,4U1

sub52159-58925¥53,300

main52159-58130-J0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

DARK BLUE MC.,8P8

sub52159-58925¥53,300

main52159-58130-K0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

DK.VIOLET M.M.,9AF

sub52159-58925¥53,300

52161BPIECE, REAR BUMPER

main52161-16010iANH2#,GGH2#..CBU¥120200804-201110

main52161-16010iANH2#,ATH20,GGH2#..CBU¥120201110-201501

52162BPLATE, REAR BUMPER, NO.1

main52162-58010-A0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

WHITE PEARL CS.,070

sub52162-58901¥460

main52162-58010-A0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

WHITE PEARL CS.,070

sub52162-58901¥460

main52162-58010-B0iANH2#,GGH2#..(24V,24X,35V)..CBU201110-201501

SILVER ME.,1E4

sub52162-58901¥460

main52162-58010-B1iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

SILVER ME.,1F7

sub52162-58901¥460

main52162-58010-B1iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

SILVER ME.,1F7

sub52162-58901¥460

main52162-58010-C0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

BLACK,202

sub52162-58901¥460

main52162-58010-C0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

BLACK,202

sub52162-58901¥460

main52162-58010-D0iANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU201110-201501

DEEP RED M.M.,3R9

sub52162-58901¥460

main52162-58010-D0iANH2#,GGH2#..(24V,24X,35V,35X)..CBU200804-201110

DEEP RED M.M.,3R9

sub52162-58901¥460

main52162-58010-E0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

BEIGE ME.,4T8

sub52162-58901¥460

main52162-58010-E1iANH2#,ATH20,GGH2#..ALPHD..(240G,240X,350G,HBDG,HBDX)..CBU201110-201501

GOLD PEARL CS.,4U1

sub52162-58901¥460

main52162-58010-E1iANH2#,GGH2#..(240G,240X,350G,350X)..CBU200804-201110

GOLD PEARL CS.,4U1

sub52162-58901¥460

main52162-58010-J0iANH2#,GGH2#..(240G,240X,350G,350X)..CBU200804-201110

DK.BLUE MC.,8S6

sub52162-58901¥460

main52162-58010-J1iANH2#,ATH20,GGH2#..ALPHD..(240G,240X,350G,HBDG,HBDX)..CBU201110-201501

DARK BLUE MC.,8P8

sub52162-58901¥460

main52162-58010-J2iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

LT.BLUE ME.,8Q6

sub52162-58901¥460

52162DPIECE, REAR BUMPER

main52161-16010iANH2#,GGH2#..CBU¥120200804-201110

main52161-16010iANH2#,ATH20,GGH2#..CBU¥120201110-201501

52165ACOVER, REAR BUMPER, UPR RH

main52165-58020-A0iANH2#,ATH20,GGH2#..CBU201110-201501

WHITE PEARL CS.,070

sub52165-58901¥5,900

main52165-58020-A0iANH2#,GGH2#..CBU200804-201110

WHITE PEARL CS.,070

sub52165-58901¥5,900

main52165-58020-B0iANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU201110-201501

SILVER ME.,1E4

sub52165-58901¥5,900

main52165-58020-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

SILVER ME.,1E4

sub52165-58901¥5,900

main52165-58020-B1iANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU200804-201110

SILVER ME.,1F7

sub52165-58901¥5,900

main52165-58020-B1iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

SILVER ME.,1F7

sub52165-58901¥5,900

main52165-58020-B2iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU200905-201110

GRAY ME.,1G3

sub52165-58901¥5,900

main52165-58020-C0iANH2#,ATH20,GGH2#..CBU201110-201501

BLACK,202

sub52165-58901¥5,900

main52165-58020-C0iANH2#,GGH2#..CBU200804-201110

BLACK,202

sub52165-58901¥5,900

main52165-58020-D0iANH2#,ATH20,GGH2#..VFIRE..CBU201110-201501

BORDEAUX M.M.,3R9

sub52165-58901¥5,900

main52165-58020-D0iANH2#,GGH2#..VFIRE..CBU200804-201110

BORDEAUX M.M.,3R9

sub52165-58901¥5,900

main52165-58020-E0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

BEIGE ME.,4T8

sub52165-58901¥5,900

main52165-58020-E1iANH2#,GGH2#..ALPHD..CBU200804-201110

GOLD PEARL CS.,4U1

sub52165-58901¥5,900

main52165-58020-E1iANH2#,ATH20,GGH2#..ALPHD..CBU201110-201501

GOLD PEARL CS.,4U1

sub52165-58901¥5,900

main52165-58020-J0iANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU200804-201110

DK.BLUE MC.,8S6

sub52165-58901¥5,900

main52165-58020-J1iATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240S,240X,24Z,350G,350S,35Z,HBDG,HBDSR,HBDZR)..CBU201110-201501

DARK BLUE MC.,8P8

sub52165-58901¥5,900

main52165-58020-J2iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

LT.BLUE ME.,8Q6

sub52165-58901¥5,900

main52165-58020-K0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

DK.VIOLET M.M.,9AF

sub52165-58901¥5,900

52166ACOVER, REAR BUMPER, UPR LH

main52166-58020-A0iANH2#,GGH2#..CBU200804-201110

WHITE PEARL CS.,070

sub52166-58901¥5,900

main52166-58020-A0iANH2#,ATH20,GGH2#..CBU201110-201501

WHITE PEARL CS.,070

sub52166-58901¥5,900

main52166-58020-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

SILVER ME.,1E4

sub52166-58901¥5,900

main52166-58020-B0iANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU201110-201501

SILVER ME.,1E4

sub52166-58901¥5,900

main52166-58020-B1iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

SILVER ME.,1F7

sub52166-58901¥5,900

main52166-58020-B1iANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU200804-201110

SILVER ME.,1F7

sub52166-58901¥5,900

main52166-58020-B2iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU200905-201110

GRAY ME.,1G3

sub52166-58901¥5,900

main52166-58020-C0iANH2#,ATH20,GGH2#..CBU201110-201501

BLACK,202

sub52166-58901¥5,900

main52166-58020-C0iANH2#,GGH2#..CBU200804-201110

BLACK,202

sub52166-58901¥5,900

main52166-58020-D0iANH2#,ATH20,GGH2#..VFIRE..CBU201110-201501

BORDEAUX M.M.,3R9

sub52166-58901¥5,900

main52166-58020-D0iANH2#,GGH2#..VFIRE..CBU200804-201110

BORDEAUX M.M.,3R9

sub52166-58901¥5,900

main52166-58020-E0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

BEIGE ME.,4T8

sub52166-58901¥5,900

main52166-58020-E1iANH2#,ATH20,GGH2#..ALPHD..CBU201110-201501

GOLD PEARL CS.,4U1

sub52166-58901¥5,900

main52166-58020-E1iANH2#,GGH2#..ALPHD..CBU200804-201110

GOLD PEARL CS.,4U1

sub52166-58901¥5,900

main52166-58020-J0iANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU200804-201110

DK.BLUE MC.,8S6

sub52166-58901¥5,900

main52166-58020-J1iATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240S,240X,24Z,350G,350S,35Z,HBDG,HBDSR,HBDZR)..CBU201110-201501

DARK BLUE MC.,8P8

sub52166-58901¥5,900

main52166-58020-J2iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

LT.BLUE ME.,8Q6

sub52166-58901¥5,900

main52166-58020-K0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

DK.VIOLET M.M.,9AF

sub52166-58901¥5,900

52579RETAINER, REAR BUMPER SIDE, NO.3

main52579-58020iANH2#,GGH2#..CBU¥240200804-201110

main52579-58020iANH2#,ATH20,GGH2#..CBU¥240201110-201501

8115

8417

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-33020iANH2#,GGH2#..CBU¥590200804-201110

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-58030iANH2#,GGH2#..(240S,350S)..CBU¥620200804-201110

9010906231

main90109-06231¥100

9015950311

main90159-50311¥70

9015950353

main90159-50353¥60

21 parts on this diagram · 3 diagrams in section
