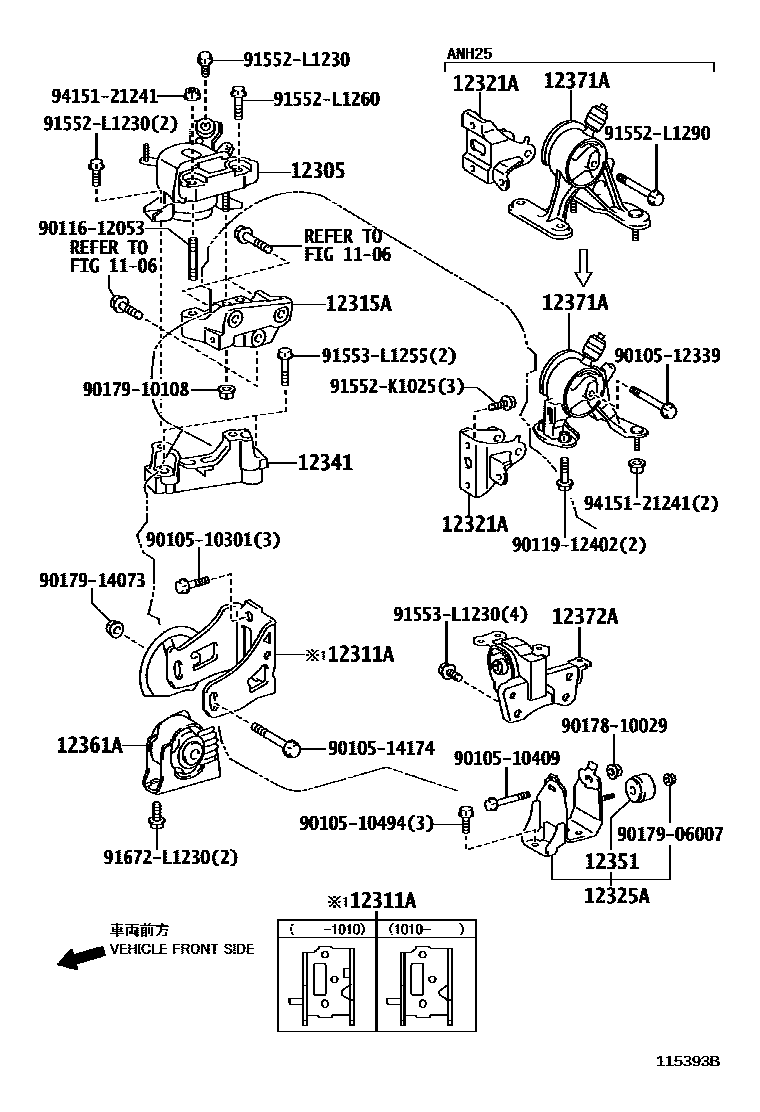

Toyota ALPHARD/VELLFIRE/HV — MOUNTING

0001 1 0002 1 0003 1

1106

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-28230i2AZFE..ANH2#..CBU¥15,200201110-201309

sub12305-28231¥12,600

main12305-28230i2AZFE..ANH2#..CBU¥15,200200804-201110

sub12305-28231¥12,600

main12305-28231i2AZFE..ANH2#..CBU¥12,600201310

main12305-28250i2AZFXE..ATH20¥15,200201112-201309

sub12305-28251¥12,600

main12305-28251i2AZFXE..ATH20¥12,600201310

main12305-31031i2GRFE..GGH2#..CBU¥15,400201110

main12305-31031i2GRFE..GGH2#..CBU¥15,400200804-201110

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28240i2AZFE..ANH2#..CBU¥3,420200804-201002

sub12311-28241¥3,420

main12311-28241i2AZFE..ANH2#..CBU¥3,420201003-201010

main12311-28301i2AZFXE..ATH20¥2,370201112

main12311-28330i2AZFE..ANH2#..CBU¥2,530201010-201110

main12311-28330i2AZFE..ANH2#..CBU¥2,530201110

main12311-31100i2GRFE..GGH2#..CBU¥3,790201110

main12311-31100i2GRFE..GGH2#..CBU¥3,790200804-201110

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31130i2GRFE..GGH2#..CBU¥6,400200804-201110

main12315-31130i2GRFE..GGH2#..CBU¥6,400201110

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-28090i2AZFE..ANH2#..CBU¥4,540200804-201110

���P�X�T

main12315-28090i2AZFE..ANH2#..CBU¥4,540200804-201110

���P�X�S

main12315-28090i2AZ#..ANH2#,ATH20..CBU¥4,540201110

���P�X�T

main12315-28090i2AZ#..ANH2#,ATH20..CBU¥4,540201110

�Q�`�y�|�e�d�@�b�g�h�m�`,���P�X�S

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-28190i2AZFE..ANH20..CBU¥2,530200804-201110

main12321-28190i2AZFE..ANH20..CBU¥2,530201110

main12321-28220i2AZFE..ANH25¥2,530201110

main12321-28220i2AZFE..ANH25¥2,530200804-201110

main12321-28230i2AZFXE..ATH20¥2,840201112

sub12321-36090¥2,370

main12321-31070i2GRFE..GGH20..CBU¥3,480200804-201110

main12321-31070i2GRFE..GGH20..CBU¥3,480201110

main12321-31080i2GRFE..GGH25¥3,810201110

main12321-31080i2GRFE..GGH25..CBU¥3,810200804-201110

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-28130i2AZFE..ANH2#..CBU¥4,570201110

main12304-28130i2AZFE..ANH2#..CBU¥4,570200804-201110

main12304-31020i2GRFE..GGH2#..CBU¥5,900201110

main12304-31020i2GRFE..GGH2#..CBU¥5,900200804-201110

main12325-28320i2AZFXE..ATH20¥3,170201112

12341SPACER, ENGINE MOUNTING

main12341-26011i2GRFE..GGH2#..CBU¥7,700201110

main12341-26011i2AZFE..ANH2#..CBU¥7,700200804-201110

12351DAMPER, ENGINE MOUNTING

main12351-23040i2GRFE..GGH2#..CBU¥1,820200804-201110

main12351-23040i2GRFE..GGH2#..CBU¥1,820201110

main12351-28090i2AZFE..ANH2#..CBU¥1,560200804-201110

main12351-28090i2AZFE..ANH2#..CBU¥1,560201110

main12351-74010i2AZFXE..ATH20¥3,020201112

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28280i2AZFE..ANH2#..CBU¥4,970200804-201110

main12361-28280i2AZFE..ANH2#..CBU¥4,970201110

main12361-28320i2AZFXE..ATH20¥8,400201112

main12361-31210i2GRFE..GGH2#..CBU¥9,700200804-201110

main12361-31210i2GRFE..GGH2#..CBU¥9,700201110-201305

main12361-31450i2GRFE..GGH2#..CBU¥9,700201306

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-28220i2AZFE..ANH25¥8,500201110

main12371-28220i2AZFE..ANH25¥8,500200804-201110

main12371-28240i2AZFE..ANH20..CBU¥7,000201110

main12371-28240i2AZFE..ANH20..CBU¥7,000200804-201110

main12371-28260i2AZFXE..ATH20¥7,600201112

main12371-31150i2GRFE..GGH20..CBU¥8,000200804-201110

main12371-31150i2GRFE..GGH20..CBU¥8,000201110

main12371-31160i2GRFE..GGH25..CBU¥10,200200804-201110

main12371-31160i2GRFE..GGH25¥10,200201110

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28260i2AZFXE..ATH20¥8,500201112

main12372-28390i2AZFE..ANH2#..CBU¥8,900200804-201110

main12372-28390i2AZFE..ANH2#..CBU¥8,900201110

main12372-31030i2GRFE..GGH2#..CBU¥9,000200804-201110

main12372-31030i2GRFE..GGH2#..CBU¥9,000201110

9010510301

main90105-10301¥110

9010510409

main90105-10409¥270

9010510494

main90105-10494¥100

9010512339

main90105-12339¥330

9010514174

main90105-14174¥400

9011612053

main90116-12053¥310

9011912402

main90119-12402¥270

9017810029

main90178-10029¥100

9017906007

main90179-06007¥80

9017910108

main90179-10108¥150

9017914073

main90179-14073¥240

91552K1025

main91552-K1025¥100

91552L1230

main91552-L1230¥160

91552L1260

main91552-L1260¥240

91552L1290

main91552-L1290¥330

91553L1230

main91553-L1230¥210

91553L1255

main91553-L1255¥270

91672L1230

main91672-L1230¥190

9415121241

main94151-21241¥100

31 parts on this diagram · 3 diagrams in section
