Toyota ALPHARD/VELLFIRE/HV — METER

0001 1 0002 1��(����� ������ - ���� �����

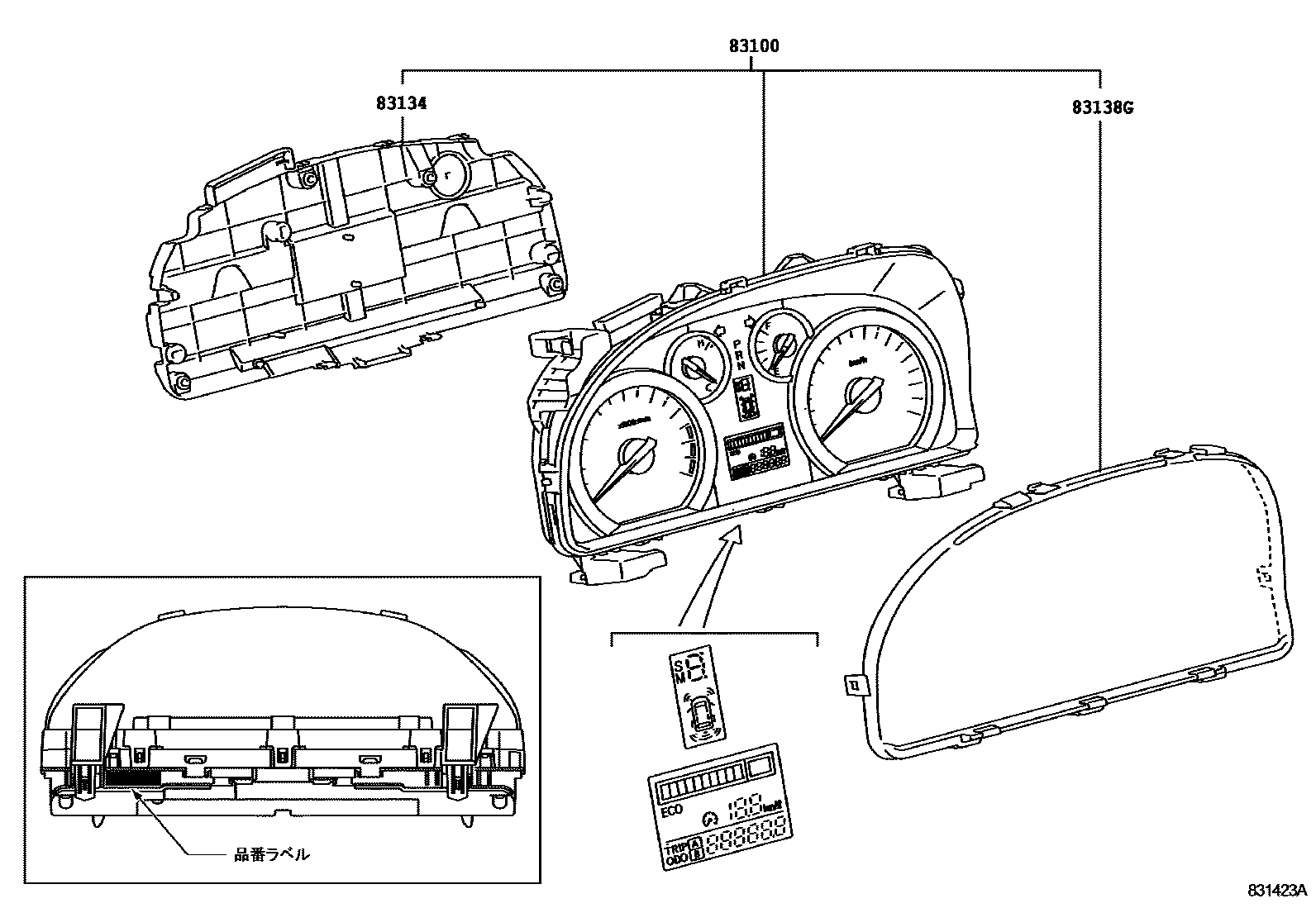

83100METER ASSY, COMBINATION

main83800-58270iANH20..(240X,24X)..CBU¥117,000200804-200905

sub83800-58271¥117,000

main83800-58271iANH20..(240X,24X)..CBU¥117,000200905-201004

main83800-58272iANH20..(240X,24X)..CBU¥117,000201004-201110

main83800-58280iANH25,GGH2#..(240X,24X,350X,35X)..CBU¥117,000200804-200905

sub83800-58281¥117,000

main83800-58281iANH25,GGH2#..(240X,24X,350X,35X)..CBU¥117,000200905-201004

main83800-58282iANH25,GGH2#..(240X,24X,350X,35X)..CBU¥117,000201004-201110

main83800-58290iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU¥117,000200804-200905

sub83800-58291¥117,000

main83800-58291iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU¥117,000200905-201110

main83800-58310iGGH2#..07S..(350S,35Z)..CBU¥117,000200804-200905

sub83800-58311¥117,000

main83800-58310iGGH2#..07S..(350S,35Z)..CBU¥117,000200804-200905

sub83800-58311¥117,000

main83800-58311iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥117,000200905-201004

main83800-58311iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥117,000200905-201004

main83800-58312iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥117,000201004-201110

main83800-58312iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥117,000201004-201110

main83800-58330iANH20..(240X,24X)..CBU¥117,000201110-201209

main83800-58340iANH25..240X,24X¥117,000201110-201209

main83800-58350iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU¥117,000201110-201209

main83800-58370iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU¥117,000201110-201209

main83800-58370iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥117,000201110-201209

main83800-58370iANH2#,GGH2#..(240G,24V,350G,35V)..CBU¥117,000201110-201209

main83800-58400iATH20¥132,000201112-201202

main83800-58401iATH20¥132,000201202-201209

main83800-58430iANH20..(240X,24X)..CBU¥117,000201209

main83800-58440iANH25..240X,24X¥117,000201209

main83800-58450iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU¥117,000201209

main83800-58470iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU¥117,000201209

main83800-58470iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU¥117,000201209

main83800-58470iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU¥117,000201209

main83800-58530iATH20¥132,000201209

83134COVER, COMBINATION METER, NO.1

main83821-58270iANH2#,GGH2#..CBU¥2,550200804-201110

83138GGLASS, COMBINATION METER

main83852-58270iANH2#,GGH2#..CBU¥2,380200804-201110

3 parts on this diagram · 2 diagrams in section
