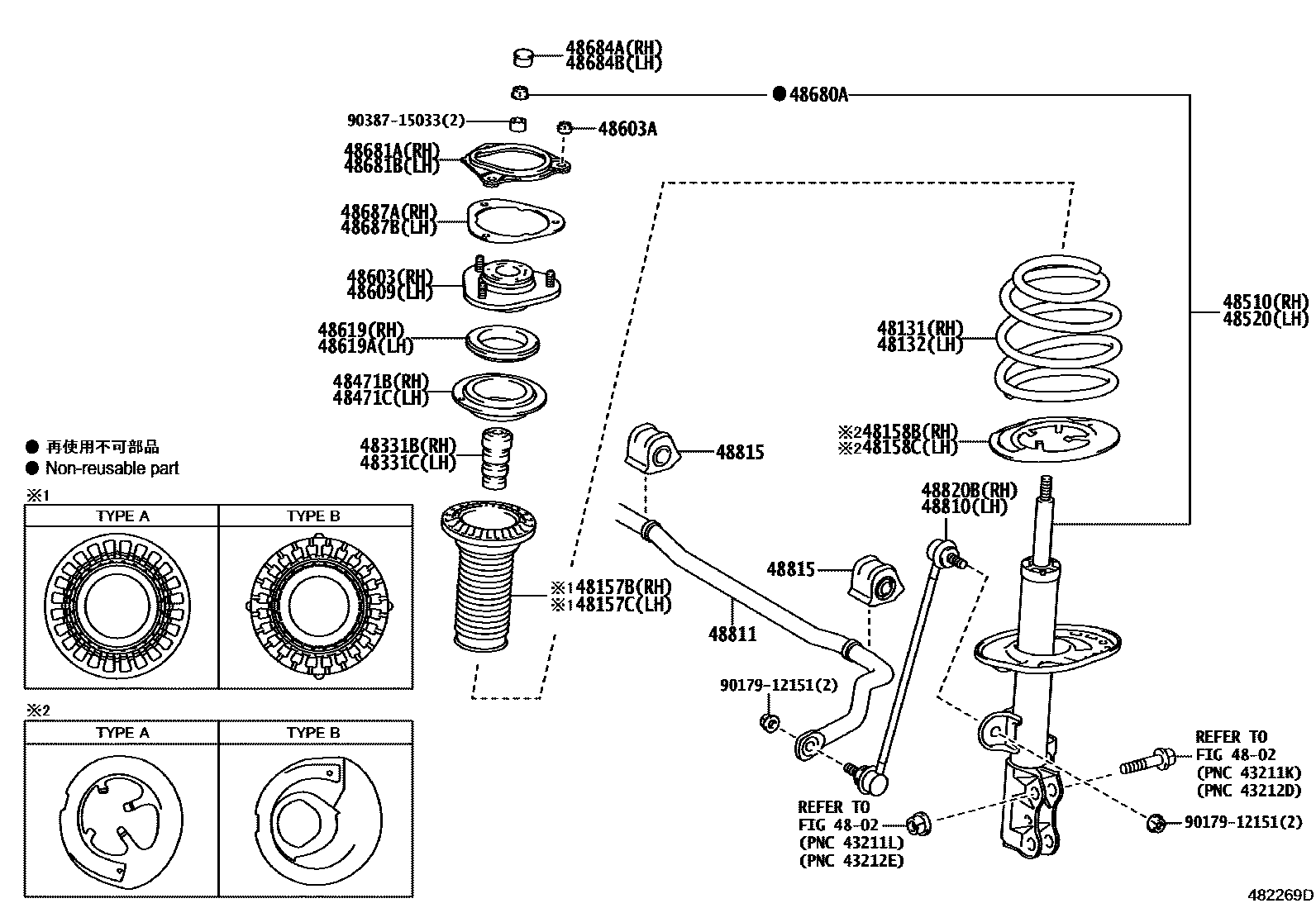

Toyota ALPHARD/VELLFIRE/HV — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-58200iANH20..CBU¥9,400200804-201110

main48131-58210iGGH20..CBU¥10,100200804-201110

main48131-58220iANH25¥9,400200804-201110

main48131-58230iGGH25¥10,400200804-201110

main48131-58250iATH20¥9,800201112

48132SPRING, FRONT COIL, LH

main48131-58200iANH20..CBU¥9,400200804-201110

main48131-58210iGGH20..CBU¥10,100200804-201110

main48131-58220iANH25¥9,400200804-201110

main48131-58230iGGH25..CBU¥10,400200804-201110

main48131-58250iATH20¥9,800201112

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-42020iANH2#,GGH2#..CBU¥1,900200804-201401

main48157-58010iANH2#,ATH20,GGH2#..CBU¥2,300201401-201501

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-42020iANH2#,ATH20,GGH2#..CBU¥1,900200804-201401

main48157-58010iANH2#,ATH20,GGH2#..CBU¥2,300201401-201501

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-21010iANH2#,ATH20,GGH2#..CBU¥1,720201401-201501

main48158-42010iANH2#,ATH20,GGH2#..CBU¥810200804-201401

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-21010iANH2#,ATH20,GGH2#..CBU¥1,720201401-201501

main48158-42010iANH2#,ATH20,GGH2#..CBU¥810200804-201401

48331BBUMPER, FRONT SPRING, RH

main48331-28050iANH2#,GGH2#..CBU¥840200804-201110

48331CBUMPER, FRONT SPRING, LH

main48331-28050iANH2#,GGH2#..CBU¥840200804-201110

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-42010iANH2#,GGH2#..CBU¥950200804-201110

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-42010iANH2#,ATH20,GGH2#..CBU¥950200804-201110

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80416iANH2#..CBU¥25,600200804-201501

main48510-80418iGGH2#..CBU¥25,600200804-201501

main48510-80562iATH20..CBU¥26,800201112-201501

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-59505iANH2#..CBU¥25,600200804-201501

main48520-59525iGGH2#..CBU¥25,600200804-201501

main48520-59675iATH20..CBU¥26,800201112-201501

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-28040iANH2#,GGH2#..CBU¥5,200200804-201110

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10011iANH2#,ATH20,GGH2#..CBU¥90200804-201110

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-28040iANH2#,GGH2#..CBU¥5,200200804-201110

48619BEARING, STRUT MOUNTING, RH

main48619-28010iANH2#,GGH2#..CBU¥920200804-201110

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iANH2#,GGH2#..CBU¥920200804-201110

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005iANH2#,GGH2#..CBU¥120200804-201110

48681AGASKET, FRONT SUSPENSION SUPPORT, RH

main48681-28020iANH2#,GGH2#..CBU¥660200804-201110

48681BGASKET, FRONT SUSPENSION SUPPORT, LH

main48681-28020iANH2#,GGH2#..CBU¥660200804-201110

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iANH2#,GGH2#..CBU¥880200804-201110

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iANH2#,ATH20,GGH2#..CBU¥880200804-201110

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iANH2#,ATH20,GGH2#..CBU¥280200804-201110

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iANH2#,GGH2#..CBU¥280200804-201110

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iANH2#,ATH20,GGH2#..CBU¥4,350200804-201110

48811BAR, STABILIZER, FRONT

main48811-28230iANH20..CBU¥9,800200804-201110

main48811-28240iANH25,GGH2#..CBU¥10,400200804-201110

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28180iANH20..CBU¥1,210200804-201110

main48815-28190iANH20..CBU¥1,210200804-201110

main48815-28200iANH25,ATH20,GGH2#..CBU¥1,010200804-201110

main48815-28210iANH25,GGH2#..CBU¥1,010200804-201110

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iANH2#,GGH2#..CBU¥4,350200804-201110

9017912151

main90179-12151¥100

9038715033

main90387-15033¥200

31 parts on this diagram · 1 diagram in section
