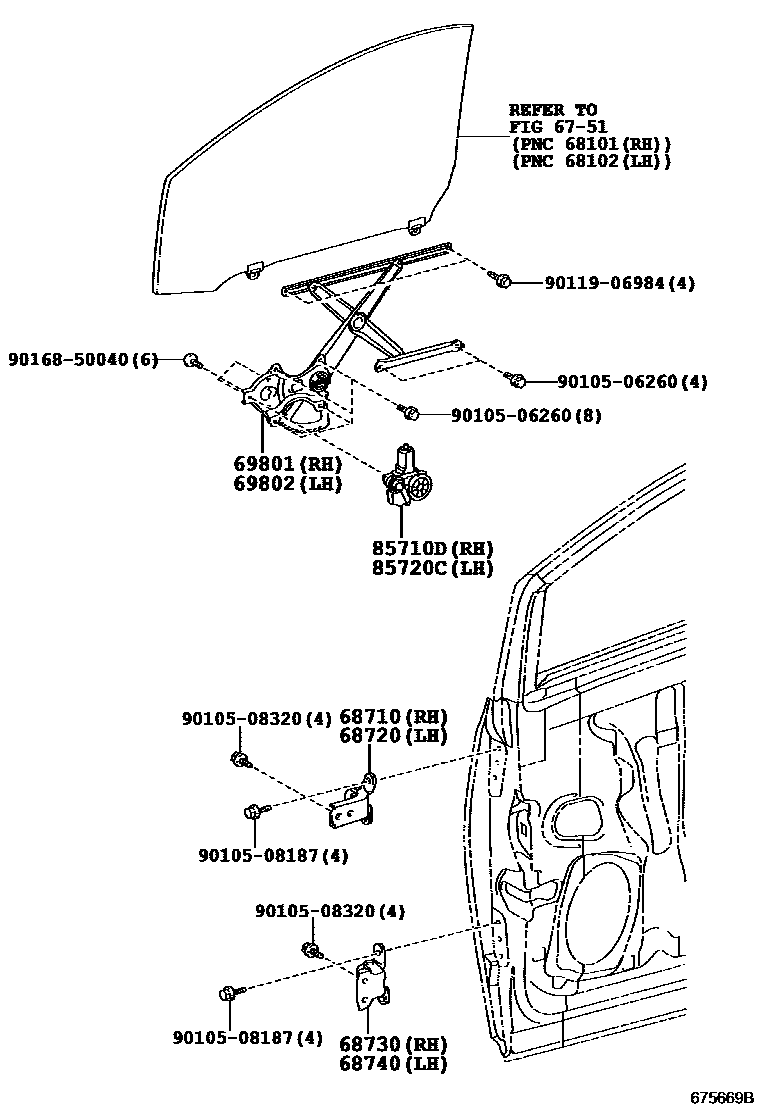

Toyota ALPHARD/VELLFIRE/HV — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iANH2#,ATH20,GGH2#..CBU¥2,050201110-201501

main68710-12151iANH2#,GGH2#..CBU¥2,050200804-201110

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iANH2#,GGH2#..CBU¥2,050200804-201110

main68720-12151iANH2#,ATH20,GGH2#..CBU¥2,050201110-201501

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33021iANH2#,GGH2#..CBU¥2,470200804-201110

main68730-33021iANH2#,ATH20,GGH2#..CBU¥2,470201110-201501

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33021iANH2#,GGH2#..CBU¥2,470200804-201110

main68740-33021iANH2#,ATH20,GGH2#..CBU¥2,470201110-201501

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-58020iANH2#,ATH20,GGH2#..CBU¥6,800201110

main69801-58020iANH2#,GGH2#..CBU¥6,800200804-201110

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-58020iANH2#,GGH2#..CBU¥6,800200804-201110

main69802-58020iANH2#,ATH20,GGH2#..CBU¥6,800201110

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52171iANH2#,ATH20,GGH2#..CBU¥41,000201303

main85710-58040iANH2#,ATH20,GGH2#..CBU¥40,900201110-201302

sub85710-52171¥41,000

main85710-58040iANH2#,GGH2#..CBU¥40,900200804-201110

sub85710-52171¥41,000

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52161iANH2#,ATH20,GGH2#..CBU¥41,000201303

main85720-58040iANH2#,GGH2#..CBU¥25,300200804-201110

sub85720-52161¥41,000

main85720-58040iANH2#,ATH20,GGH2#..CBU¥25,300201110-201302

sub85720-52161¥41,000

9010506260

main90105-06260¥60

9010508187

main90105-08187¥90

9010508320

main90105-08320¥90

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
