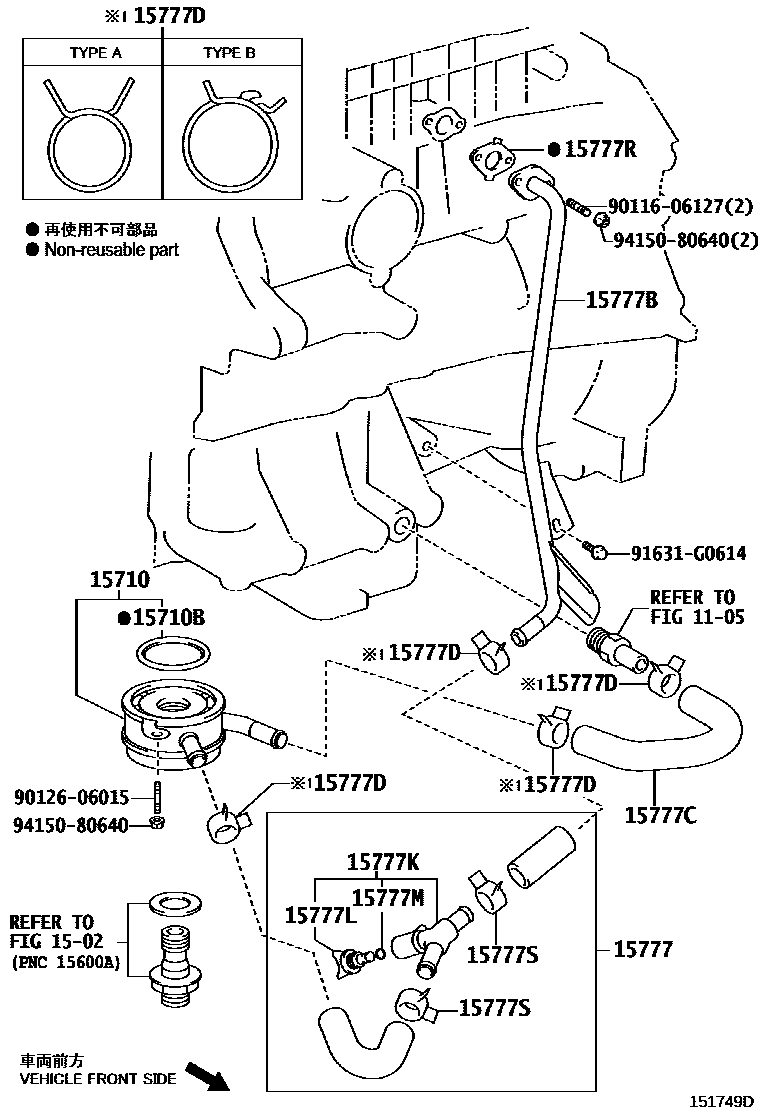

Toyota ALPHARD/VELLFIRE/HV — ENGINE OIL COOLER

0001 1 0002 1 0003 1

1105

1502

15710COOLER ASSY, OIL

main15710-28020i2AZFXE..ATH20¥39,500201112

15710BRING, O(FOR OIL COOLER)

main90301-52006i2AZFXE..ATH20¥0201112

15777HOSE, OIL COOLER

main16267-28020i2AZFXE..ATH20¥1,280201112-201212

sub16267-28080¥720

main16267-28080i2AZFXE..ATH20¥720201212

15777BPIPE, OIL COOLER

main16279-28010i2AZFXE..ATH20¥3,290201112

15777CHOSE, OIL COOLER

main16281-28010i2AZFXE..ATH20¥490201112

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96134-41900i2AZFXE..ATH20¥90201112-201207

main96134-41900i2AZFXE..ATH20¥90201207

�s�x�o�d�@�`�F�C���X�g�Q��

main96136-42201i2AZFXE..ATH20¥180201207

�s�x�o�d�@�a�F�C���X�g�Q��

15777KCOCK ASSY, DRAIN(FOR OIL COOLER HOSE)

main90910-09119i2AZFXE..ATH20201112-201212

15777LPLUG,AIR(FOR OIL COOLER DRAIN COCK)

main23322-54010i2AZFXE..ATH20¥380201112-201212

15777MRING, O(FOR OIL COOLER DRAIN COCK)

main16492-21050i2AZFXE..ATH20¥210201112-201212

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main16258-28040i2AZFXE..ATH20¥310201112

15777SCLAMP OR CLIP, HOSE

main96134-41900i2AZFXE..ATH20¥90201112-201212

9011606127

main90116-06127¥80

9012606015

main90126-06015¥110

91631G0614

main91631-G0614¥60

9415080640

main94150-80640¥220

17 parts on this diagram · 3 diagrams in section
