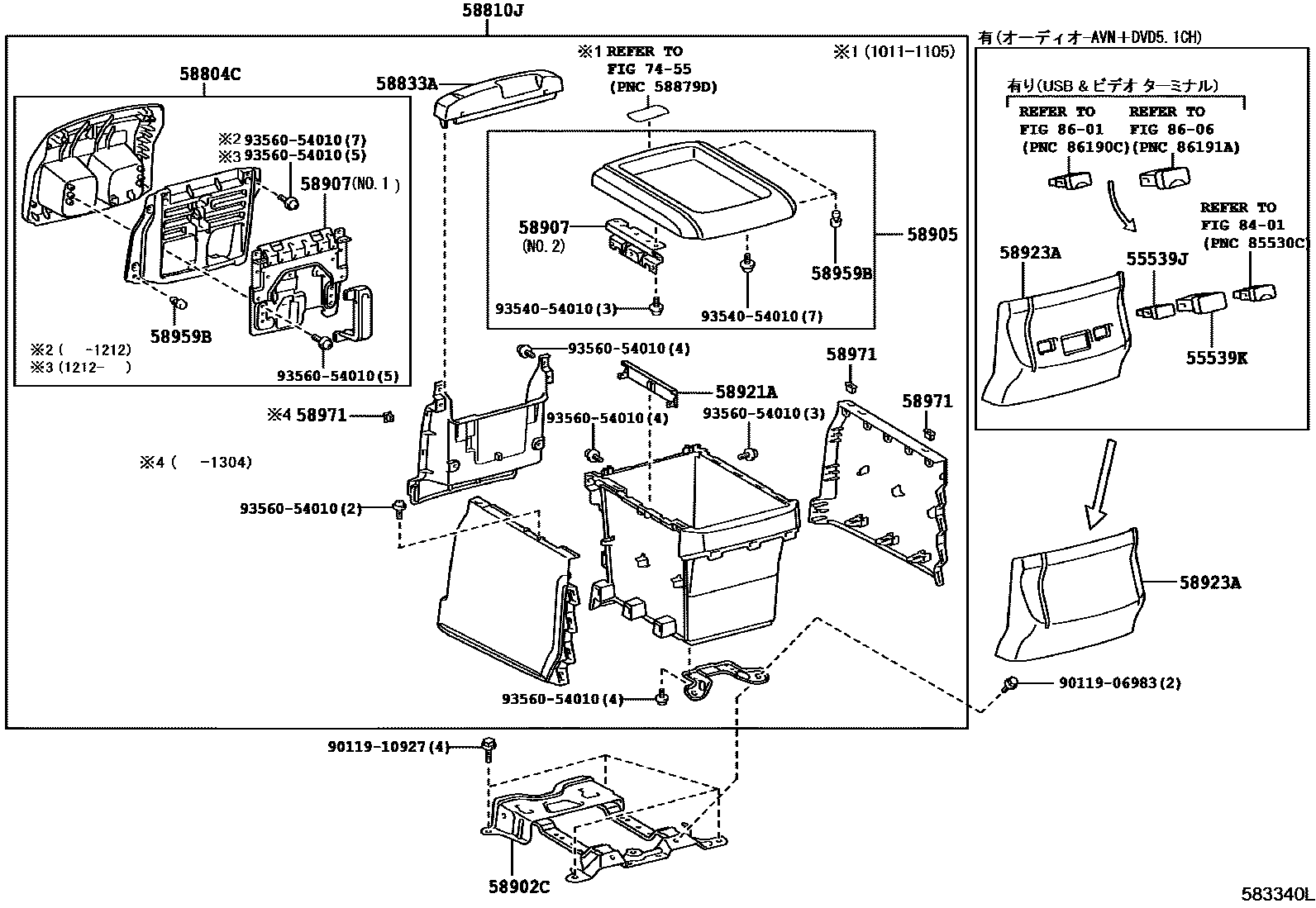

Toyota ALPHARD/VELLFIRE/HV — CONSOLE BOX & BRACKET

0001 1������ 0002 1������� 0003 1��(���������) 0004 1��(���������)

55539JCOVER, SPARE SWITCH HOLE

main55539-58060-C0iATH20..(HBDSR,HBDZR)..CBU201112-201209

BLACK,TRIM0#

main55539-58060-C0iATH20..(HBDSR,HBDZR)..CBU201112-201209

BLACK,TRIM1#

main55539-58070-C0iATH20..(HBDG,HBDV,HBDX)..CBU201209-201501

BLACK,TRIM0#

main55539-58070-C0iATH20..(HBDG,HBDV,HBDX)..CBU201209-201501

BLACK,TRIM1#

55539KCOVER, SPARE SWITCH HOLE

58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT

main58804-58120-A0iANH2#..(240X,24X)..CBU201110-201501

SHELL,TRIM0#

main58804-58120-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201110

SHELL,TRIM0#

main58804-58120-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201110-201501

DK.GRAY,TRIM1#

main58804-58120-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

DK.GRAY,TRIM1#

58810JBOX ASSY, CONSOLE

main58810-58090-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU200804-201110

SHELL,TRIM0#

main58810-58090-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU200804-201110

�f�G�f�B�V�����@�����@�b�p�b�P�[�W���V�[�g�\���|�W���J�[�h�@���P�b�g,SHELL,TRIM0#

main58810-58140-A0iANH2#..(240X,24X)..CBU201110-201501

SHELL,TRIM0#

main58810-58140-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201110

SHELL,TRIM0#

main58810-58140-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

DK.GRAY,TRIM1#

main58810-58140-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201110-201501

DK.GRAY,TRIM1#

main58810-58200-A0iATH20..(HBDG,HBDV,HBDX)..CBU201112-201209

SHELL,TRIM0#

main58810-58200-B0iATH20..(HBDSR,HBDZR)..CBU201112-201209

DK.GRAY,TRIM1#

main58810-58220-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU201110-201501

SHELL,TRIM0#

main58810-58240-A0iATH20..(HBDG,HBDV,HBDX)..CBU201209-201501

SHELL,TRIM0#

main58810-58240-B0iATH20..(HBDSR,HBDZR)..CBU201209-201501

DK.GRAY,TRIM1#

58833ACOVER, CONSOLE, UPPER

main58833-58060-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201110

SHELL,TRIM0#

main58833-58060-A0iANH2#..(240X,24X)..CBU201110-201501

SHELL,TRIM0#

main58833-58060-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

DK.GRAY,TRIM1#

main58833-58060-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201110-201501

DK.GRAY,TRIM1#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-58030iANH2#,GGH2#..CBU¥7,600200804-201110

main58902-58030iANH2#,GGH2#..CBU¥7,600201110

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-58100-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201110

SHELL,TRIM0#

main58905-58100-A0iANH2#..(240X,24X)..CBU201110-201501

SHELL,TRIM0#

main58905-58100-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

DK.GRAY,TRIM1#

main58905-58100-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201110-201501

DK.GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-58050iANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU¥6,800200804-201110

�m�n�D�P

sub58907-58051¥6,800

main58907-58050iANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU¥6,800201110-201212

�m�n�D�P

sub58907-58051¥6,800

main58907-58051iANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU¥6,800201212-201501

�m�n�D�P

main58907-58060iANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU¥2,840200804-201110

�m�n�D�Q

main58907-58060iANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU¥2,840201110-201501

�m�n�D�Q

58921APANEL, REAR CONSOLE, UPPER

main58921-58030-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201110

SHELL,TRIM0#

main58921-58030-A0iANH2#..(240X,24X)..CBU201110-201501

SHELL,TRIM0#

main58921-58030-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

DK.GRAY,TRIM1#

main58921-58030-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201110-201501

DK.GRAY,TRIM1#

58923APANEL, CONSOLE REAR END

main58923-58060-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201110

SHELL,TRIM0#

main58923-58060-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

DK.GRAY,TRIM1#

main58923-58090-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU200804-201110

SHELL,TRIM0#

main58923-58090-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU200804-201110

�f�G�f�B�V�����@�����@�b�p�b�P�[�W,SHELL,TRIM0#

main58923-58140-A0iANH2#..(240X,24X)..CBU201110-201501

SHELL,TRIM0#

main58923-58140-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201110-201501

DK.GRAY,TRIM1#

main58923-58150-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU201110-201501

SHELL,TRIM0#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU¥100200804-201110

main58959-60060iANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU¥100201110

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-26010iANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU¥550200804-201010

main58971-58060iANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU¥550201011-201110

main58971-58060iANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU¥550201110-201304

main58971-58060iANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU¥550201304-201501

7455

8401

8601

8606

9011906983

main90119-06983¥60

9011910927

main90119-10927¥110

9354054010

main93540-54010¥120

9356054010

main93560-54010¥70

20 parts on this diagram · 4 diagrams in section
