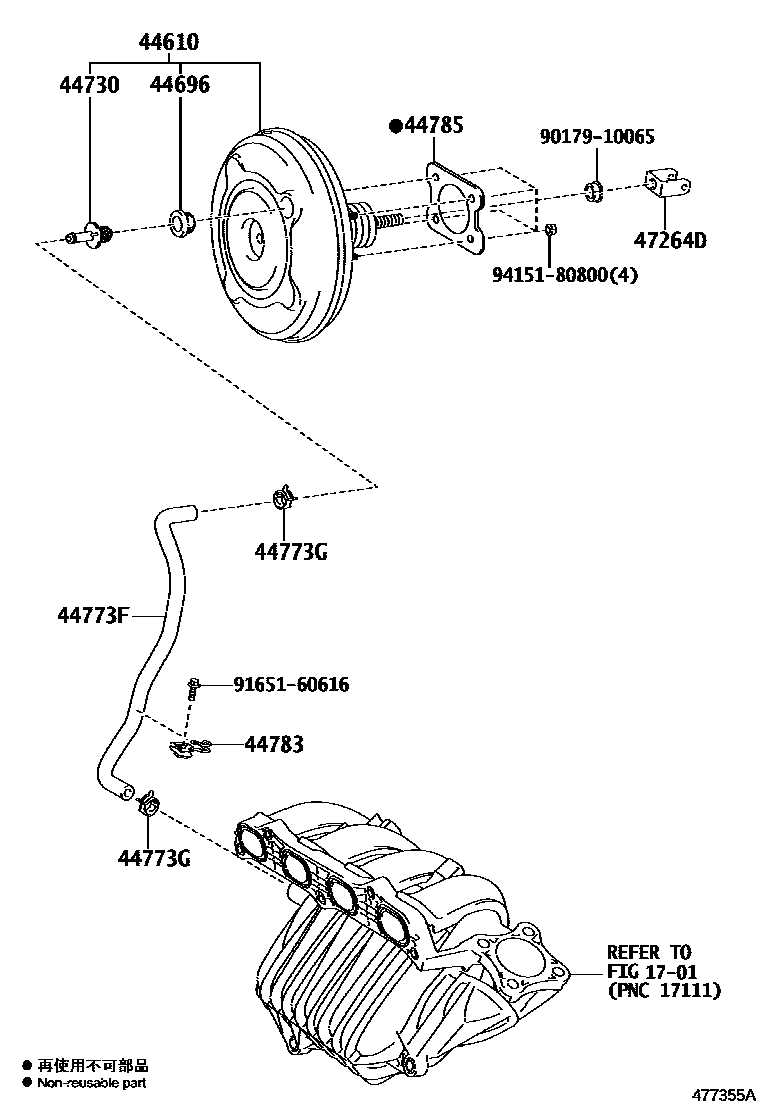

Toyota ALPHARD/VELLFIRE/HV — BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-58030iANH2#,GGH2#..CBU¥52,100200804-201110

main44610-58050iANH2#,GGH2#..CBU¥52,100201110-201501

44696GROMMET, CHECK VALVE

main90480-24015iANH2#,GGH2#..CBU¥130201110

main90480-24015iANH2#,GGH2#..CBU¥130200804-201110

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iANH2#,GGH2#..CBU¥1,360200804-201110

main44730-28030iANH2#,GGH2#..CBU¥1,360201110

44773FHOSE, UNION TO CHECK VALVE

main44773-58040iANH2#..CBU¥2,980200804-201110

main44773-58040iANH2#..CBU¥2,980201110

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iANH2#..CBU¥230201212

main96133-41500iANH2#..CBU¥140200804-201110

main96133-41500iANH2#..CBU¥140201110-201211

44783CLAMP, VACUUM HOSE

main44783-44010iANH2#..CBU¥260201110

main44783-44010iANH2#..CBU¥260200804-201110

44785GASKET, BRAKE BOOSTER

main44785-12040iANH2#,GGH2#..CBU¥200201008-201110

main44785-12040iANH2#,GGH2#..CBU¥200201110-201501

main44785-28010iANH2#,GGH2#..CBU¥320200804-201007

sub44785-12040¥200

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iANH2#,GGH2#..CBU¥320200804-201110

main47264-30060iANH2#,GGH2#..CBU¥320201110-201501

9017910065

main90179-10065¥90

9165160616

main91651-60616¥100

9415180800

main94151-80800¥80

12 parts on this diagram · 2 diagrams in section
