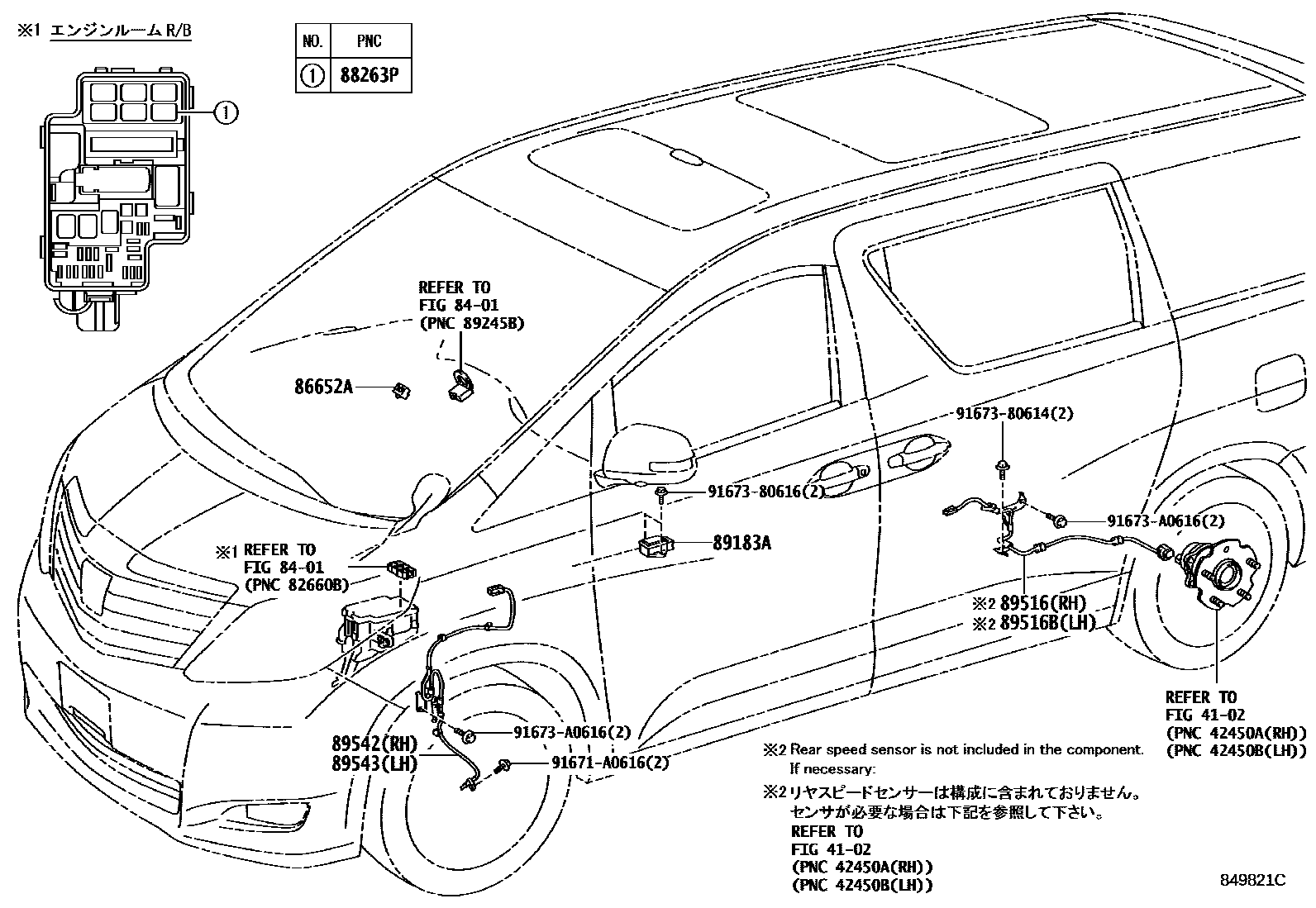

Toyota ALPHARD/VELLFIRE/HV — ABS & VSC

0001 1 0002 1 0003 1

4102

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iANH2#,GGH2#..CBU¥2,400200804-201110

88263PRELAY, STOP LAMP CONTROL

main90987-04004iANH25,GGH25..CBU¥2,810200804-201501

89183ASENSOR, YAWRATE

main89180-58020iATH20¥99,500201112

main89183-28010iANH2#,GGH2#..CBU¥120,000200804-201110

89516WIRE, SKID CONTROL SENSOR

main89516-58040iANH20,GGH20..CBU¥2,290200804-201501

89516BWIRE, SKID CONTROL SENSOR

main89516-58050iANH20,GGH20..CBU¥2,290200804-201110

89542SENSOR, SPEED, FRONT RH

main89542-28100iANH2#,GGH2#..CBU¥18,100200804-201110

89543SENSOR, SPEED, FRONT LH

main89543-28100iANH2#,GGH2#..CBU¥18,100200804-201110

91671A0616

main91671-A0616¥60

9167380614

main91673-80614¥60

9167380616

main91673-80616¥60

91673A0616

main91673-A0616¥60

13 parts on this diagram · 3 diagrams in section
