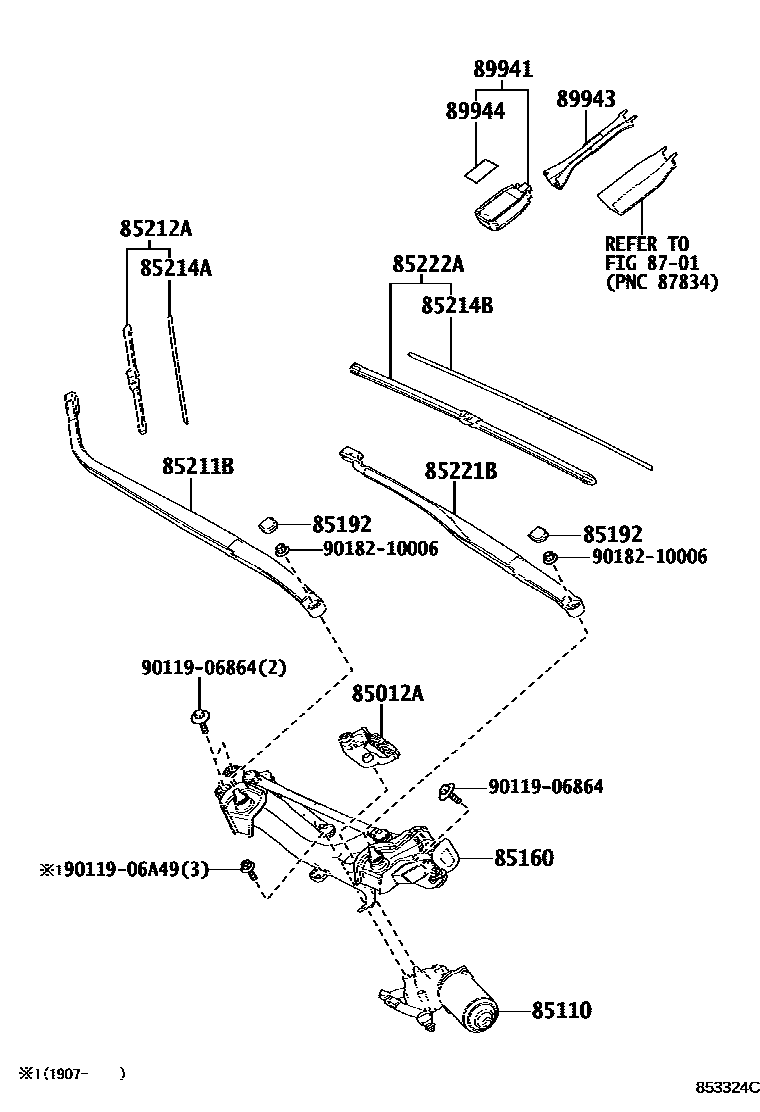

Toyota ALPHARD/VELLFIRE/HV — WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58050iGGH30..RHD;AGH30,AYH30..RHD..(G,L,Q,R,S)¥1,420201501-202001

main85012-58070iAYH30,GGH30..LHD201501-202001

main85012-58090iAYH30..RHD..V¥1,420201907-202001

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-58030iGGH30..RHD;AGH30,AYH30..RHD..(G,L,Q,R,S)¥21,400201501-202001

main85110-58050iAYH30,GGH30..LHD201501-202001

main85110-58060iAYH30..RHD..V201907-202001

85160LINK ASSY, WINDSHIELD WIPER

main85150-58030iAGH30,AYH30,GGH30..RHD¥7,700201501-201801

main85150-58040iGGH30..LHD201501-202001

main85150-58090iGGH30..RHD;AGH30,AYH30..RHD..(G,L,Q,R,S)¥6,400201801-202001

main85150-58110iAYH30..RHD..V201907-202001

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iAGH30,AYH30,GGH30¥250201501-202001

85211BARM, FRONT WIPER, RH

main85211-58020iAGH30,AYH30,GGH30..RHD¥5,400201501-201708

TYPE A

sub85211-58021¥5,400

main85211-58021iAGH30,AYH30,GGH30..RHD¥5,400201709-201801

TYPE A

main85211-58050iAYH30,GGH30..LHD201501-202001

main85211-58070iAGH30,AYH30,GGH30..RHD¥4,580201801-202001

TYPE B

85212ABLADE, FR WIPER, RH

main85212-58035iAGH30,AYH30,GGH30..RHD¥5,400201501-201801

PNC 85211B=TYPE A

main85212-58040iAGH30,AYH30,GGH30..RHD¥4,600202304

PNC 85211B=TYPE B

main85212-58050iGGH30..LHD201501-201505

sub85212-58051¥1,480

main85212-58051iGGH30..LHD¥1,480201506-201610

sub85212-58052

main85212-58052iAYH30,GGH30..LHD201611-202001

main85212-58060iAGH30,AYH30,GGH30..RHD¥5,400201801-202303

PNC 85211B=TYPE B

sub85212-58040¥4,600

85214ARUBBER, WIPER, RH

main85214-58010iGGH30..LHD¥830201501-201502

sub85214-62020¥750

main85214-58030iAGH30,AYH30,GGH30..RHD¥950202304

TYPE B

main85214-58060iAGH30,AYH30,GGH30..RHD¥950201501-201801

TYPE A

main85214-58070iAYH30,GGH30..LHD¥750201611-202001

main85214-58080iAGH30,AYH30,GGH30..RHD¥950201801-202303

TYPE B

sub85214-58030¥950

main85214-62020iGGH30..LHD¥750201502-201610

85214BRUBBER, WIPER, LH

main85214-28110iAGH30,AYH30,GGH30..RHD¥750202001-202303

TYPE B

sub85214-68030¥750

main85214-58020iGGH30..LHD¥950201501-201610

sub85214-58060¥950

main85214-58060iAYH30,GGH30..LHD¥950201611-202001

main85214-58070iAGH30,AYH30,GGH30..RHD¥750201501-201801

TYPE A

main85214-68030iAGH30,AYH30,GGH30..RHD¥750201801-201912

TYPE B

85221BARM, FRONT WIPER, LH

main85221-58060iAGH30,AYH30,GGH30..RHD¥6,300201501-201801

TYPE A

main85221-58070iGGH30..LHD201501-201709

sub85221-58071

main85221-58071iAYH30,GGH30..LHD201710-202001

main85221-58090iAGH30,AYH30,GGH30..RHD¥5,300201801-202001

TYPE B

85222ABLADE, FR WIPER, LH

main85222-28190iAGH30,AYH30,GGH30..RHD¥1,480202304

TYPE B

main85222-58033iAGH30,AYH30,GGH30..RHD¥1,480201501-201801

TYPE A

main85222-58050iGGH30..LHD201501-201504

sub85222-58051

main85222-58051iGGH30..LHD201505-201610

sub85222-58054

main85222-58052iGGH30..LHD201611-201612

sub85222-58053

main85222-58053iGGH30..LHD201612-201701

sub85222-58054

main85222-58054iGGH30..LHD201701-202001

main85222-58060iAGH30,AYH30,GGH30..RHD¥1,480201801-202303

TYPE B

sub85222-28190¥1,480

8701

89941SENSOR, RAIN

main89941-48080iAGH30,AYH30,GGH30..L,Q,R,S,V,Z¥12,500202001

main89941-52010iAGH30,AYH30,GGH30..L,Q,V¥12,500201501-202001

89943COVER, RAIN SENSOR

main89943-47010iAGH30,AYH30,GGH30..L,Q,V¥1,550201501-201801

main89943-47030iAGH30,AYH30,GGH30..L,Q,R,S,V¥460201801-202001

main89943-58010iAGH30,AYH30,GGH30..L,Q,R,S,V,Z¥480202001

89944TAPE, RAIN SENSOR

main89944-42010iAGH30,AYH30,GGH30..L,Q,V¥1,490201501-202001

main89944-42020iAGH30,AYH30,GGH30..L,Q,R,S,V,Z¥170202001

9011906864

main90119-06864¥80

9011906A49

main90119-06A49

9018210006

main90182-10006¥80

17 parts on this diagram · 6 diagrams in section
