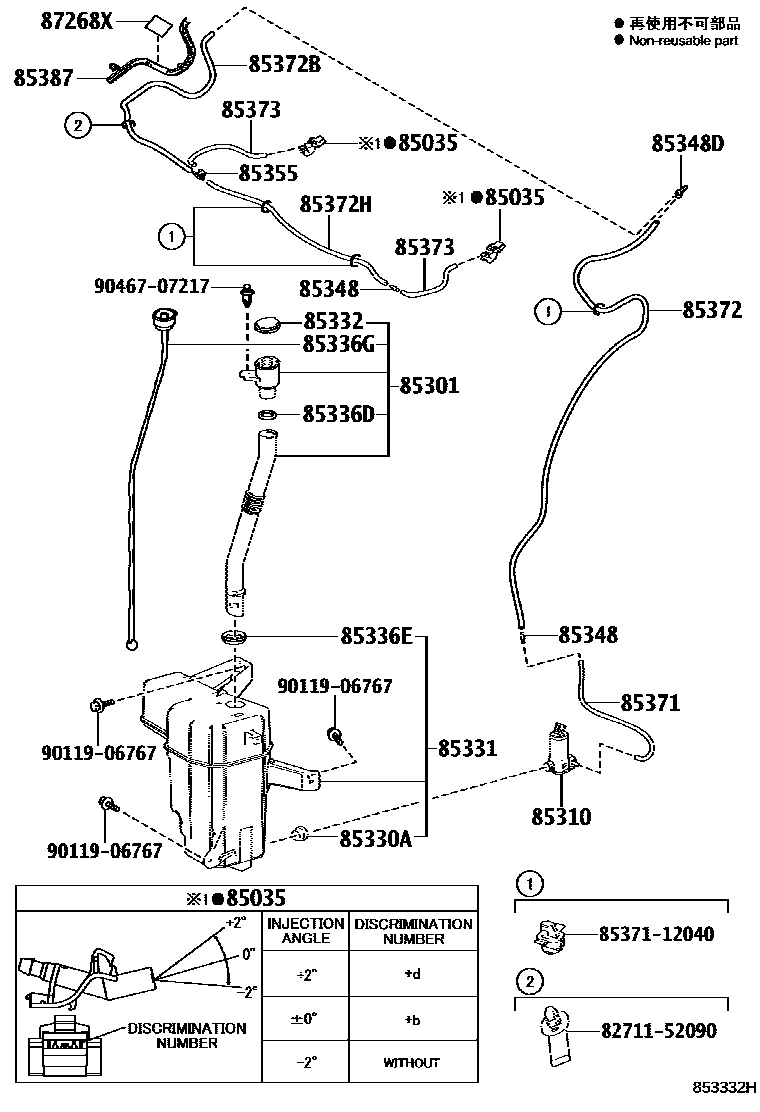

Toyota ALPHARD/VELLFIRE/HV — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85331JAR SUB-ASSY, WINDSHIELD WASHER
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85336GGAGE, WATER LEVEL
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=300)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1000)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=730)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=590)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=180)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
87268XPROTECTOR
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
9011906767
9046707217
23 parts on this diagram · 2 diagrams in section
