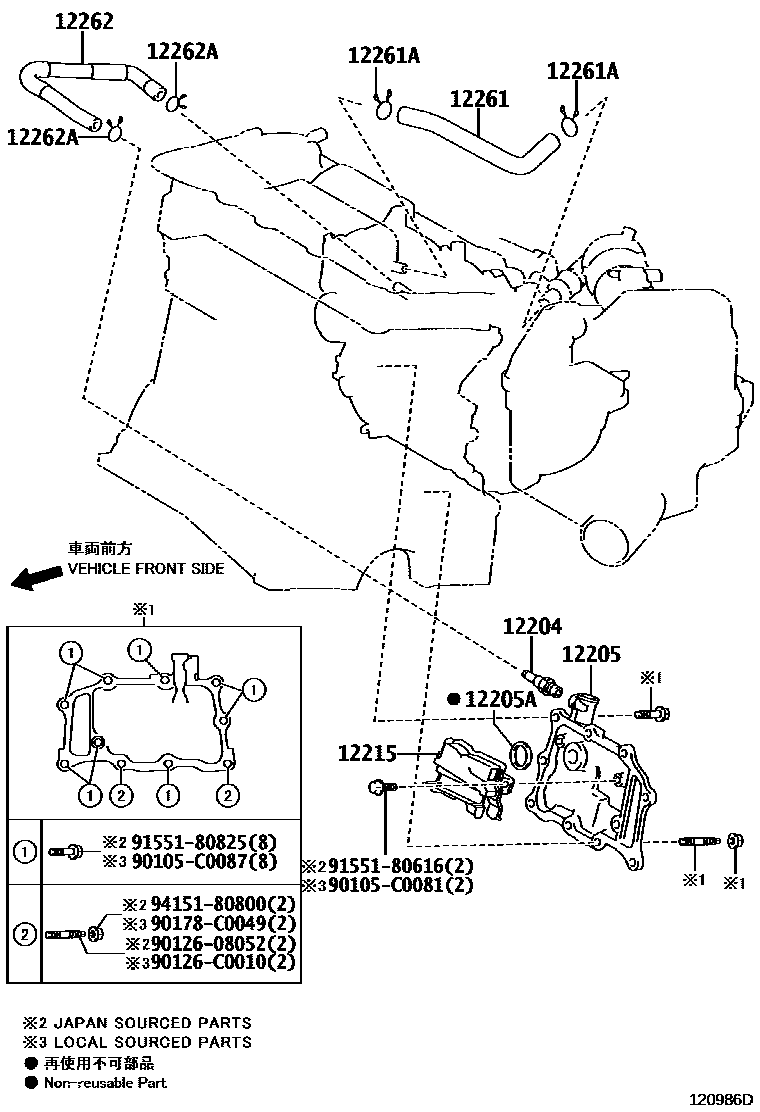

Toyota ALPHARD/VELLFIRE/HV — VENTILATION HOSE

0001 1 0002 1 0003 1 0005 1THAILAND SPEC 0006 1 0007 1

12204VALVE SUB-ASSY, VENTILATION

main12204-31120i2GRFE..GGH30¥890201501-202001

main12204-31150i2GRFKS..GGH30¥1,000201801-202001

main12204-36020i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)¥1,200201812-202001

*524

main12204-36020i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)¥1,200201501-202001

*347

main12204-36020i2AR#..AGH30,AYH30..RHD..(G,L,Q,R,S)¥1,200202001

main12204-36030i2ARFXE..AYH30..L,V201905-202001

12205CASE SUB-ASSY, VENTILATION

main12205-0V020i2AR#..AGH30,AYH30201501-202001

(L),*347

main12205-36010i2AR#..AGH30,AYH30¥6,700201905-202001

main12205-36010i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)¥6,700201501-202001

(J),*347

main12205-36010i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)¥6,700201812-202001

*524

12205ARING, O(FOR VENTILATION CASE)

main12273-0V010i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)201501-202001

*347

main12273-36010i2ARFXE..AYH30..L,V¥340201905-202001

main12273-36010i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)¥340201812-202001

*524

12215SEPARATOR, CASE

main12215-36010i2ARFXE..AYH30..L,V¥1,890201905-202001

main12215-36010i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)¥1,890201812-202001

*524

main12215-36010i2AR#..AGH30,AYH30¥1,890201501-202001

*347

12261HOSE, VENTILATION

main12261-31070i2GRFE..GGH30¥1,430201501-202001

main12261-31200i2GRFKS..GGH30¥1,300201801-202001

main12261-36100i2ARFE..AGH30¥930201501-202001

main12261-36110i2ARFXE..AYH30..Q¥1,430201501-202205

main12261-36160i2ARFXE..AYH30..L,V,Z¥2,130201905-202001

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i2GRFE..GGH30¥110201501-202001

main90467-15120i2GRFKS..GGH30¥100201801-202001

NO.1

main90467-19003i2GRFKS..GGH30¥110201801-202001

NO.2

main90467-19003i2AR#..AGH30,AYH30¥110201501-201801

12262HOSE, VENTILATION, NO.2

main12262-0V010i2ARFE..AGH30201501-202001

*347

main12262-0V040i2ARFXE..AYH30201501-202001

*347

main12262-31100i2GRFE..GGH30¥2,000201501-202001

main12262-31190i2GRFKS..GGH30¥1,940201801-202001

main12262-36040i2ARFE..AGH30¥750202001

main12262-36040i2ARFE..AGH30¥750201812-202001

*524

main12262-36080i2ARFXE..AYH30..Q¥650201812-202001

*524

main12262-36080i2ARFXE..AYH30..L,V¥650201905-202001

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16035i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)¥160201501-202001

*347

main90467-16035i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)¥160201812-202001

*524

main90467-16035i2ARFXE..AYH30..L,V¥160201905-202001

main90467-21004i2GR#..GGH30¥130201501-202001

90105C0081

main90105-C0081

90105C0087

main90105-C0087

9012608052

main90126-08052¥80

90126C0010

main90126-C0010

90178C0049

main90178-C0049

9155180616

main91551-80616¥60

9155180825

main91551-80825¥80

9415180800

main94151-80800¥80

16 parts on this diagram · 6 diagrams in section
