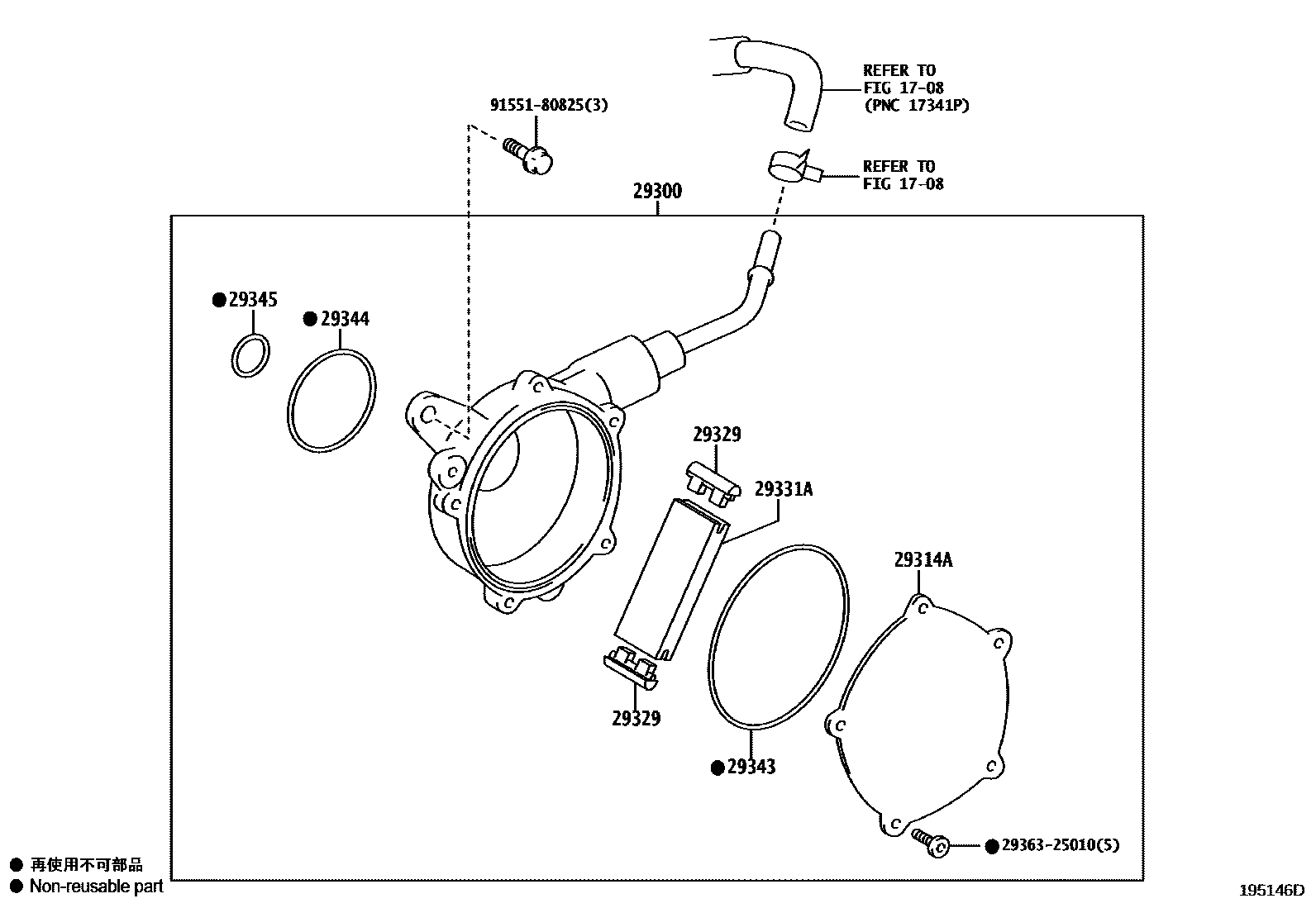

Toyota ALPHARD/VELLFIRE/HV — VACUUM PUMP

1708

29300PUMP ASSY, VACUUM

main29300-31011i2GRFKS..GGH30..Q¥15,100201801-201907

main29300-31011i2GRFKS..GGH30..ALPHD¥15,100201801-202001

main29300-31011i2GRFKS..GGH30¥15,100202001

29314ACOVER, END

main29314-31010i2GRFKS..GGH30..Q¥1,690201801-201907

main29314-31010i2GRFKS..GGH30..ALPHD¥1,690201801-202001

main29314-31010i2GRFKS..GGH30¥1,690202001

29329CAP, VACUUM PUMP VANE

main29329-37010i2GRFKS..GGH30..Q¥200201801-201907

main29329-37010i2GRFKS..GGH30..ALPHD¥200201801-202001

main29329-37010i2GRFKS..GGH30¥200202001

29331AVANE, VACUUM PUMP

main29331-36010i2GRFKS..GGH30..Q¥980201801-201907

main29331-36010i2GRFKS..GGH30..ALPHD¥980201801-202001

main29331-36011i2GRFKS..GGH30¥890202001-202304

29343RING, O VACUUM PUMP, NO.1

main29343-36010i2GRFKS..GGH30..Q¥160201801-201907

main29343-36010i2GRFKS..GGH30..ALPHD¥160201801-202001

main29343-36010i2GRFKS..GGH30¥160202001

29344RING, O VACUUM PUMP, NO.2

main29344-22011i2GRFKS..GGH30..Q¥130201801-201907

main29344-22011i2GRFKS..GGH30..ALPHD¥130201801-202001

main29344-22011i2GRFKS..GGH30¥130202001

29345RING, O VACUUM PUMP, NO.3

main29345-22011i2GRFKS..GGH30..Q¥130201801-201907

main29345-22011i2GRFKS..GGH30..ALPHD¥130201801-202001

main29345-22011i2GRFKS..GGH30¥130202001

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

9155180825

main91551-80825¥80

10 parts on this diagram · 1 diagram in section
