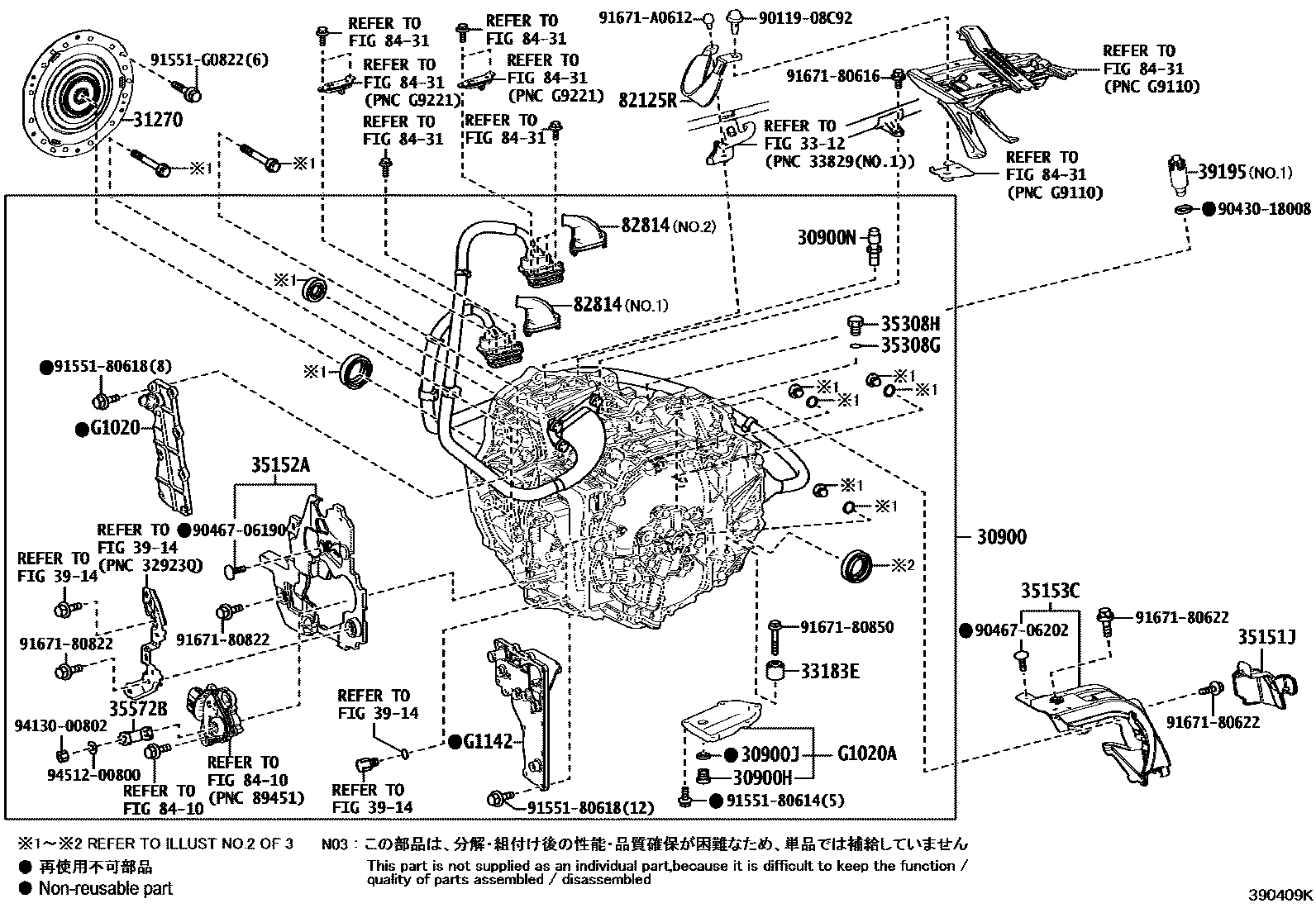

Toyota ALPHARD/VELLFIRE/HV — TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900JGASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
31270DAMPER ASSY, TRANSMISSION INPUT
3312
33183EDAMPER, DYNAMIC
35151JCOVER, AUTOMATIC TRANSMISSION CASE
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35572BLEVER, TRANSMISSION, OUTER
3914
39195DAMPER, HV TRANSAXLE MASS
NO.2
NO.1
NO.1
NO.1
NO.1
82125RWIRE, TRANSMISSION
82814BOOT, WIRE HARNESS
NO.2
NO.2
NO.1
8410
8431
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G1142COVER, MOTOR WATERJACET
9011908C92
9043018008
9046706190
9046706202
9155180614
9155180618
91551G0822
9167180616
9167180622
9167180822
9167180850
91671A0612
9413000802
9451200800
36 parts on this diagram · 3 diagrams in section
