83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAGH30,AYH30,GGH30¥1,970201501-202001

DENSO,*369

main83530-60020iAGH30,AYH30,GGH30¥1,970201501-202001

YAZAKI,*369

84540SWITCH ASSY, NEUTRAL START

main84540-28030iAGH30¥7,600201501-202001

main84540-33010iGGH30..6FC¥7,600201501-202001

main84540-33020iGGH30..ALPHD..8FC¥8,400201801-202202

sub84540-33021¥7,600

sub35572-48051¥740

main84540-33021iGGH30..8FC¥7,600202202

89465SENSOR, OXYGEN

main89465-58150iGGH30¥7,800201501-202001

main89465-58160iAGH30¥7,100201501-202001

main89465-58170iAYH30¥7,100201501-202001

main89465-58180iGGH30..Q¥7,100201801-202001

89467BSENSOR, AIR FUEL RATIO

main89467-06200iAGH30,AYH30..RHD..(G,L,Q,S)¥10,900201801-202001

MARK=89467-06200

main89467-45030iGGH30..6FC¥10,900201501-202001

main89467-48270iAGH30,AYH30¥9,900201801-202001

MARK=89467-48270

main89467-48270iAGH30,AYH30¥9,900201501-201801

main89467-58070iGGH30..ALPHD..8FC¥10,900201801-202001

89615SENSOR, KNOCK CONTROL

main89615-06010iGGH30..L,R,V201801-202001

(L)

main89615-20090iGGH30¥2,370201801-202001

(J)

main89615-20090iAGH30,AYH30¥2,370201501-201801

8271548E60BRACKET,WIRING HARNESS CLAMP

main82715-48E60¥280

8761642020CLAMP, COOLING UNIT CASE

main87616-42020¥210

8946A58010BRACKET, EXHAUST SENSOR CLAMP

main8946A-58010

9155180835

main91551-80835¥80

9165140625

main91651-40625¥70

9167180612

main91671-80612¥60

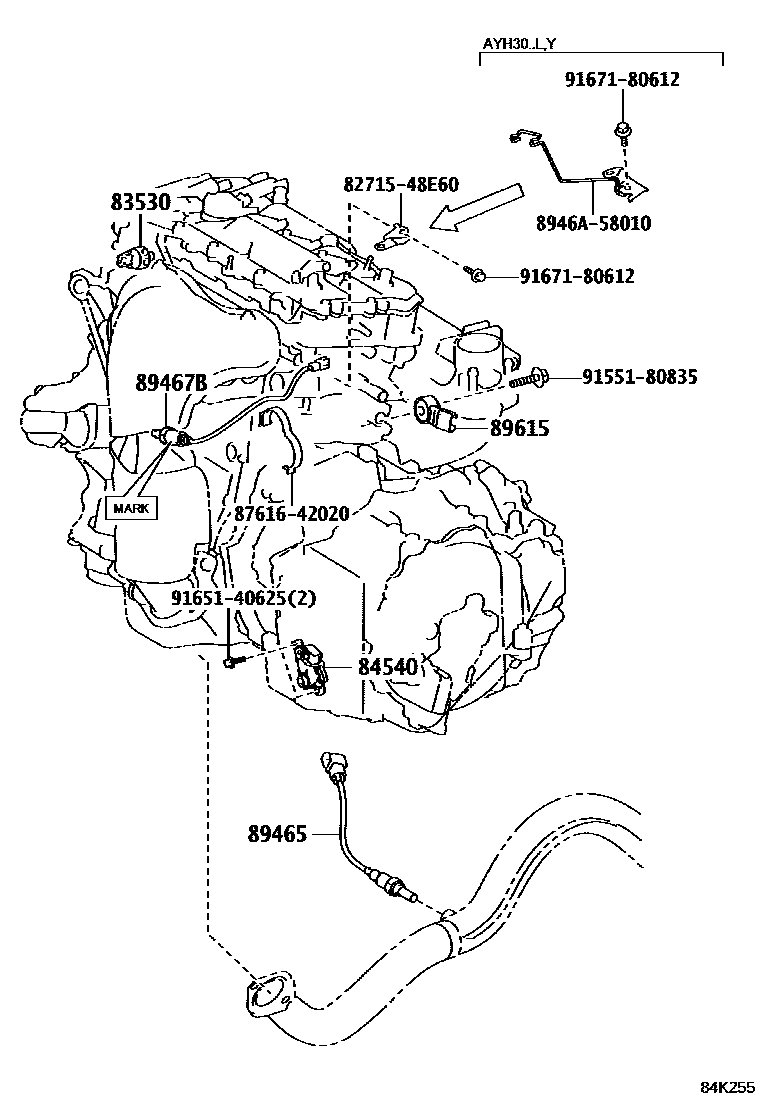

11 parts on this diagram · 30 diagrams in section
