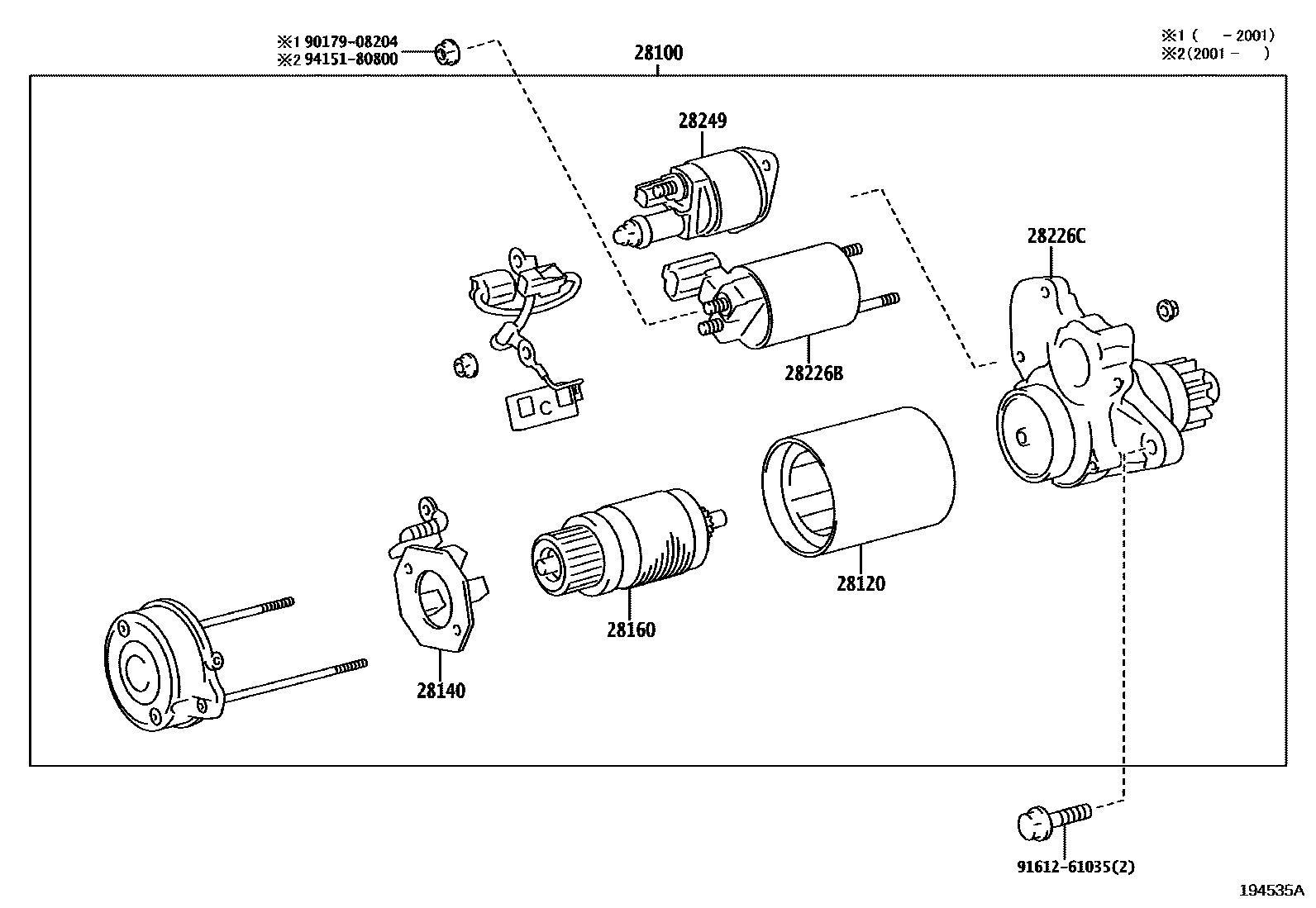

Toyota ALPHARD/VELLFIRE/HV — STARTER

0001 112V 1.7KW 0002 112V 1.7KW 0003 112V 1.7KW

28100STARTER ASSY

main28100-28072i2GRFE..GGH30¥72,300201501-202001

12V 1.7KW

main28100-31260i2GRFKS..GGH30..Q¥72,300201801-202001

12V 1.7KW

main28100-36130i2ARFE..AGH30¥86,800201501-201905

12V 1.7KW

sub28100-36131¥72,300

main28100-36131i2ARFE..AGH30¥72,300201906-202001

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28060i2GRFE..GGH30201501-202001

main28120-28100i2GRFKS..GGH30..ALPHD201801-202001

main28120-36110i2ARFE..AGH30201501-202001

28140HOLDER ASSY, STARTER BRUSH

main28140-36110i2ARFE..AGH30201501-202001

28160ARMATURE ASSY, STARTER

main28160-28040i2GRFE..GGH30¥14,900201501-202001

main28160-36110i2ARFE,2GRFKS..AGH30,GGH30¥13,100201701-202001

main28160-37100i2ARFE..AGH30¥15,700201503-201701

main28160-38070i2ARFE..AGH30¥20,800201501-201503

28226BSTARTER KIT, REPAIR SERVICE

main28226-28060i2GRFE..GGH30201501-202001

main28226-31100i2ARFE..AGH30201501-202001

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-31210i2GRFKS..GGH30..Q201801-202001

main28226-36130i2ARFE..AGH30201501-202001

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-31260i2GRFKS..GGH30..Q¥8,200201801-202001

main28249-36110i2ARFE..AGH30¥8,200201501-202001

9017908204

main90179-08204¥140

9161261035

main91612-61035¥100

9415180800

main94151-80800¥80

10 parts on this diagram · 3 diagrams in section
