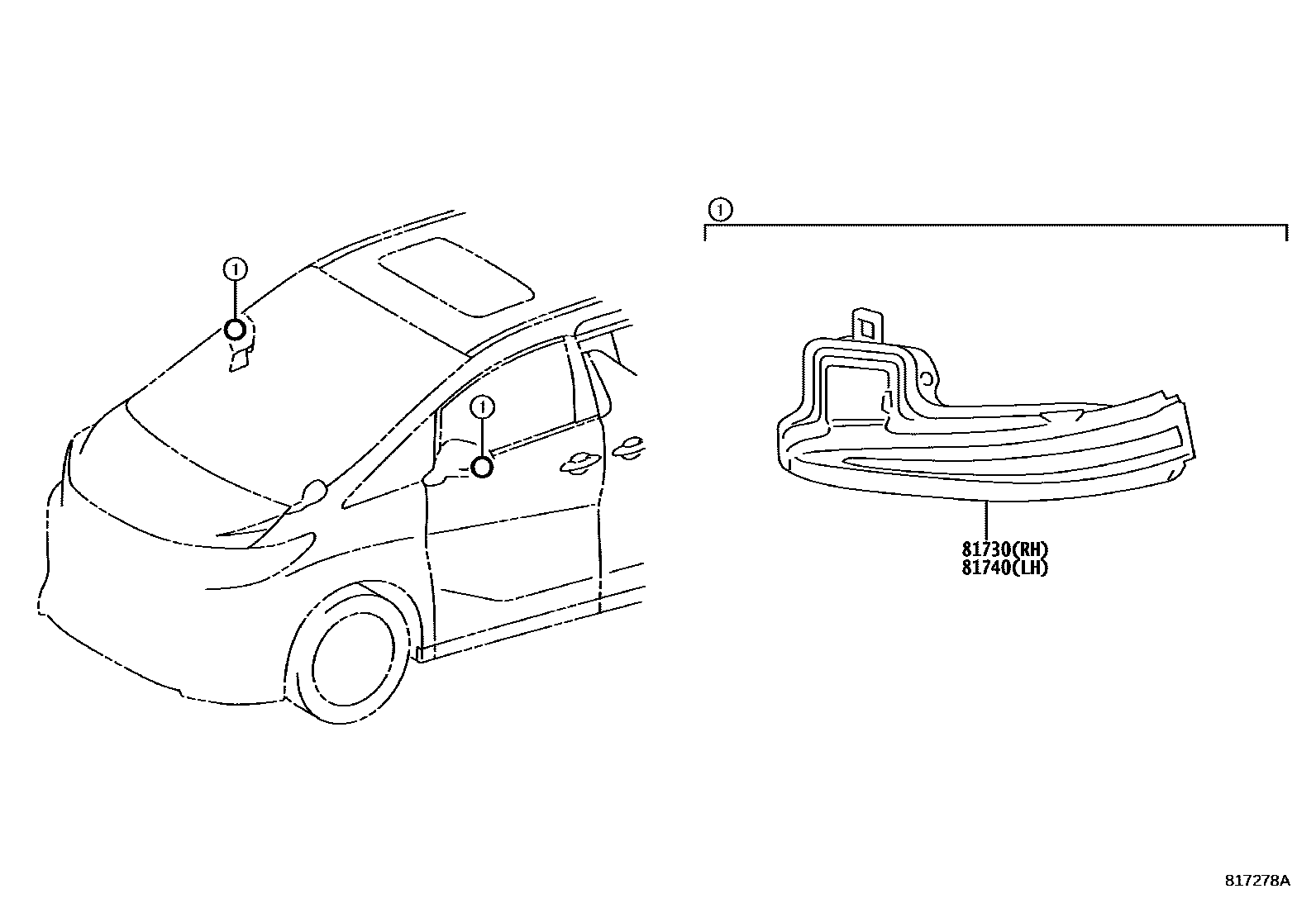

Toyota ALPHARD/VELLFIRE/HV — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-58010iAGH30,AYH30,GGH30¥3,390201501-201801

main81730-58010iGGH30..Q¥3,390201801-201907

main81730-58010iAGH30,AYH30;GGH30..L,R,V¥3,390201801-202001

main81730-58010iAGH30,AYH30,GGH30¥3,390202001

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-58010iAGH30,AYH30,GGH30¥3,390201501-201801

main81740-58010iGGH30..Q¥3,390201801-201907

main81740-58010iAGH30,AYH30;GGH30..L,R,V¥3,390201801-202001

main81740-58010iAGH30,AYH30,GGH30¥3,390202001

2 parts on this diagram · 1 diagram in section
