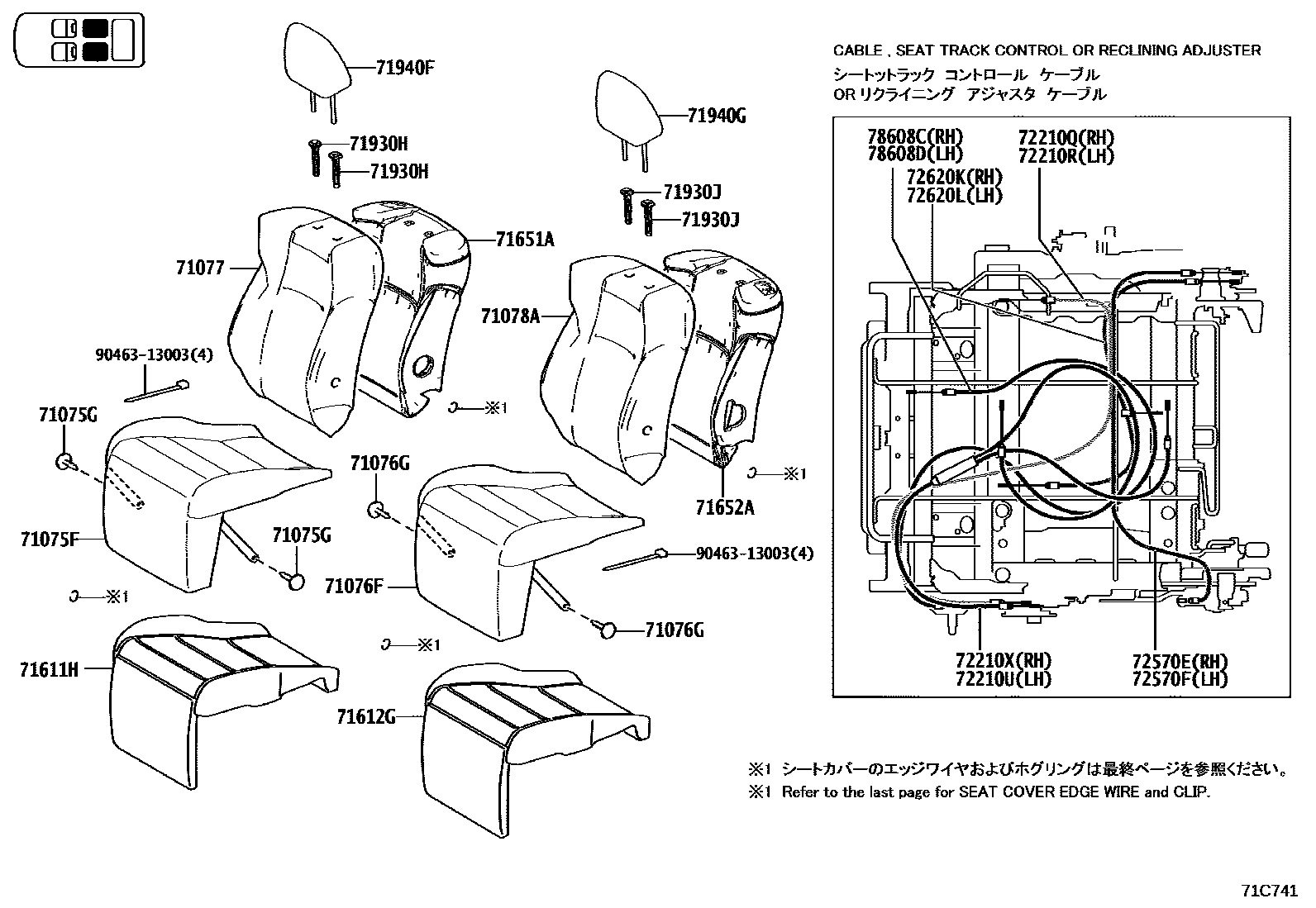

Toyota ALPHARD/VELLFIRE/HV — REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT 0003 1REAR NO.1 SEAT(RH) 0005 1REAR NO.1 SEAT(RH) 0007 1REAR NO.1 SEAT(LH) 0009 1REAR NO.1 SEAT 0011 1REAR NO.1 SEAT(RH) 0013 1REAR NO.1 SEAT(LH) 0015 1REAR NO.1 SEAT 0017 1REAR NO.1 SEAT(LH), W/O(*MWI)0019 1REAR NO.1 SEAT(LH), W(*MWI) 0020 1REAR NO.1 SEAT(LH), W/O(*MWI)0022 1REAR NO.1 SEAT(LH), W(*MWI) 0023 1REAR NO.1 SEAT(RH), W/O(*MWI)0025 1REAR NO.1 SEAT(RH), W(*MWI) 0026 1REAR NO.1 SEAT(RH), W/O(*MWI)0028 1REAR NO.1 SEAT(RH), W(*MWI) 0029 1REAR NO.1 SEAT(RH), W(*MWI) 0030 1REAR NO.1 SEAT(RH) 0031 1REAR NO.1 SEAT(RH) 0032 1REAR NO.1 SEAT(RH) 0033 1REAR NO.1 SEAT(RH) 0034 1REAR NO.1 SEAT(RH) 0035 1REAR NO.1 SEAT(RH) 0036 1REAR NO.1 SEAT(RH) 0037 1REAR NO.1 SEAT(LH) 0038 1REAR NO.1 SEAT(LH) 0039 1REAR NO.1 SEAT(LH) 0040 1REAR NO.1 SEAT(LH) 0041 1REAR NO.1 SEAT(LH) 0042 1REAR NO.2 SEAT 0043 1REAR NO.2 SEAT(RH) 0044 1REAR NO.2 SEAT(LH) 0045 1REAR NO.2 SEAT 0046 1SEAT COVER EDGE WIRE & CLIP

71075FCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main71075-58240-A2iAGH30..G201501-201801

FLAXEN,TRIM0#

main71075-58250-C2iGGH30..Q201501-201801

BLACK,TRIM2#

main71075-58270-A2iAGH30,AYH30,GGH30..ALPHD..(L,Q)201501-201607

FLAXEN,TRIM0#

main71075-58270-C2iAGH30..VFIRE201501-201607

BLACK,TRIM2#

main71075-58271-A3iAGH30,AYH30,GGH30..ALPHD..(L,Q)201607-201801

FLAXEN,TRIM0#

main71075-58271-C3iAGH30..VFIRE201607-201801

BLACK,TRIM2#

main71075-58280-A1iGGH30..V201501-201801

FLAXEN,TRIM0#

main71075-58280-C2iGGH30..V201501-201801

BLACK,TRIM2#

main71075-58410-A2iAGH30..G201801-202001

FLAXEN,TRIM0#

main71075-58410-A3iAGH30..G202001

FLAXEN,TRIM0#

main71075-58420-C3iGGH30..Q201801-201907

BLACK,TRIM2#

main71075-58440-A1iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001

FLAXEN,TRIM0#

main71075-58440-A1iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

FLAXEN,TRIM0#

main71075-58440-A1iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

main71075-58440-C3iAGH30..VFIRE..L201801-202001

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

main71075-58440-C3iAGH30..VFIRE..L201801-202001

BLACK,TRIM2#

main71075-58440-C3iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)202001

BLACK,TRIM2#

main71075-58450-A2iAYH30..V;GGH30..LHD..V201801-202001

FLAXEN,TRIM0#

main71075-58450-A2iAYH30..V,Z;GGH30..LHD..V202001

FLAXEN,TRIM0#

main71075-58450-C1iAYH30..V,Z;GGH30..LHD..V202001

BLACK,TRIM2#

main71075-58450-C1iAYH30..V;GGH30..LHD..V201801-202001

BLACK,TRIM2#

main71075-58460-A2iGGH30..RHD..(V,Z)202001

FLAXEN,TRIM0#

main71075-58460-A2iGGH30..RHD..V201804-202001

FLAXEN,TRIM0#

main71075-58460-C1iGGH30..RHD..V201804-202001

BLACK,TRIM2#

main71075-58460-C1iGGH30..RHD..(V,Z)202001

BLACK,TRIM2#

71075GCLIP, NO.1 SEAT CUSHION COVER(FOR RH SEAT)

main90467-05161iGGH30..Q¥90201808-201907

main90467-05161-A8iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001

FLAXEN,TRIM0#

sub90467-05161¥90

main90467-05161-A8iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

FLAXEN,TRIM0#

sub90467-05161¥90

main90467-05161-A8iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

sub90467-05161¥90

main90467-05161-A8iAGH30,AYH30,GGH30..ALPHD..(L,Q)201501-201801

FLAXEN,TRIM0#

sub90467-05161¥90

main90467-05161-C0iAGH30,GGH30..VFIRE201501-201801

BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C0iAGH30..G201801-201808

BLACK,TRIM0#

sub90467-05161¥90

main90467-05161-C0iAGH30..G201801-201808

BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C0iAGH30..G201801-201808

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C0iAGH30..G201501-201801

BLACK,TRIM0#

sub90467-05161¥90

main90467-05161-C9iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201808-202001

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C9iAGH30..G201808-202001

BLACK,TRIM0#

sub90467-05161¥90

main90467-05161-C9iAGH30..G201808-202001

BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C9iAGH30..G202001

BLACK,TRIM0#

sub90467-05161¥90

main90467-05161-C9iAGH30..G202001

BLACK,TRIM2#

sub90467-05161¥90

71076FCOVER SUB-ASSY, NO.1 SEAT CUSHION, LH

main71076-58240-A1iAGH30..G201501-201801

FLAXEN,TRIM0#

main71076-58270-A2iAGH30,AYH30,GGH30..ALPHD..(L,Q)201501-201607

FLAXEN,TRIM0#

main71076-58270-C2iAGH30..VFIRE201501-201607

BLACK,TRIM2#

main71076-58271-A3iAGH30,AYH30,GGH30..ALPHD..(L,Q)201607-201801

FLAXEN,TRIM0#

main71076-58271-C3iAGH30..VFIRE201607-201801

BLACK,TRIM2#

main71076-58280-A1iGGH30..V201501-201801

FLAXEN,TRIM0#

main71076-58280-C2iGGH30..V201501-201801

BLACK,TRIM2#

main71076-58310-C1iGGH30..Q201501-201801

BLACK,TRIM2#

main71076-58430-A2iAGH30..G201801-202001

FLAXEN,TRIM0#

main71076-58430-A2iAGH30..G202001

FLAXEN,TRIM0#

main71076-58440-C2iGGH30..Q201801-201907

BLACK,TRIM2#

main71076-58460-A1iAYH30..Q201801-202001

FLAXEN,TRIM0#

main71076-58460-A1iAYH30..Q201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

main71076-58460-A1iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001

FLAXEN,TRIM0#

main71076-58460-C3iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201801-202001

BLACK,TRIM2#

main71076-58460-C3iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)202001

BLACK,TRIM2#

main71076-58460-C3iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201801-202001

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

main71076-58470-A2iGGH30..RHD..8FC..V201804-202001

FLAXEN,TRIM0#

main71076-58470-A2iAYH30,GGH30..V,Z202001

FLAXEN,TRIM0#

main71076-58470-A2iAYH30..V;GGH30..6FC..V;GGH30..LHD..V201801-202001

FLAXEN,TRIM0#

main71076-58470-C1iAYH30..V;GGH30..6FC..V;GGH30..LHD..V201801-202001

BLACK,TRIM2#

main71076-58470-C1iAYH30,GGH30..V,Z202001

BLACK,TRIM2#

main71076-58470-C1iGGH30..RHD..8FC..V201804-202001

BLACK,TRIM2#

71076GCLIP, NO.1 SEAT CUSHION COVER(FOR LH SEAT)

main90467-05161iGGH30..Q¥90201808-201907

main90467-05161-A8iAYH30..Q201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

sub90467-05161¥90

main90467-05161-A8iAYH30..Q201801-202001

FLAXEN,TRIM0#

sub90467-05161¥90

main90467-05161-A8iAGH30,AYH30,GGH30..ALPHD..(L,Q)201501-201801

FLAXEN,TRIM0#

sub90467-05161¥90

main90467-05161-A8iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001

FLAXEN,TRIM0#

sub90467-05161¥90

main90467-05161-C0iAGH30..VFIRE201801-201808

BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C0iAGH30..G201501-201801

BLACK,TRIM0#

sub90467-05161¥90

main90467-05161-C0iAGH30..G201501-201801

BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C0iAGH30..G201801-201808

BLACK,TRIM0#

sub90467-05161¥90

main90467-05161-C0iAGH30..G201801-201808

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C9iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201808-202001

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C9iAGH30..G201808-202001

BLACK,TRIM0#

sub90467-05161¥90

main90467-05161-C9iAGH30..G201808-202001

BLACK,TRIM2#

sub90467-05161¥90

main90467-05161-C9iAGH30..G202001

BLACK,TRIM0#

sub90467-05161¥90

main90467-05161-C9iAGH30..G202001

BLACK,TRIM2#

sub90467-05161¥90

71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH

main71077-58220-A2iAGH30..G201501-201801

FLAXEN,TRIM0#

main71077-58230-C0iGGH30..Q201501-201801

BLACK,TRIM2#

main71077-58250-A3iAGH30,AYH30,GGH30..ALPHD..(L,Q)201501-201607

FLAXEN,TRIM0#

main71077-58250-C3iAGH30..VFIRE201501-201607

BLACK,TRIM2#

main71077-58251-A3iAGH30,AYH30,GGH30..ALPHD..(L,Q)201607-201801

FLAXEN,TRIM0#

main71077-58251-C3iAGH30..VFIRE201607-201801

BLACK,TRIM2#

main71077-58260-A2iGGH30..V201501-201801

FLAXEN,TRIM0#

main71077-58260-C3iGGH30..V201501-201801

BLACK,TRIM2#

main71077-58350-A2iAGH30..G201801-202001

FLAXEN,TRIM0#

main71077-58350-A2iAGH30..G202001

FLAXEN,TRIM0#

main71077-58360-C5iGGH30..Q201801-201907

BLACK,TRIM2#

main71077-58380-A2iAYH30..Q201801-202001

FLAXEN,TRIM0#

main71077-58380-A2iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

main71077-58380-A2iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001

FLAXEN,TRIM0#

main71077-58380-C3iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201801-202001

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

main71077-58380-C3iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201801-202001

BLACK,TRIM2#

main71077-58380-C3iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)202001

BLACK,TRIM2#

main71077-58390-A4iAYH30..V;GGH30..LHD..V201801-202001

FLAXEN,TRIM0#

main71077-58390-A4iAYH30..V,Z;GGH30..LHD..V202001

FLAXEN,TRIM0#

main71077-58390-C2iAYH30..V,Z;GGH30..LHD..V202001

BLACK,TRIM2#

main71077-58390-C2iAYH30..V;GGH30..LHD..V201801-202001

BLACK,TRIM2#

main71077-58410-A2iGGH30..RHD..V201804-202001

FLAXEN,TRIM0#

main71077-58410-A2iGGH30..RHD..(V,Z)202001

FLAXEN,TRIM0#

main71077-58410-C1iGGH30..RHD..V201804-202001

BLACK,TRIM2#

main71077-58410-C1iGGH30..RHD..(V,Z)202001

BLACK,TRIM2#

71078ACOVER SUB-ASSY, REAR NO.1 SEATBACK, LH

main71078-58220-A2iAGH30..G201501-201801

FLAXEN,TRIM0#

main71078-58230-C0iGGH30..Q201501-201801

BLACK,TRIM2#

main71078-58250-A3iAGH30,AYH30,GGH30..ALPHD..(L,Q)201501-201607

FLAXEN,TRIM0#

main71078-58250-C3iAGH30..VFIRE201501-201607

BLACK,TRIM2#

main71078-58251-A3iAGH30,AYH30,GGH30..ALPHD..(L,Q)201607-201801

FLAXEN,TRIM0#

main71078-58251-C3iAGH30..VFIRE201607-201801

BLACK,TRIM2#

main71078-58260-A2iGGH30..V201501-201801

FLAXEN,TRIM0#

main71078-58260-C3iGGH30..V201501-201801

BLACK,TRIM2#

main71078-58350-A2iAGH30..G201801-202001

FLAXEN,TRIM0#

main71078-58350-A2iAGH30..G202001

FLAXEN,TRIM0#

main71078-58360-C3iGGH30..Q201801-201907

BLACK,TRIM2#

main71078-58380-A2iAYH30..Q201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

main71078-58380-A2iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

FLAXEN,TRIM0#

main71078-58380-A2iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001

FLAXEN,TRIM0#

main71078-58380-C3iAGH30..VFIRE..L201801-202001

BLACK,TRIM2#

main71078-58380-C3iAGH30..VFIRE..L201801-202001

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

main71078-58380-C3iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)202001

BLACK,TRIM2#

main71078-58390-A4iAYH30,GGH30..V,Z202001

FLAXEN,TRIM0#

main71078-58390-A4iAYH30..V;GGH30..6FC..V;GGH30..LHD..V201801-202001

FLAXEN,TRIM0#

main71078-58390-A4iGGH30..RHD..8FC..V201804-202001

FLAXEN,TRIM0#

main71078-58390-C2iGGH30..RHD..8FC..V201804-202001

BLACK,TRIM2#

main71078-58390-C2iAYH30,GGH30..V,Z202001

BLACK,TRIM2#

main71078-58390-C2iAYH30..V;GGH30..6FC..V;GGH30..LHD..V201801-202001

BLACK,TRIM2#

71611HPAD, REAR NO.1 SEAT CUSHION, RH

main71611-58050iAGH30,GGH30..G,Q¥13,500201801-202001

main71611-58050iAGH30,GGH30..G,Q¥13,500201501-201801

main71611-58050iAGH30..G¥13,500202001

main71611-58060iGGH30..L;AGH30,AYH30..L,Q¥13,500201501-201801

main71611-58070iAYH30..V;GGH30..LHD..V¥17,300201801-202001

main71611-58070iGGH30..V¥17,300201501-201801

main71611-58070iAYH30..V,Z;GGH30..LHD..V¥17,300202001

main71611-58080iAYH30..Q¥13,500201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT)

main71611-58080iAYH30..Q¥13,500201801-202001

THAI SPEC, WITHOUT(REAR SEAT)

main71611-58080iAGH30,AYH30,GGH30..L,Q,R,S¥13,500202001

main71611-58090iGGH30..RHD..(V,Z)¥12,600202001

main71611-58090iGGH30..RHD..V¥12,600201804-202001

71612GPAD, REAR NO.1 SEAT CUSHION, LH

main71612-58050iAGH30,GGH30..G,Q¥13,500201801-202001

main71612-58050iAGH30,GGH30..G,Q¥13,500201501-201801

main71612-58050iAGH30..G¥13,500202001

main71612-58060iGGH30..L;AGH30,AYH30..L,Q¥13,500201501-201801

main71612-58070iGGH30..RHD..8FC..V¥17,300201804-202001

main71612-58070iAYH30..V;GGH30..6FC..V;GGH30..LHD..V¥17,300201801-202001

main71612-58070iAYH30,GGH30..V,Z¥17,300202001

main71612-58070iGGH30..V¥17,300201501-201801

main71612-58080iAGH30..VFIRE..L¥13,500201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT)

main71612-58080iGGH30..L,R;AGH30,AYH30..L,Q,S¥13,500201801-202001

THAI SPEC, WITHOUT(REAR SEAT)

main71612-58080iAGH30,AYH30,GGH30..L,Q,R,S¥13,500202001

71651APAD, REAR NO.1 SEATBACK, RH

main71651-58040iAGH30,GGH30..G,Q¥11,200201501-201801

main71651-58040iAGH30..G¥11,200202001

main71651-58040iAGH30,GGH30..G,Q¥11,200201801-202001

main71651-58050iGGH30..L;AGH30,AYH30..L,Q¥11,200201501-201801

main71651-58060iAYH30..V,Z;GGH30..LHD..V¥11,200202001

main71651-58060iGGH30..V¥11,200201501-201801

main71651-58060iAYH30..V;GGH30..LHD..V¥11,200201801-202001

main71651-58070iAYH30..Q¥11,200201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT)

main71651-58070iAYH30..Q¥11,200201801-202001

THAI SPEC, WITHOUT(REAR SEAT)

main71651-58070iAGH30,AYH30,GGH30..L,Q,R,S¥11,200202001

main71651-58080iGGH30..RHD..(V,Z)¥11,200202001

main71651-58080iGGH30..RHD..V¥11,200201804-202001

71652APAD, REAR NO.1 SEATBACK, LH

main71652-58040iAGH30,GGH30..G,Q¥11,200201801-202001

main71652-58040iAGH30..G¥11,200202001

main71652-58040iAGH30,GGH30..G,Q¥11,200201501-201801

main71652-58050iGGH30..L;AGH30,AYH30..L,Q¥11,200201501-201801

main71652-58060iGGH30..RHD..8FC..V¥11,200201804-202001

main71652-58060iAYH30..V;GGH30..6FC..V;GGH30..LHD..V¥11,200201801-202001

main71652-58060iAYH30,GGH30..V,Z¥11,200202001

main71652-58060iGGH30..V¥11,200201501-201801

main71652-58070iAGH30,AYH30,GGH30..L,Q,R,S¥11,200202001

main71652-58070iGGH30..L,R;AGH30,AYH30..L,Q,S¥11,200201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT)

main71652-58070iGGH30..L,R;AGH30,AYH30..L,Q,S¥11,200201801-202001

THAI SPEC, WITHOUT(REAR SEAT)

71930HSUPPORT ASSY, NO.1 SEAT HEADREST, RH

main71930-44020-21iGGH30..V;AGH30..VFIRE201710-201801

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iGGH30..Q201801-201907

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iAYH30..V;GGH30..LHD..V;GGH30..6FC..(R,V);AGH30,AYH30..VFIRE..(L,S)201801-202001

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iAYH30..V;GGH30..LHD..V;GGH30..6FC..(R,V);AGH30,AYH30..VFIRE..(L,S)201801-202001

W(LOCK),THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iGGH30..RHD..8FC..V201804-202001

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iAYH30..V,Z;GGH30..6FC;GGH30..8FC..(V,Z);AGH30,AYH30..VFIRE..(L,R,S)202001-202204

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iAYH30..V,Z;GGH30..6FC;GGH30..8FC..(V,Z);AGH30,AYH30..VFIRE..(L,R,S)202001-202204

W(LOCK),THAILAND SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAGH30..G201501-201801

W(LOCK),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAYH30..Q,V;GGH30..8FC..L;GGH30..LHD..V;GGH30..ALPHD..6FC;AGH30,AYH30..ALPHD..L201801-202001

W(LOCK),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAYH30..Q,V;GGH30..8FC..L;GGH30..LHD..V;GGH30..ALPHD..6FC;AGH30,AYH30..ALPHD..L201801-202001

W(LOCK),THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iGGH30..RHD..8FC..V201804-202001

W(LOCK),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAGH30..G202001-202204

W(LOCK),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAGH30..G202001-202204

W(LOCK),THAILAND SPEC&THAILAND SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-C0iGGH30..V;AGH30..VFIRE201501-201710

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-52030-A8iAGH30..G202204

W(LOCK)&W(BUTTON),FLAXEN,TRIM0#

sub71930-52030¥950

main71930-52030-C4iAYH30..V,Z;GGH30..6FC;GGH30..8FC..(V,Z);AGH30,AYH30..VFIRE..(L,R,S)202204

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-52030¥950

main71931-42020-A9iAGH30..G202204

W(LOCK)&W/O(BUTTON),FLAXEN,TRIM0#

sub71931-42020¥590

main71931-47010-02iAGH30..G201801-202001

W/O(LOCK),FLAXEN,TRIM0#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-02iAGH30..G202001-202204

W/O(LOCK),FLAXEN,TRIM0#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-02iAGH30..G201501-201801

W/O(LOCK),FLAXEN,TRIM0#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-C0iGGH30..Q201501-201710

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-C8iGGH30..Q201801-201907

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-C8iGGH30..Q201710-201801

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

71930JSUPPORT ASSY, NO.1 SEAT HEADREST, LH

main71930-44020-21iGGH30..V;AGH30..VFIRE201710-201801

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iGGH30..Q201801-201907

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iAYH30..V;GGH30..LHD..V;GGH30..6FC..(R,V);AGH30,AYH30..VFIRE..(L,S)201801-202001

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iAYH30..V;GGH30..LHD..V;GGH30..6FC..(R,V);AGH30,AYH30..VFIRE..(L,S)201801-202001

W(LOCK),THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iGGH30..RHD..8FC..V201804-202001

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iAYH30..V,Z;GGH30..6FC;GGH30..8FC..(V,Z);AGH30,AYH30..VFIRE..(L,R,S)202001-202204

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-21iAYH30..V,Z;GGH30..6FC;GGH30..8FC..(V,Z);AGH30,AYH30..VFIRE..(L,R,S)202001-202204

W(LOCK),THAILAND SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V,Z)202001-202204

W(LOCK),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAGH30,AYH30,GGH30..ALPHD..(L,Q,V)201501-201801

W(LOCK),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V,Z)202001-202204

W(LOCK),THAILAND SPEC&THAILAND SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAGH30..G201801-202001

W(LOCK),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iAGH30..G201801-202001

W(LOCK),THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-A7iGGH30..RHD..8FC..V201804-202001

W(LOCK),FLAXEN,TRIM0#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-C0iGGH30..Q201501-201710

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-52030-A8iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V,Z)202204

W(LOCK)&W(BUTTON),FLAXEN,TRIM0#

sub71930-52030¥950

main71930-52030-C4iAYH30..V,Z;GGH30..6FC;GGH30..8FC..(V,Z);AGH30,AYH30..VFIRE..(L,R,S)202204

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-52030¥950

main71931-42020-A9iAGH30..G202204

W(LOCK)&W/O(BUTTON),FLAXEN,TRIM0#

sub71931-42020¥590

main71931-47010-02iAGH30..G202001-202204

W/O(LOCK),FLAXEN,TRIM0#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-02iAGH30..G201501-201801

W/O(LOCK),FLAXEN,TRIM0#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-02iAGH30..G201801-202001

W/O(LOCK),FLAXEN,TRIM0#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-C0iGGH30..Q201501-201710

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-C8iGGH30..Q201801-201907

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-C8iGGH30..Q201710-201801

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

71940FHEADREST ASSY, NO.1 SEAT, RH

main71940-58330-A2iAGH30..G201501-201801

FLAXEN,TRIM0#

main71940-58340-A1iAGH30..G201801-202001

FLAXEN,TRIM0#

main71940-58340-A1iAGH30..G202001

FLAXEN,TRIM0#

main71940-58340-C3iGGH30..Q201501-201801

BLACK,TRIM2#

main71940-58370-A0iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001

FLAXEN,TRIM0#

main71940-58370-A0iAYH30..Q201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

main71940-58370-A0iAYH30..Q201801-202001

FLAXEN,TRIM0#

main71940-58370-C0iAGH30..VFIRE..L201801-202001

BLACK,TRIM2#

main71940-58370-C0iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,S)202001

BLACK,TRIM2#

main71940-58370-C0iAGH30..VFIRE..L201801-202001

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

main71940-58430-A1iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q)201501-201607

FLAXEN,TRIM0#

sub71940-58490¥74,600

main71940-58430-C1iAGH30..VFIRE201501-201607

BLACK,TRIM2#

sub71940-58490¥74,600

main71940-58431-C2iAGH30..VFIRE201607-201801

BLACK,TRIM2#

sub71940-58491¥54,000

main71940-58490-A0iGGH30..LHD..L201501-201607

FLAXEN,TRIM0#

main71940-58491-A1iAGH30,AYH30,GGH30..ALPHD..(L,Q)201607-201801

FLAXEN,TRIM0#

main71940-58500-A0iGGH30..V201501-201801

FLAXEN,TRIM0#

main71940-58500-A1iAYH30..RHD..V202001-202105

FLAXEN,TRIM0#

main71940-58500-A1iAYH30..V;GGH30..6FC..V;GGH30..LHD..V201801-202001

FLAXEN,TRIM0#

main71940-58500-A1iGGH30..RHD..8FC..V201804-202001

FLAXEN,TRIM0#

main71940-58500-A1iGGH30..V,Z;AYH30..LHD..(V,Z)202001

FLAXEN,TRIM0#

main71940-58500-C0iGGH30..V201501-201801

BLACK,TRIM2#

main71940-58500-C1iAYH30..RHD..V202001-202105

BLACK,TRIM2#

main71940-58500-C1iGGH30..RHD..8FC..V201804-202001

BLACK,TRIM2#

main71940-58500-C1iAYH30..V;GGH30..6FC..V;GGH30..LHD..V201801-202001

BLACK,TRIM2#

main71940-58500-C1iGGH30..V,Z;AYH30..LHD..(V,Z)202001

BLACK,TRIM2#

main71940-58540-C3iGGH30..Q201801-201907

BLACK,TRIM2#

71940GHEADREST ASSY, NO.1 SEAT, LH

main71940-58330-A2iAGH30..G201501-201801

FLAXEN,TRIM0#

main71940-58340-A1iAGH30..G202001

FLAXEN,TRIM0#

main71940-58340-A1iAGH30..G201801-202001

FLAXEN,TRIM0#

main71940-58340-C3iGGH30..Q201501-201801

BLACK,TRIM2#

main71940-58370-A0iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001

FLAXEN,TRIM0#

main71940-58370-A0iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

FLAXEN,TRIM0#

main71940-58370-A0iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT),FLAXEN,TRIM0#

main71940-58370-C0iAGH30..VFIRE..L201801-202001

THAI SPEC, WITHOUT(REAR SEAT),BLACK,TRIM2#

main71940-58370-C0iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,S)202001

BLACK,TRIM2#

main71940-58370-C0iAGH30..VFIRE..L201801-202001

BLACK,TRIM2#

main71940-58430-A1iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q)201501-201607

FLAXEN,TRIM0#

sub71940-58490¥74,600

main71940-58430-C1iAGH30..VFIRE201501-201607

BLACK,TRIM2#

sub71940-58490¥74,600

main71940-58431-C2iAGH30..VFIRE201607-201801

BLACK,TRIM2#

sub71940-58491¥54,000

main71940-58490-A0iGGH30..LHD..L201501-201607

FLAXEN,TRIM0#

main71940-58491-A1iAGH30,AYH30,GGH30..ALPHD..(L,Q)201607-201801

FLAXEN,TRIM0#

main71940-58500-A0iGGH30..V201501-201801

FLAXEN,TRIM0#

main71940-58500-A1iGGH30..V,Z;AYH30..LHD..(V,Z)202001

FLAXEN,TRIM0#

main71940-58500-A1iGGH30..RHD..8FC..V201804-202001

FLAXEN,TRIM0#

main71940-58500-A1iAYH30..V;GGH30..6FC..V;GGH30..LHD..V201801-202001

FLAXEN,TRIM0#

main71940-58500-A1iAYH30..RHD..V202001-202105

FLAXEN,TRIM0#

main71940-58500-C0iGGH30..V201501-201801

BLACK,TRIM2#

main71940-58500-C1iGGH30..V,Z;AYH30..LHD..(V,Z)202001

BLACK,TRIM2#

main71940-58500-C1iAYH30..V;GGH30..6FC..V;GGH30..LHD..V201801-202001

BLACK,TRIM2#

main71940-58500-C1iGGH30..RHD..8FC..V201804-202001

BLACK,TRIM2#

main71940-58500-C1iAYH30..RHD..V202001-202105

BLACK,TRIM2#

main71940-58540-C3iGGH30..Q201801-201907

BLACK,TRIM2#

72210QCABLE ASSY, NO.1 SEAT SLIDE, RH

main72210-58240iAGH30,GGH30..G,Q¥1,380201501-201801

main72210-58240iAGH30..G¥1,380201801-202001

main72210-58240iGGH30..Q¥1,380201801-201907

main72210-58240iAGH30..G¥1,380202001

main72210-58270iAYH30..Q¥1,090201801-202001

THAI SPEC, WITHOUT(REAR SEAT)

main72210-58270iGGH30..L;AGH30,AYH30..L,Q¥1,090201501-201801

main72210-58270iGGH30..L,R;AGH30,AYH30..L,Q,S¥1,090201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT)

main72210-58270iAGH30,AYH30,GGH30..L,Q,R,S¥1,090202001

72210RCABLE ASSY, NO.1 SEAT SLIDE, LH

main72210-58240iGGH30..Q¥1,380201801-201907

main72210-58240iAGH30..G¥1,380201801-202001

main72210-58240iAGH30..G¥1,380202001

main72210-58240iAGH30,GGH30..G,Q¥1,380201501-201801

main72210-58270iAYH30..Q¥1,090201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT)

main72210-58270iAYH30..Q¥1,090201801-202001

THAI SPEC, WITHOUT(REAR SEAT)

main72210-58270iAGH30,AYH30,GGH30..L,Q,R,S¥1,090202001

main72210-58270iGGH30..L;AGH30,AYH30..L,Q¥1,090201501-201801

72210UCABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

main72210-58250iAGH30,GGH30..G,Q¥1,750201501-201801

main72210-58250iGGH30..Q¥1,750201801-201907

main72210-58250iAGH30..G¥1,750201801-202001

main72210-58250iAGH30..G¥1,750202001

main72210-58290iGGH30..L,R;AGH30,AYH30..L,Q,S¥2,160201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT)

main72210-58290iGGH30..L,R;AGH30,AYH30..L,Q,S¥2,160201801-202001

THAI SPEC, WITHOUT(REAR SEAT)

main72210-58290iGGH30..L;AGH30,AYH30..L,Q¥2,160201501-201801

main72210-58290iAGH30,AYH30,GGH30..L,Q,R,S¥2,160202001

72210XCABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

main72210-58250iGGH30..Q¥1,750201801-201907

main72210-58250iAGH30,GGH30..G,Q¥1,750201501-201801

main72210-58250iAGH30..G¥1,750201801-202001

main72210-58250iAGH30..G¥1,750202001

main72210-58290iGGH30..L,R;AGH30,AYH30..L,Q,S¥2,160201801-202001

THAI SPEC, WITHOUT(REAR SEAT)

main72210-58290iAYH30..Q¥2,160201801-202001

THAILAND SPEC&THAI SPEC, WITHOUT(REAR SEAT)

main72210-58290iGGH30..L;AGH30,AYH30..L,Q¥2,160201501-201801

main72210-58290iAGH30,AYH30,GGH30..L,Q,R,S¥2,160202001

72570ECABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

main72570-58020iAGH30,GGH30..G,Q¥1,250201501-201801

main72570-58020iGGH30..Q¥1,250201801-201907

main72570-58020iAGH30..G¥1,250201801-202001

main72570-58020iAGH30..G¥1,250202001

72570FCABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, LH

main72570-58020iAGH30..G¥1,250202001

main72570-58020iAGH30,GGH30..G,Q¥1,250201501-201801

main72570-58020iGGH30..Q¥1,250201801-201907

main72570-58020iAGH30..G¥1,250201801-202001

72620KCABLE ASSY, NO.1 SEAT WALK-IN, RH

main72210-58290iGGH30..V¥2,160201501-201801

main72210-58290iAYH30..V;GGH30..LHD..V¥2,160201801-202001

main72210-58290iAYH30..V,Z;GGH30..LHD..V¥2,160202001

main72620-58020iAGH30,GGH30..G,Q¥1,250201501-201801

main72620-58020iAGH30,GGH30..G,Q¥1,250201801-202001

main72620-58020iAGH30..G¥1,250202001

72620LCABLE ASSY, NO.1 SEAT WALK-IN, LH

main72210-58290iGGH30..RHD..8FC..V¥2,160201804-202001

main72210-58290iGGH30..V¥2,160201501-201801

main72210-58290iAYH30..V;GGH30..6FC..V;GGH30..LHD..V¥2,160201801-202001

main72210-58290iAYH30,GGH30..V,Z¥2,160202001

main72620-58020iAGH30,GGH30..G,Q¥1,250201501-201801

main72620-58020iAGH30..G¥1,250202001

main72620-58020iAGH30,GGH30..G,Q¥1,250201801-202001

78608CCABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR RH SEAT)

main78608-58020iAGH30,GGH30..G,Q¥1,790201501-201801

main78608-58020iGGH30..Q¥1,790201801-201907

main78608-58020iAGH30..G¥1,790201801-202001

main78608-58020iAGH30..G¥1,790202001

78608DCABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR LH SEAT)

main78608-58020iAGH30..G¥1,790201801-202001

main78608-58020iAGH30,GGH30..G,Q¥1,790201501-201801

main78608-58020iGGH30..Q¥1,790201801-201907

main78608-58020iAGH30..G¥1,790202001

9046313003

main90463-13003¥180

25 parts on this diagram · 34 diagrams in section
