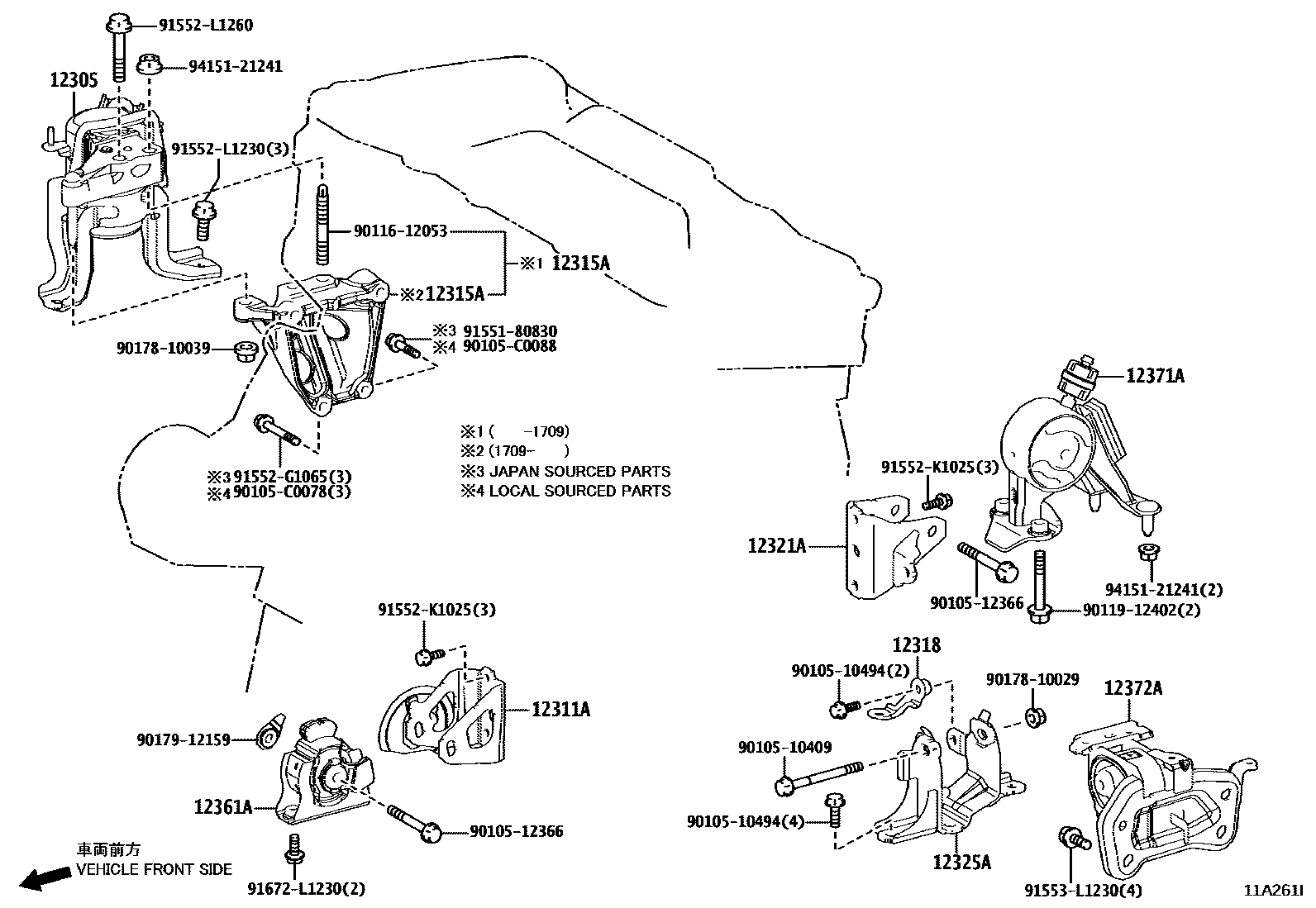

Toyota ALPHARD/VELLFIRE/HV — MOUNTING

0001 1 0002 1 0003 1 0004 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-31060i2GRFE..GGH30¥12,800201501-202001

main12305-31110i2GRFKS..GGH30..ALPHD¥12,800201801-202001

main12305-36070i2ARFE..AGH30¥11,600201501-202001

main12305-36080i2ARFXE..AYH30¥11,600201501-202001

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28301i2ARFXE..AYH30¥2,370201501-202001

main12311-31180i2GRFE..GGH30¥3,420201501-202001

main12311-31260i2GRFKS..GGH30..Q¥3,420201801-202001

main12311-36150i2ARFE..AGH30¥2,110201501-202001

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31130i2GRFE..GGH30¥6,400201501-202001

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0V030i2AR#..AGH30,AYH30201501-201709

(L),*347

sub12315-0V031

sub90116-12053¥310

main12315-0V031i2AR#..AGH30,AYH30201709-202001

(L),*347

main12315-31160i2GRFKS..GGH30..Q¥6,300201801-202001

main12315-36010i2AR#..AGH30,AYH30¥4,110201501-201709

(J),*347

sub12315-36011¥3,720

sub90116-12053¥310

main12315-36011i2AR#..AGH30,AYH30¥3,720201709-202001

(J),*347

main12315-36011i2AR#..AGH30,AYH30¥3,720201812-202001

*524

main12315-36011i2AR#..AGH30,AYH30¥3,720202001

12318STAY, ENGINE MOUNTING, LH

main12318-36010i2ARFE..AGH30¥450201501-202001

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-31170i2GRFE..GGH30¥3,160201501-202001

main12321-31231i2GRFKS..GGH30..Q¥3,160201801-202001

main12321-36090i2ARFXE..AYH30¥2,370201501-202001

main12321-36130i2ARFE..AGH30¥1,850201501-202001

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-31020i2GRFE..GGH30¥3,160201501-202001

main12325-31090i2GRFKS..GGH30..Q¥5,900201801-202001

main12325-36070i2ARFXE..AYH30¥2,640201501-202001

main12325-36090i2ARFE..AGH30¥2,370201501-202001

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31460i2GRFE..GGH30¥6,300201501-202001

main12361-31530i2GRFKS..GGH30..Q¥6,300201801-202001

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-36190i2ARFE..AGH30¥4,920201501-202001

main12361-36200i2ARFXE..AYH30¥5,800201501-202001

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31340i2GRFE..GGH30¥6,600201501-202001

main12371-31450i2GRFKS..GGH30¥6,600201801-202001

main12371-36150i2ARFE..AGH30¥7,400201501-202001

main12371-36170i2ARFXE..AYH30¥6,600201501-202001

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-31080i2GRFE..GGH30¥7,000201501-202001

main12372-31130i2GRFKS..GGH30..Q¥7,000201801-202001

main12372-36090i2ARFE..AGH30¥6,600201501-202001

main12372-36100i2ARFXE..AYH30¥7,000201501-202001

9010510409

main90105-10409¥270

9010510494

main90105-10494¥100

9010512366

main90105-12366¥240

90105C0078

main90105-C0078

90105C0088

main90105-C0088

9011612053

main90116-12053¥310

9011912402

main90119-12402¥270

9017810029

main90178-10029¥100

9017810039

main90178-10039¥100

9017912159

main90179-12159¥180

9155180830

main91551-80830¥80

91552G1065

main91552-G1065¥160

91552K1025

main91552-K1025¥100

91552L1230

main91552-L1230¥160

91552L1260

main91552-L1260¥240

91553L1230

main91553-L1230¥210

91672L1230

main91672-L1230¥190

9415121241

main94151-21241¥100

29 parts on this diagram · 4 diagrams in section
